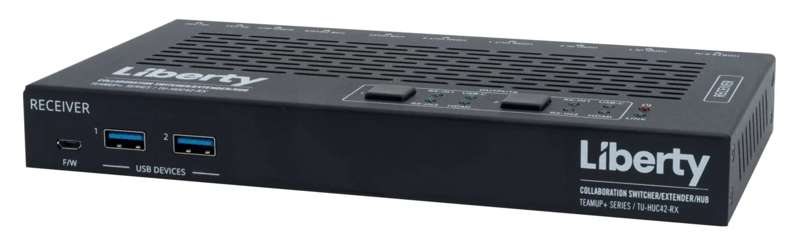

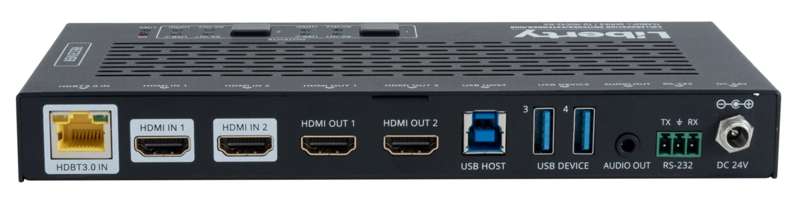

TeamUp+ Series Dual or Single Screen Collaboration Switcher / Extender / Hub
TeamUp+ 18G BYOM collaboration switcher and extender receiver (RX) with uncompressed 4K60 video and USBextension over HDBaseT 3.0.
Key Features
- 18G BYOM collaboration switcher / extender RX with uncompressed 4K60 over HDBaseT 3.0
- Switch AV and USB sources on both sides of the HDBaseT circuit, including dual-screen support from the RX for BYOM applications
- Dual AV plus USB host inputs on RX support dual-screen output for room PCs located at the display location
- Supports uncompressed HDMI 2.0 4K60 4:4:4 video up to 40m or 4K30 up to 70m, along with USB 2.0 High Speed with isochronous support for maximum camera compatibility over HDBaseT 3.0 when Cat6A U/FTP or higher cabling is used
- Switch between HDMI and USB-C on TX or RX. USB-C supports full functionality including AV (ALT-DP), USB data, Ethernet, and device charging power
-
USB 3.0 hub with automatic switching for BYOM environments
- Supports auto switching, TCP/IP, or RS-232 control
-
EDID and HDCP management options built into the WebGUI
- Built-in display control with scheduling capability for powering connected displays on and off
- TU-HUC42-KIT includes TX (TU-HUC42-TX) and RX (TU-HUC42-RX); components may also be purchased individually
- For reliable, full-featured performance and support of all HDBaseT 3.0 resolutions and capabilities, shielded Cat6A U/FTP or above cabling must be used
- TAA Compliant
Product Overview
The TeamUp+ Series Dual or Single Screen Collaboration Switcher / Extender / Hub RX is designed to serve asthe display-side endpoint in modern Bring Your Own Meeting (BYOM) environments. It enables seamlessswitching of both AV and USB signals between connected sources while delivering uncompressed video andreliable USB performance over HDBaseT 3.0. This makes it ideal for conference rooms, boardrooms, andcollaboration spaces that require flexible source selection and high-quality visual output.
With support for uncompressed HDMI 2.0 video up to 4K60 4:4:4, the RX ensures exceptional image qualityfor presentations, video conferencing, and content sharing. Dual-screen support allows room PCs located atthe display to drive two displays simultaneously, enabling extended desktops, side-by-side content viewing,or presentation plus collaboration layouts. USB-C connectivity further simplifies user interaction byproviding a single-cable interface that carries video, USB data, Ethernet, and device charging power.
Designed for professional AV deployments, the RX supports automatic switching as well as TCP/IP andRS-232 control, allowing easy integration into managed room systems. Built-in EDID and HDCP managementthrough the WebGUI ensures compatibility with a wide range of sources and displays, while integrated displaycontrol with scheduling helps reduce energy consumption by automatically powering displays on and off.When deployed with recommended shielded Cat6A U/FTP cabling, the TeamUp+ RX delivers dependable,full-featured HDBaseT 3.0 performance for enterprise, education, and government collaborationenvironments.
