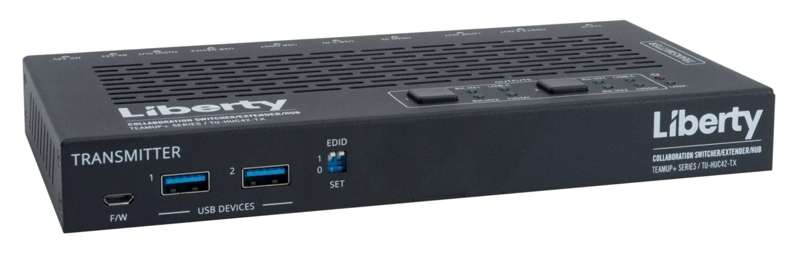

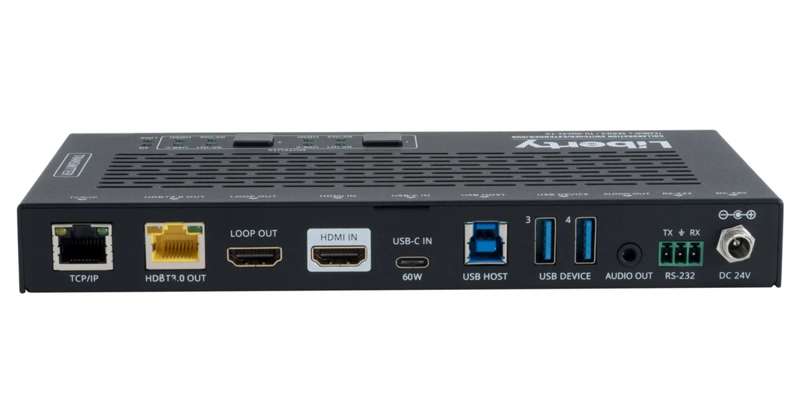

TeamUp+ Series Dual or Single Screen Collaboration Switcher / Extender / Hub
TeamUp+ 18G BYOM collaboration switcher and extender featuring uncompressed 4K60 video and USBextension over HDBaseT 3.0 for modern meeting and collaboration environments.
Key Features
- 18G BYOM collaboration switcher / extender TX with uncompressed 4K60 over HDBaseT 3.0
- Switch AV and USB sources on both sides of the HDBaseT circuit, including dual-screen support from the RX for BYOM applications
- Dual AV plus USB host inputs on RX support dual-screen output for room PCs located at the display location
- Supports uncompressed HDMI 2.0 4K60 4:4:4 video up to 40m or 4K30 up to 70m, plus USB 2.0 High Speed with isochronous support for maximum camera compatibility over HDBaseT 3.0 when Cat6A U/FTP or higher cabling is used
- Switch between HDMI and USB-C on TX or RX. USB-C supports full functionality including AV (ALT-DP), USB data, Ethernet, and device charging power
-
USB 3.0 hub with automatic switching for BYOM environments
- Supports auto switching, TCP/IP, or RS-232 control
-
EDID and HDCP management options built into the WebGUI
- Built-in display control with scheduling capability for powering connected displays on and off
- TU-HUC42-KIT includes TX (TU-HUC42-TX) and RX (TU-HUC42-RX); components may also be purchased individually
- For reliable, full-featured performance and support of all HDBaseT 3.0 resolutions and capabilities, shielded Cat6A U/FTP or above cabling must be used
- TAA Compliant
Product Overview
The TeamUp+ Series Dual or Single Screen Collaboration Switcher / Extender / Hub is designed to simplifyBring Your Own Meeting (BYOM) environments by seamlessly integrating AV switching, USB extension,and collaboration hub functionality into a single HDBaseT 3.0–based solution. It enables users to connectlaptops, room PCs, and USB peripherals to one or two displays with minimal interaction, while maintaininguncompressed video quality and reliable USB performance over long distances.
With support for uncompressed HDMI 2.0 video up to 4K60 4:4:4, the system delivers pristine image qualityfor presentations, video conferencing, and content sharing. Dual-screen support allows meeting spaces todisplay extended desktops or multiple content sources simultaneously—ideal for executive boardrooms,training rooms, and collaboration spaces that demand flexibility. USB-C connectivity further enhances easeof use by providing a single-cable connection that carries video, USB data, Ethernet, and device charging,reducing desktop clutter and setup time.
Designed for professional AV deployments, the TeamUp+ platform supports robust control options includingautomatic switching, TCP/IP, and RS-232, along with built-in EDID and HDCP management through anintuitive WebGUI. Integrated display control with scheduling capabilities helps reduce energy consumptionand ensures displays are powered on or off as needed. When deployed with recommended shielded Cat6AU/FTP cabling, the system provides dependable performance across the full range of HDBaseT 3.0capabilities, making it a scalable and future-ready solution for enterprise, education, and governmentcollaboration environments.
