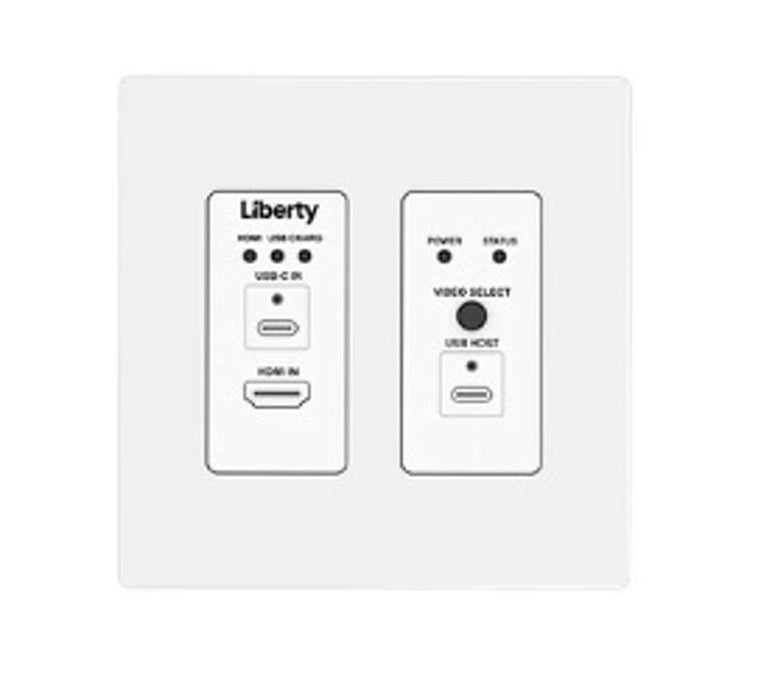

Liberty AV Solutions DigiIP 5100 Series Wall Plate AV over IP Encoder w/ PoE

SKU: LIBIPEX5101UDWP

MSKU: IPEX5101UD-WP

Sale Sale
Original price $1,311.50
Original price $1,311.50 - Original price $1,311.50
Original price $1,311.50
Current price $1,180.35
$1,180.35 - $1,180.35
Current price $1,180.35
Call to Order

Free shipping on all orders.

Typically ships in 2–4 days

Specifications

Use case: Education
Request a custom quote >

DigiIP 5100 Series Wall Plate AV over IP Encoder w/ PoE

5100 Series 4K60 4:4:4 Dual Input HDMI with USB & USB‑C — Dual‑Gang Auto‑Switching Wall Plate Encoder with integrated Dante audio support.

Key Features

  • Fully routable 2‑gang, 2‑input wall plate format encoder operating over a 1Gbps network
  • Primary inputs include HDMI and USB‑C
    • The “USB‑C” input supports video via ALT‑DP, USB data, and device power when used with optional power supply
    • The “USB Host” USB‑C port supports USB data only and is used with the HDMI input
  • Simple setup and configuration using Liberty’s Arranger software
  • Supports 4K60 4:4:4 video and 7.1‑channel audio
  • HDCP 2.2 compliant
  • USB‑C port supports:
    • 2‑lane ALT‑DP audio/video
    • Simultaneous USB data
    • Optional device charging via PS‑20V‑6A power supply
  • Dual‑power options: PoE or DC power input (Optional second PS‑20V‑6A supply can inject USB‑C charging power)
  • Fully routable/switchable USB with isochronous data support up to 190 Mbps
  • Dante audio supported
  • TAA compliant
