Kscape RAIL Track Ready 48V Lighting and Audio System, Black

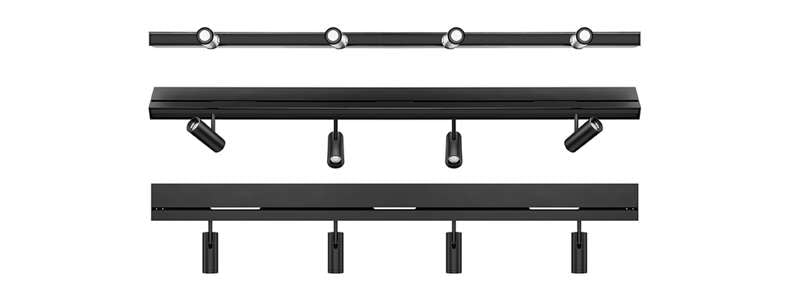

KSCAPE RAIL Track Ready 48V Lighting and Audio System

The KSCAPE RAIL Track Ready 48V is a state-of-the-art lighting and audio system that combines advanced LED technology with high-quality audio speakers. This innovative product is designed to provide exceptional lighting effects and immersive sound, making it perfect for a wide range of applications, from offices and museums to hospitality environments.

Features:

• Lighting Characteristics:
  • Integrated 48V multi-system track for easy connection of KSCAPE projectors with zoom optics
  • LED: Cree + Osram
  • LED lifetime: Lm80 60,000h 25°
  • Input voltage: 48 Vdc constant voltage
  • Control Interface: Standard 48Vdc / DALI ready / Casambi ready
  • Driver: Electronic remote driver 48Vdc
  • Optics: Symmetric, Asymmetric, and Diffused options available
• Audio Electrical Characteristics:
  • Type: Distributed point source
  • Transducers: 3 x 1”x 5” neodymium magnet transducers with 0.65” voice coil
  • Frequency Response: 60 Hz – 20 kHz (-6 dB) [full-range preset @ 84dB max SPL]
  • Rated Power: 75W peak
  • Max SPL: 97 dB peak with dedicated preset
  • Coverage: V: 10° | H: 110° (unit set in vertical position)
  • Nominal Impedance: 48 Ω
• General Specifications:
  • Type: Audio + Light
  • Dimensions (W x H x D): 1190x35x92 mm (46.8x1.37x3.62 in)
  • Weight: 3 kg (5.86 lb)
  • Material: Extruded aluminum body and stainless steel elements
  • Colors: White/Black/Custom RAL
  • IP Protection: IP40
