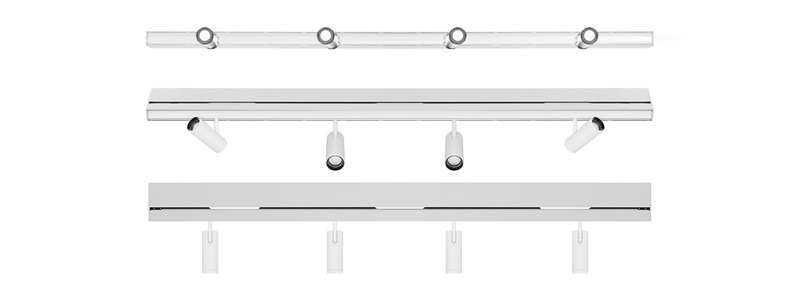

RAIL Track Ready 24V Lighting and Audio System
The RAIL Track Ready 24V is a state-of-the-art product that combines functionality, versatility, and uncompromising design. It features an integrated 24V multi-system track, allowing for easy connection of KSCAPE projectors with zoom optics, enabling precise light direction and extraordinary lighting effects. Additionally, it includes high-quality audio speakers for immersive sound.
Features:
-
Lighting Characteristics:
- Optic: Multisystem Stucchi track inside
- LED: Cree + Osram
- LED lifetime: Lm80 60,000h 25°
- Input voltage: 24 Vdc constant voltage
- Control Interface: Standard 24Vdc / DALI ready / Casambi ready
- Driver: Electronic remote driver 24Vdc
-
Audio Electrical Characteristics:
- Type: Distributed point source
- Transducers: 3 x 1”x 5” neodymium magnet transducers with 0.65” voice coil
- Frequency Response: 60 Hz – 20 kHz (-6 dB) [full-range preset @ 84dB max SPL]
- Rated Power: 75W peak
- Max SPL: 97 dB peak with dedicated preset
- Coverage: V: 10° | H: 110° (unit set in vertical position)
- Nominal Impedance: 48 Ω
-
General Specifications:
- Type: Audio + Light
- Dimensions (W x H x D): 1190x35x92 mm (46.8x1.37x3.62 in)
- Weight: 3 kg (5.86 lb)
- Material: Extruded aluminum body and stainless steel elements
- Colors: White
- IP Protection: IP40
