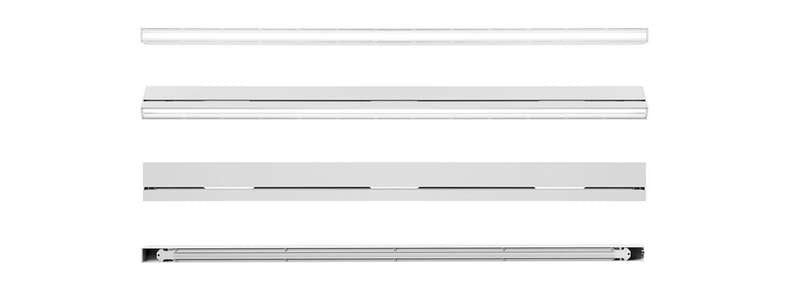

KSCAPE Rail 48V Integrated Lighting and Audio System
The KSCAPE Rail 48V is a state-of-the-art product that combines high-end lighting with professional audio, designed to meet contemporary technological needs.
The KSCAPE Rail 48V features a 1.2-meter linear track of warm, homogeneous LED lights integrated with full-range speakers. This innovative solution is ideal for various installations, including workplaces, residential, and commercial spaces where both light and sound are essential. The Rail 48V offers easy connection to KSCAPE projectors with zoom optics, allowing precise light direction and creating extraordinary lighting effects.
Features
-
Lighting: Warm, homogeneous LED lights available in various optics such as Symmetric, Asymmetric, Diffused, or Electrified Track.
-
Audio: Integrated full-range speakers with neodymium magnet transducers.
-
Control: Can be controlled through DALI, CASAMBI, or simply 48V on/off.
-
Mounting Options: Can be mounted as suspended, recessed, appliqué, or plafond.
-
Compatibility: Works best with Tunable White 2700k - 5000k.
-
Audio Control: Compatible with K-array amplifiers like the KA-14 or KA28.
-
Material: Extruded aluminum body and stainless steel elements.
-
Dimensions: 1190x35x92 mm (46.8x1.37x3.62 in).
-
Weight: 3kg (5.86 lb).
-
IP Protection: IP40.
-
LED Lifetime: Lm80 60,000h at 25°.
-
Frequency Response:
- 60 Hz – 20 kHz (-6 dB) [full-range preset @ 84dB max SPL]
- 200 Hz – 20 kHz (-6 dB) [w/subwoofer preset @ 97 dB max SPL]
-
Rated Power: 75W peak.
-
Max SPL: 97 dB peak with dedicated preset.
-
Coverage: V: 10° | H: 110° (unit set in vertical position).
-
Nominal Impedance: 48 Ω
