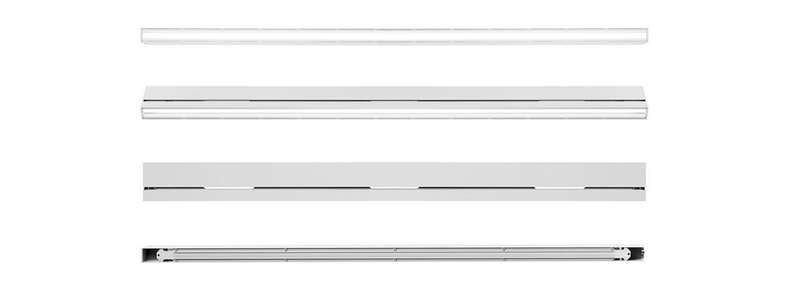

KSCAPE Rail 24V Integrated Lighting and Audio System
The KSCAPE Rail 24V is an innovative product that combines high-end lighting with professional audio. It features a 1.2-meter linear track of warm, homogeneous LED lights integrated with full-range speakers. This makes it ideal for various installations, including workplaces, residential, and commercial spaces where both light and sound are essential.
Key Features
-
Lighting: Warm, homogeneous LED lights available in various optics such as Symmetric, Asymmetric, Diffused, or Electrified Track.
-
Audio: Integrated full-range speakers with neodymium magnet transducers.
-
Control: Can be controlled through DALI, CASAMBI, or simply 24V on/off.
-
Mounting Options: Can be mounted as suspended, recessed, appliqué, or plafond.
-
Compatibility: Works best with Tunable White 2700k - 5000k.
-
Audio Control: Compatible with K-array amplifiers like the KA-14 or KA28.
The Rail 24V is designed to streamline immersive, architectural sound and light experiences, making it a versatile addition to any space.
Specifications
General
-
Type: Audio + Light
-
Dimensions (W x H x D): 1190x35x92 mm (46.8x1.37x3.62 in)
-
Weight: 3kg (5.86 lb)
-
Material: Extruded aluminum body and stainless steel elements
-
Colors: White
-
IP Protection: IP40
Lighting Characteristics
-
LED: Cree + Osram
-
LED lifetime: Lm80 60,000h 25°
-
Input voltage: 24 Vdc constant voltage
-
Control Interface: Standard 24Vdc / Dali ready / Casambi ready
-
Driver: Electronic remote driver
Audio Electrical Characteristics
-
Type: Distributed point source
-
Transducers: 3 x 1”x 5” neodymium magnet transducers with 0.65” voice coil
-
Frequency Response:
- 60 Hz – 20 kHz (-6 dB) [full-range preset @ 84dB max SPL]
- 200 Hz – 20 kHz (-6 dB) [w/subwoofer preset @ 97 dB max SPL]
-
Rated Power: 75W peak
-
Max SPL: 97 dB peak with dedicated preset
-
Coverage: V: 10° | H: 110° (unit set in vertical position)
-
Nominal Impedance: 48 Ω
