Kommander-KA18 – 8-Channel Class D Amplifier with Integrated DSP and Remote Control
The Kommander-KA18 is a fully-featured, 8x 150W @ 4Ω amplifier platform with DSP highly integrated into the K-array collection ecosystem.
The Kommander-KA18 offers pristine sound and complete control over the connected loudspeakers, either as a stand-alone driving unit or in conjunction with other K-array amplifiers in complex and demanding applications.
The dedicated K-array Connect mobile app provides a user-friendly interface for remote control of the DSP main parameters and easy configuration of the signal routing.
K-framework3 is the managing and control software dedicated to professionals and operators looking for a powerful tool for designing and managing a large number of units over a wired LAN in demanding applications.
Specifications
General
-
Type: 8ch switching mode, Class D Amplifier
-
Output Power: 8 x 150W @ 4Ω
-
Impedance: minimum 4 Ω
-
Frequency Response: 20 Hz – 20 kHz (±1 dB)
-

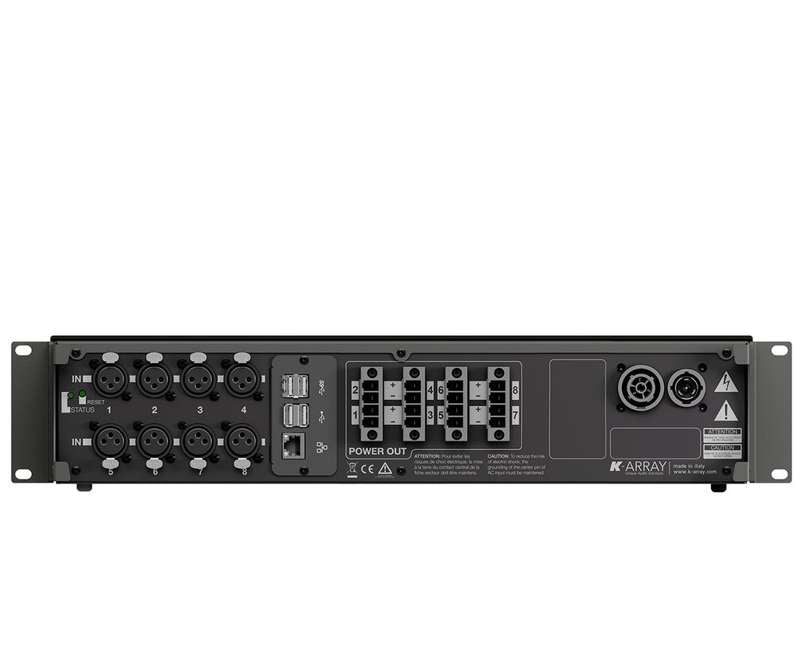

Connectors:
-
Input: 8x XLR-F bal input
-
Output: 4x PC 4/ 4-ST-7,62 speaker output
-
Remote connectivity: 1x Ethernet RJ45, 4x USB-A Wi-Fi IEEE 802.11 b/g/n
-
Power: 1 x PowerCon TRUE IN, 1 x PowerCon TRUE Link
-
Built-in DSP: Grouping, Equalization, Limiters, Routing, Level, Loudspeaker presets
-
Remote Control: Wi-Fi and Ethernet dedicated APP and Desktop software
Power Handling
-
Protections: Thermal protection, output short circuit, RMS output current protection, high frequency protection, power limiter, clip limiter.
-
MAIN Operating Range: 100-240V AC, 50-60 Hz with PFC
-
Power Consumption: 300 W @ 4 Ω load, Pink noise, 1/8 rated power
Handling and Finishes
-
Colors: Black
-
Material: Stainless Steel
-
IP Rating: IP20
-
Dimensions (W x H x D): 430 x 87 x 430 mm (17 x 3,4 x 17 in)
-
Weight: 7,4 kg (16,3 lb)
