Kommander-KA14 I – 4x600W@2Ω Class-D Amplifier with DSP
The Kommander-KA14 I is a fully-featured 4x600W@2Ω Class-D amplifier platform with integrated DSP, designed for seamless integration into the K-array ecosystem. It delivers pristine sound and complete control over connected loudspeakers, functioning as a standalone unit or in conjunction with other K-array amplifiers for complex applications.
The dedicated K-array Connect mobile app provides an intuitive interface for remote DSP control and signal routing configuration. For advanced system design and tuning, K-framework3 software offers powerful tools for managing large installations over wired LAN.
Specifications
General
-
Type: 4ch switching mode, Class D Amplifier
-
Output Power: 4x 600 W @ 2 Ω
-
Impedance: Minimum 2 Ω
-
Frequency Response: 20 Hz – 20 kHz (±1 dB)
-
Connections:
-

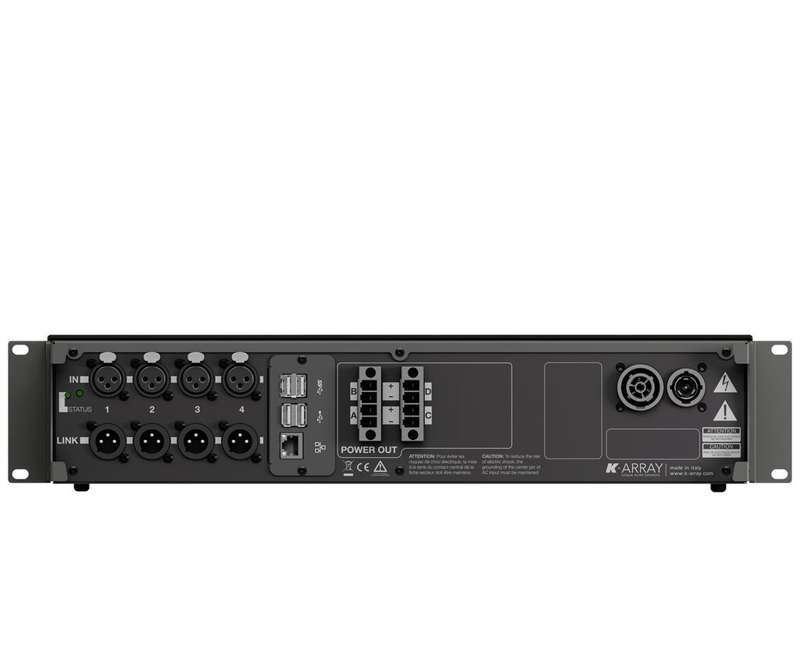

Input: 4x XLR-F balanced input
-
Link Output: 4x XLR-M balanced LINK output
-
Speaker Output: 2x PC 4/4-ST-7.62
-
Remote Connectivity: 1x Ethernet RJ45, 4x USB-A, Wi-Fi IEEE 802.11 b/g/n
-
Power: 1x PowerCon TRUE IN, 1x PowerCon TRUE Line
-
Built-in DSP: Grouping, Equalization, Limiters, Routing, Level, Loudspeaker presets
-
Remote Control: Wi-Fi and Ethernet via dedicated app and desktop software
Power Handling
-
Protections: Thermal protection, output short circuit, RMS output current protection, high-frequency protection, power limiter, clip limiter
-
Main Operating Range: 100-240V AC, 50-60 Hz with PFC
-
Power Consumption: 400 W @ 4 Ω load, Pink noise, 1/8 rated power
Handling and Finishes
-
Colors: Black
-
Material: Stainless Steel
-
IP Rating: IP20
-
Dimensions (W × H × D): 430 × 87 × 430 mm (17 × 3.4 × 17 in)
-
Weight: 6 kg (13.2 lb)
