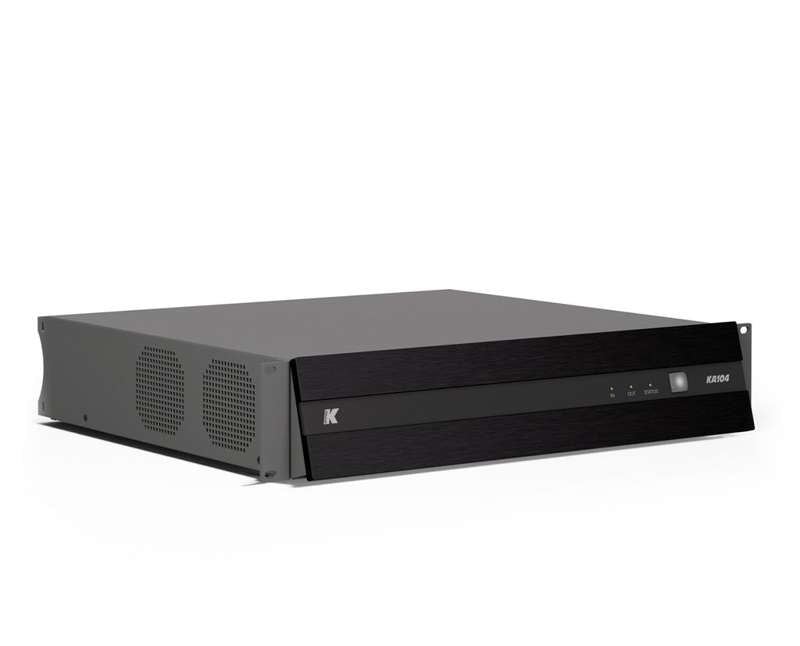

K-array Kommander-KA104 4x2500W at 4ohms Class-D Amplifier with DSP

by K-array
SKU: KARKA104

MSKU: KA104

Original price $10,584.00 - Original price $10,584.00
Original price
$10,584.00
$10,584.00 - $10,584.00
Current price $10,584.00
Call to Order

Free shipping on all orders.

Typically ships in 2–4 days

Specifications

Use case: Business,education
Request a custom quote >

Kommander-KA104 – 4x2500W@4Ω Class-D Amplifier with DSP

The Kommander-KA104 is a fully featured 4x2500W@4Ω Class-D amplifier platform with integrated DSP, designed for seamless integration into the K-array ecosystem. It delivers pristine sound and complete control over connected loudspeakers, functioning as a standalone unit or in conjunction with other K-array amplifiers for complex applications.

The dedicated K-array Connect mobile app provides an intuitive interface for remote DSP control and signal routing configuration. For advanced system design and tuning, K-framework3 software offers powerful tools for managing large installations over wired LAN.

Specifications

General

  • Type: 4ch switching mode, Class D Amplifier
  • Output Power: 4 × 2500 W @ 4 Ω
  • Impedance: Minimum 4 Ω
  • Frequency Response: 20 Hz – 20 kHz (±1 dB)

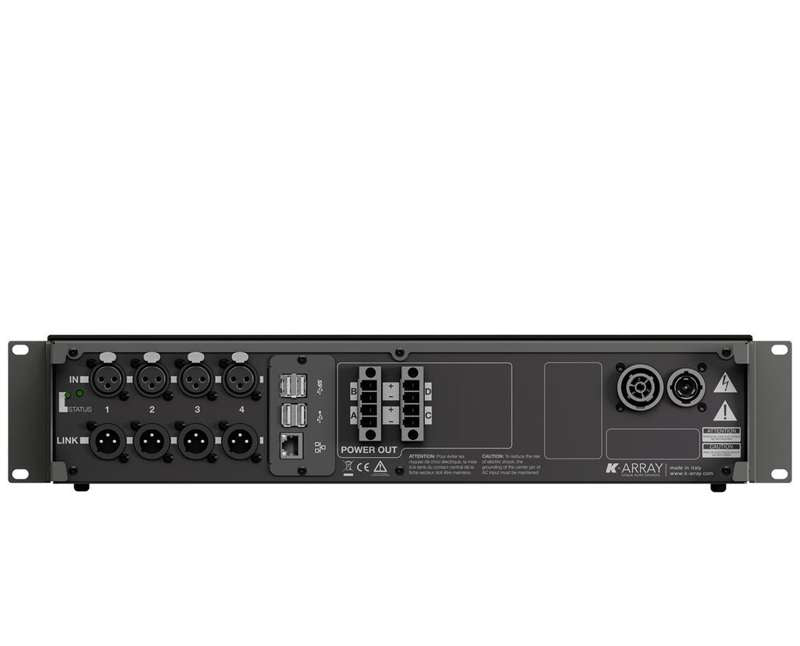

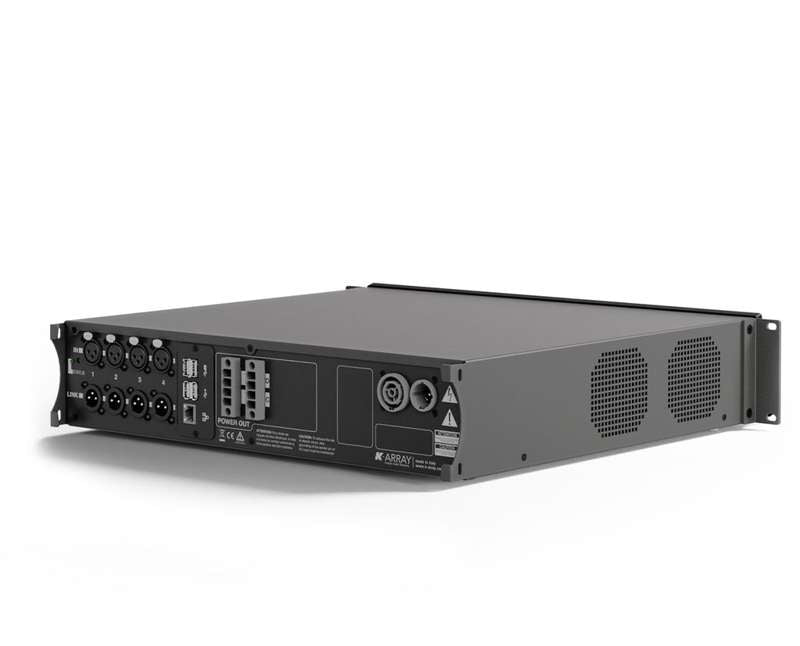

  • Connections:
    • Input: 4 × XLR-F balanced input
    • Link Output: 4 × XLR-M balanced LINK output
    • Speaker Output: 2 × PC 4/4-ST-7.62
    • Remote Connectivity: 1 × Ethernet RJ45, 4 × USB-A, Wi-Fi IEEE 802.11 b/g/n
    • Power: 1 × PowerCon TRUE IN, 1 × PowerCon TRUE Link
  • Built-in DSP: Grouping, Equalization, Limiters, Routing, Level, Loudspeaker presets
  • Remote Control: Wi-Fi and Ethernet via dedicated app and desktop software

Power Handling

  • Protections: Thermal protection, output short circuit, RMS output current protection, high-frequency protection, power limiter, clip limiter
  • Main Operating Range: 100–240V AC, 50–60 Hz with PFC
  • Power Consumption: 600 W @ 4 Ω load, Pink noise, 1/8 rated power
