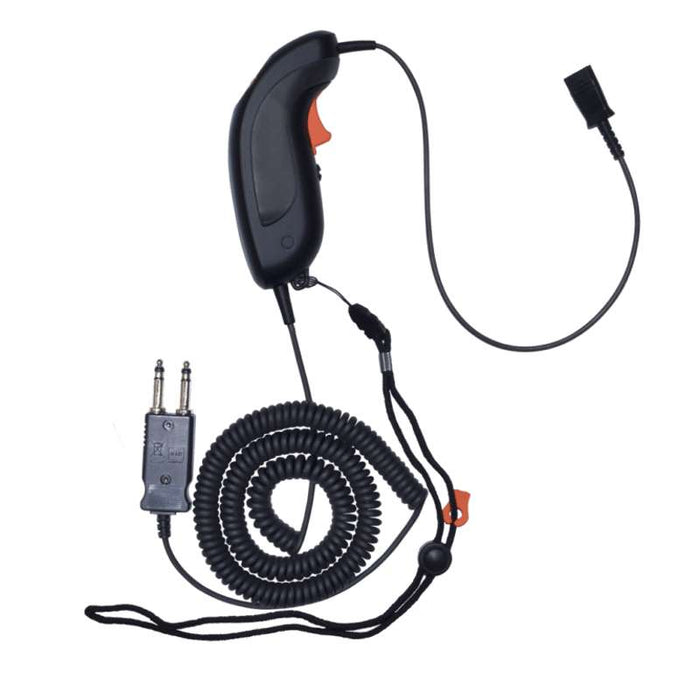

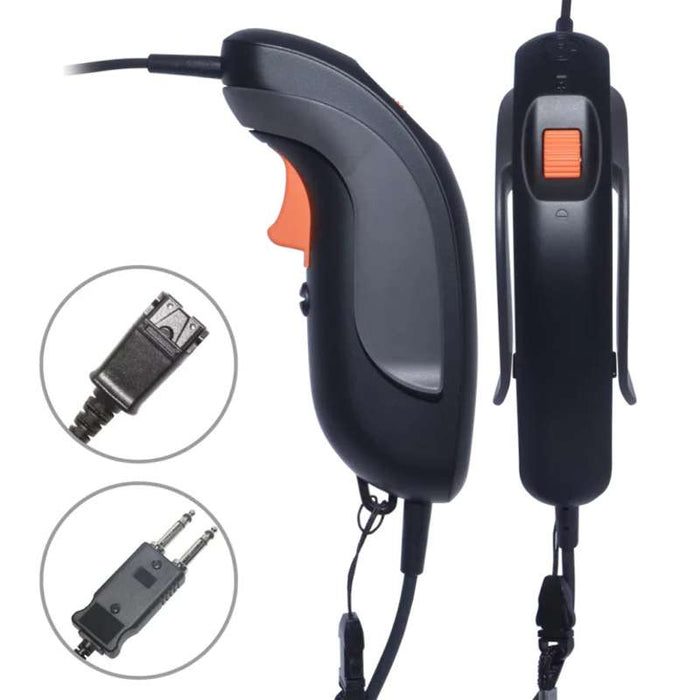

JPL Scout 300A Push-To-Talk (PTT) Trigger Amplifier Switch

JPL Scout 300A Push-To-Talk (PTT) Trigger Switch (Amplified / Low-Output Mic Variant)

Key Features:

• Built-in active mic pre-amplifier ("A" variant) to boost low-output Plantronics-compatible headset signals for legacy dispatch consoles, unlike the pass-through Scout 300

• PJ-7 (2-prong plug) connector designed for Plantronics-compatible dispatch setups, Motorola Solutions, Avtec Scout, and 6-wire radio consoles
• JPL/PLX Quick Disconnect (QD) interface compatible with professional Plantronics and JPL 6-wire QD headsets
• Selectable trigger mode: momentary push-to-talk or lockable open-microphone transmission
• Dual-color LED status indicator glows green during live transmission and red when muted
• Side-mounted thumbwheel volume control for rapid incoming audio adjustments


Tactile PTT Control and Visual Feedback

Designed for immediate response in critical operations, the pistol-grip handle allows operators to rest their index finger naturally on the trigger. A quick squeeze activates the transmit line, while built-in green and red LED indicators provide instantaneous visual confirmation of microphone status during high-intensity calls.

Flexible Operations and QD Compatibility

Operators can choose between standard momentary trigger operation and a sliding lock mode for extended hands-free transmissions. Built with a standard Plantronics-compatible (PLX/JPL) QD terminal, the Scout 300A connects seamlessly to a wide range of monaural and binaural noise-canceling headsets, enabling easy shift changes without unplugging the main console lead.
