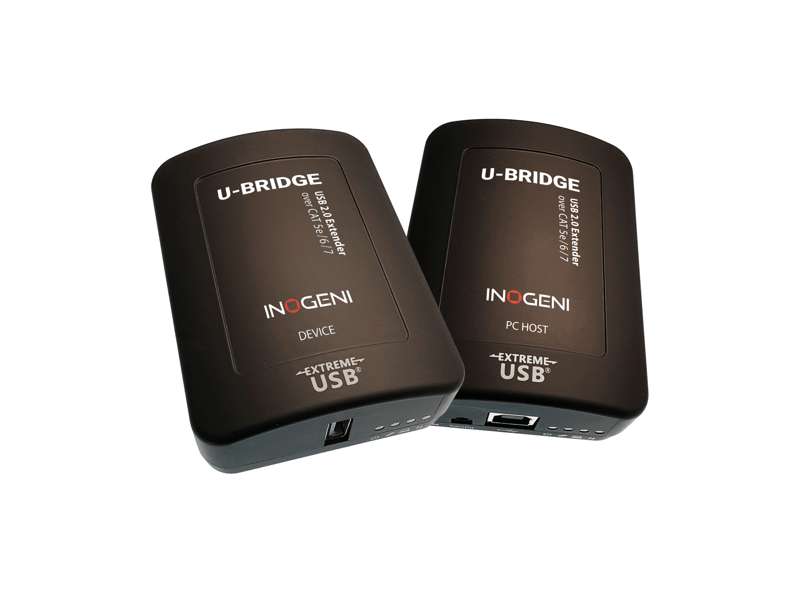

The INOGENI U-BRIDGE is a high-performance USB 2.0 video camera and audio extender that enables long-distance, high-speed USB connections—up to 100 m / 330 ft—over a single CAT 5e/6/7 cable. Designed to solve interoperability challenges, it ensures reliable, high-quality video transmission for AV professionals and videoconferencing environments.
Key Features
Extends USB 2.0 connections up to 100 m / 330 ft over a single CAT 5e/6/7 cable
Ideal for USB camera extension in videoconferencing rooms
Compatible with all USB 2.0/1.1 devices including cameras, whiteboards, microphones, audio devices, hard drives, flash drives, and keyboards
Fully compatible with professional USB cameras such as Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall, and standard webcams
Extend BYOM (Bring Your Own Meeting) setups to laptops using TOGGLE and U-BRIDGE
Powered by proven Extreme USB technology
Flexible power options: power either the PC HOST or DEVICE modules
Plug-and-play functionality with no drivers required
Supports all major operating systems: Windows, macOS, and Linux
Two-year warranty included
Enables full access and control of USB devices
Perfectly compatible with Logitech UC cameras and CODECs
Logitech-tested compatible cameras: Rally and Rally Bar series, MeetUp, MeetUp 2, Scribe, and consumer cameras
Logitech UC CODECs: Rally Bar and Rally Bar series (Appliance Mode), Roommate, for MTR and Zoom Rooms
What’s in the Box
1x PC HOST extender module
1x DEVICE extender module
1x USB 2.0 cable
1x Quick Start Guide
1x Power supply: 100-240V AC input, 24V 1A DC output
International power adapter with country-specific cords (North America, EU, UK, Australia/NZ, or Japan)

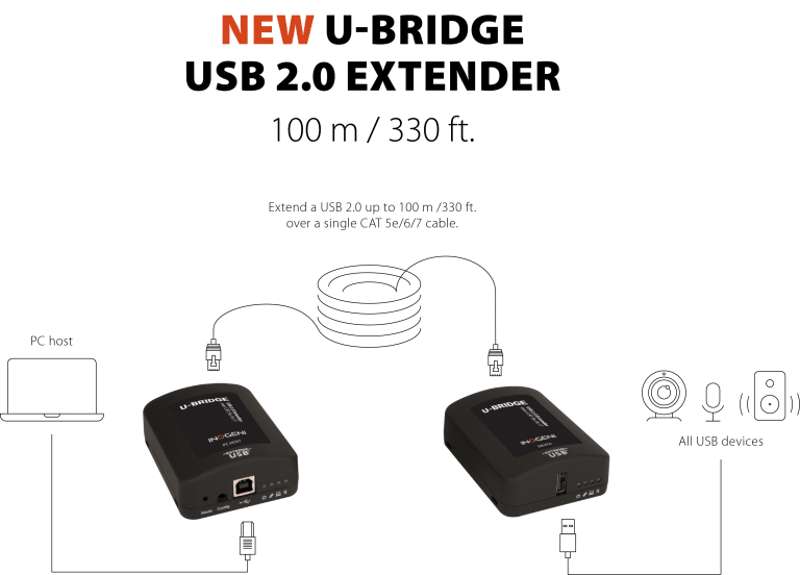

How It Works
Extend your USB 2.0 camera to any INOGENI USB input, CODEC, or videoconferencing system. For HDMI cameras, use an INOGENI converter in combination with the U-BRIDGE to transmit high-quality MJPEG video and audio signals to your computer or PC-based conferencing setup—up to 100 m / 330 ft away. This makes it an ideal solution for large meeting rooms and AV installations.
