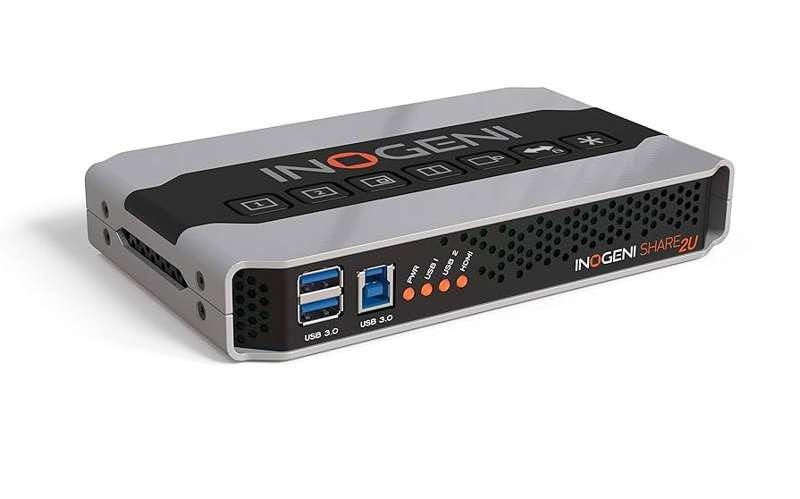

SHARE2U: Mix 2x USB 2.0 or HDMI Cameras to USB 3.0 and HDMI + PTZ Control
The INOGENI SHARE2U is a versatile and easy-to-use camera mixer that combines two video sources—USB 2.0 or HDMI—into a single video stream. With built-in Picture-in-Picture (PiP) and side-by-side layouts, it’s ideal for HyFlex classrooms, collaborative meetings, webinars, and live streaming.
Key Features
Mix two cameras from three input sources (2x USB 2.0 and 1x HDMI)

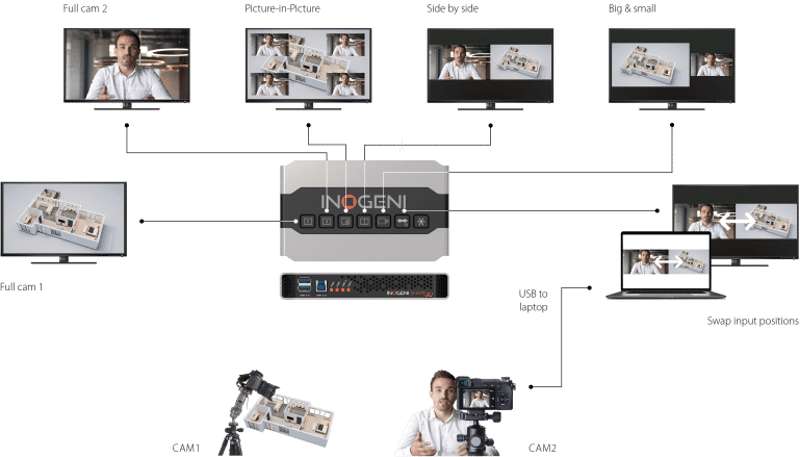

Supports up to 14 customizable video layouts including PiP and side-by-side
Switch camera sources and layouts without interrupting the video stream
Output options:
Uncompressed video via USB 3.0
MJPEG video via USB 2.0
PTZ camera control via USB HID, RS-232, or LAN
Manual control via built-in keypad
Compatible with Q-SYS Core processors
No drivers required—plug-and-play simplicity
Designed and manufactured in Canada
TAA-compliant

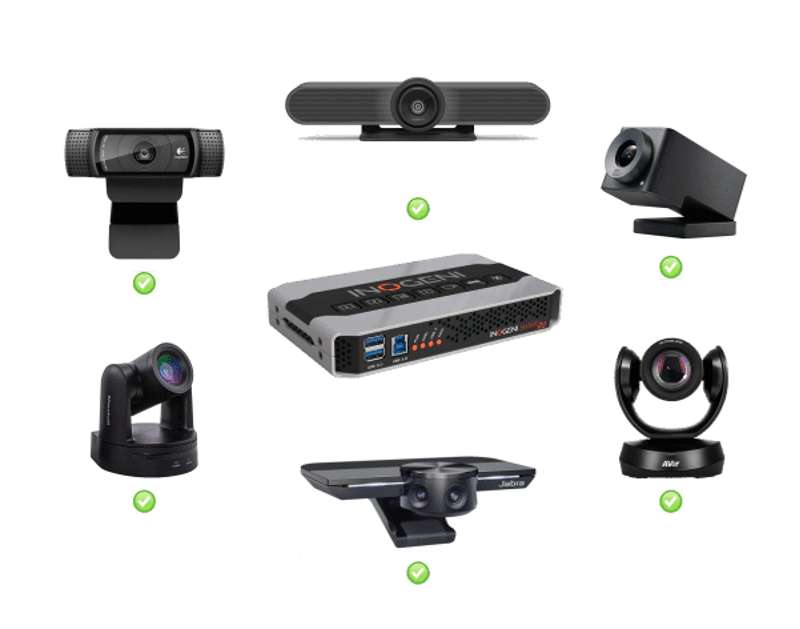

Compatibility
Fully compatible with Logitech UC cameras and CODECs
Logitech-tested cameras: Rally, Rally Bar series, MeetUp, MeetUp 2, Scribe, and consumer models
Logitech UC CODECs: Rally Bar (Appliance Mode), Roommate for MTR and Zoom Rooms
Compatible with Barco ClickShare Conference (CX-20, CX-30, CX-50)
What’s in the Box
1x USB 3.0 cable (Type-A to Type-B, 1 m / 3.3 ft)
1x RS-232 terminal block adapter
1x Power supply (100–240 VAC, 50/60Hz to 12V/1.2A DC)
International power adapters (AUS, EUR, UK, US)

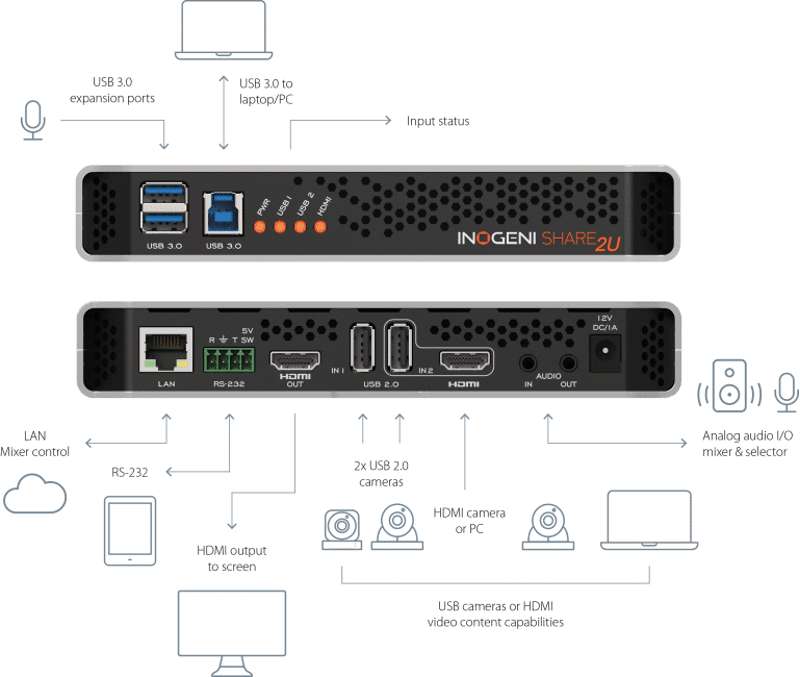

How It Works
The SHARE2U mixer allows you to combine and control two video sources from USB or HDMI inputs. It can be managed through software on the host computer using USB HID, RS-232, or LAN interfaces. For quick adjustments, users can also operate the device manually using the built-in keypad.
