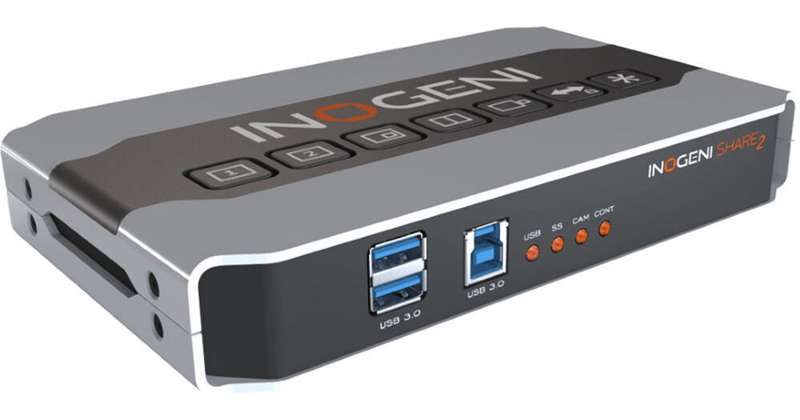

The INOGENI SHARE2 is a powerful and user-friendly camera mixer that combines two HDMI or DVI video sources into a single USB 3.0 output. With built-in Picture-in-Picture (PiP) capabilities and flexible control options, it’s ideal for interactive presentations, HyFlex classrooms, webinars, and collaborative meetings.
Key Features
Mixes two HDMI/DVI camera feeds into a single USB 3.0 video stream

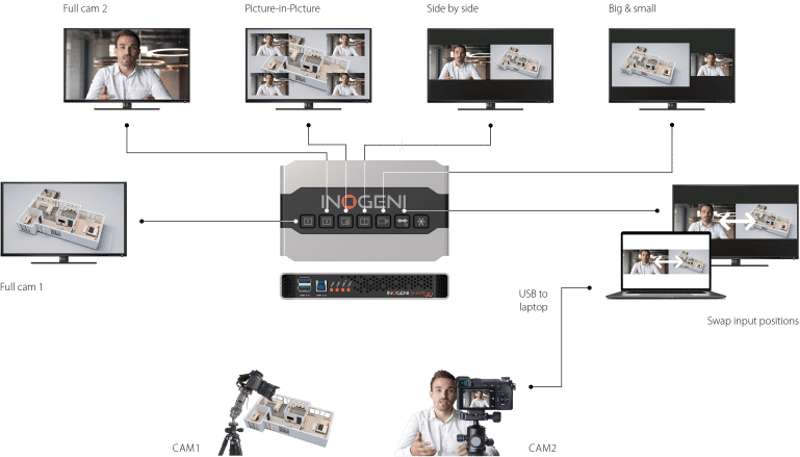

Supports up to 14 customizable video layouts including Picture-in-Picture
Switch video sources and layouts without interrupting the live stream
Perfect for remote education, live streaming, and hybrid meetings
Compatible with Q-SYS Core processors
Output options:
Uncompressed video via USB 3.0
MJPEG video via USB 2.0
Controllable via LAN and RS-232
No drivers required—plug-and-play simplicity
Designed and manufactured in Canada
TAA-compliant
Compatibility
Fully compatible with Logitech UC cameras and CODECs
Logitech-tested cameras: Rally, Rally Bar series, MeetUp, MeetUp 2, Scribe, and consumer models
Logitech UC CODECs: Rally Bar (Appliance Mode), Roommate for MTR and Zoom Rooms
Compatible with Barco ClickShare Conference (CX-20, CX-30, CX-50)
What’s in the Box
1x USB 3.0 cable (Type-A to Type-B, 1 m / 3.3 ft)
1x HDMI to DVI adapter
1x VGA to DVI adapter
1x Serial RS-232 cable (DB9 female to RJ45 plug)
1x Power supply (100–240 VAC, 50/60Hz to 12V/1.2A DC)
International power adapters (AUS, EUR, UK, US)
How It Works

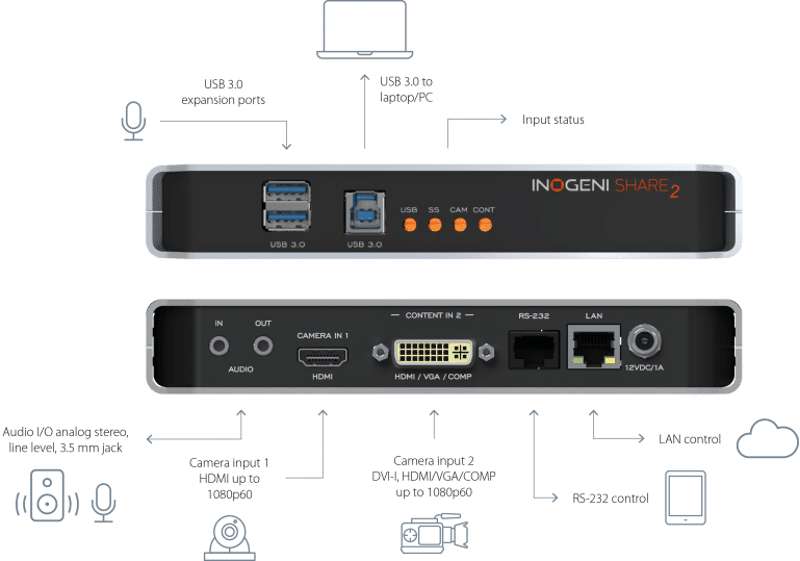

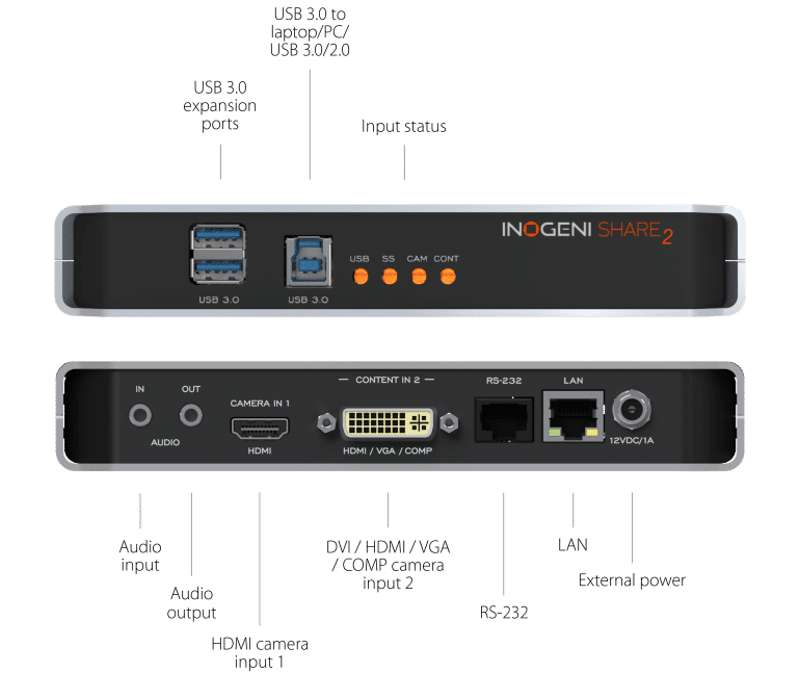

The SHARE2 mixer features dual HDMI/DVI inputs and a single USB 3.0 output. It can be controlled via software on the host computer using LAN or RS-232 interfaces, or manually using the built-in keypad on the device. This flexibility makes it ideal for both automated and hands-on AV environments.
