Epson ELPMB77 Tilt Adapter Mounting Plate for Stacking Frame

ELPMB77 Tilt Adapter Mounting Plate for Stacking Frame

Tilt adapter mounting plate for Alfa (ELPMB76) and Beta (ELPMB84) projector stacking frames.

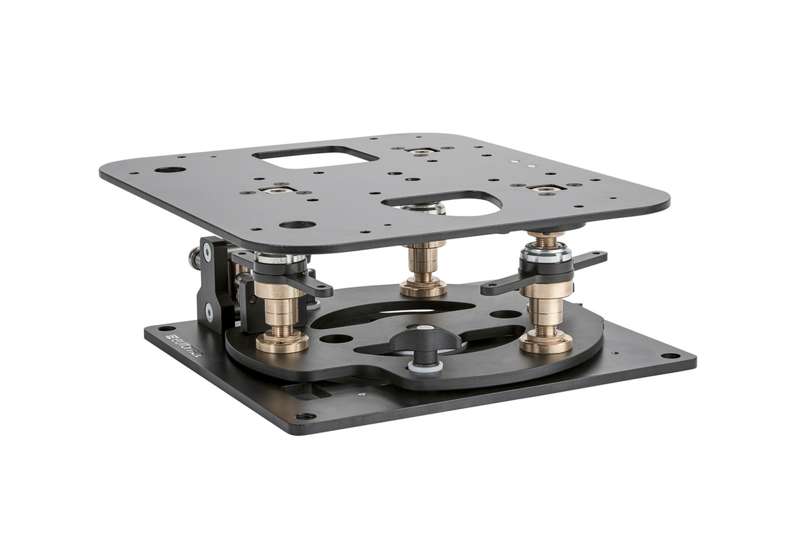

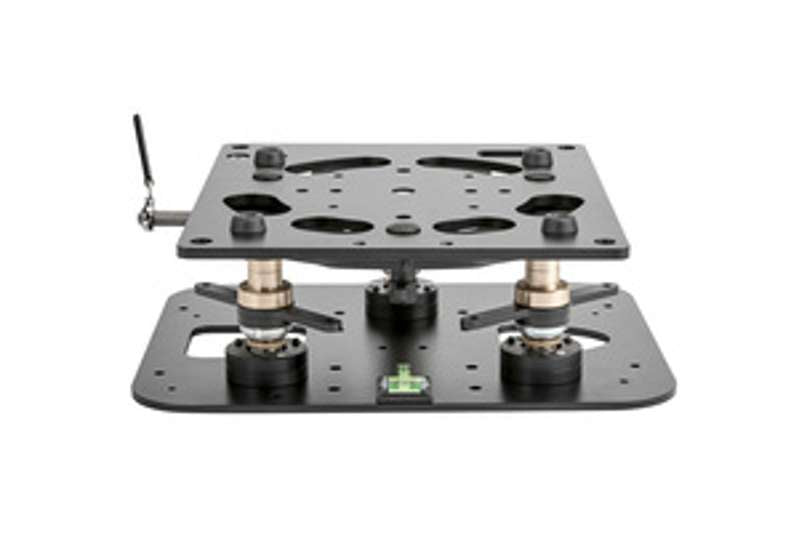

The ELPMB77 Tilt Adapter Mounting Plate adds very precise tilt angle adjustment and fine calibration capability when mounted to the projector or to projector stacking frames (ELPMB76 and ELPMB84). This versatile mounting plate features an innovative three-point self-alignment system that allows for intuitive positioning—when one point is adjusted, the other two adapt their inclinations accordingly. Tilt adjustments are made via the ratcheting wrench, which changes the yaw in both directions, or via the three plate lifters, which are used to adjust pitch and roll. The ELPMB77 mounting plate can be attached easily to a truss using clamps (not included), and its sturdy design helps ensure stable and durable system placement.

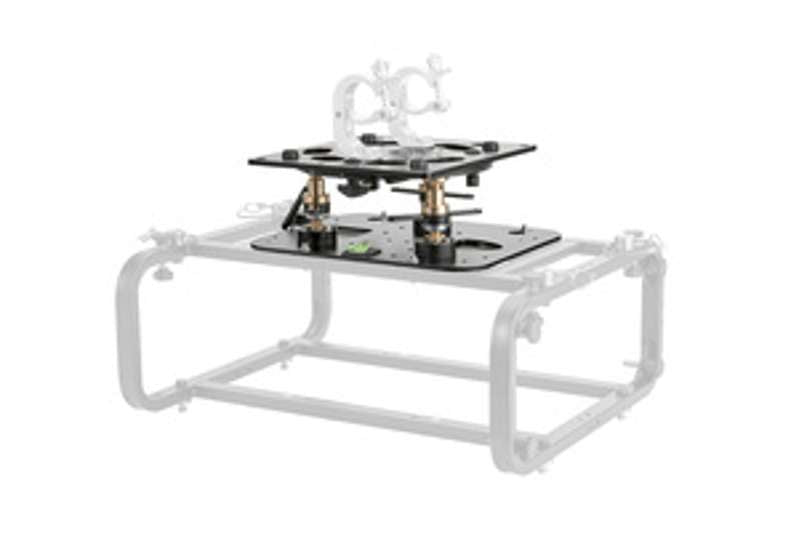

The ELPMB77 Tilt Adapter Mounting Plate can be mounted to the projector directly; it also pairs with the Alfa (ELPMB76) and Beta (ELPMB84) projector stacking frames and the optional ELPMB85 rail adapter.

• Intuitive alignment — innovative three-point self-alignment system is practical and intuitive—when one point is adjusted, the other two adapt their inclinations accordingly
• Easy tilt adjustment — use the ratcheting wrench to change yaw direction and the plate lifters to adjust pitch and roll
• Secure system positioning — the force required for adjustment is low; once the desired position is reached, the system remains fixed, stable and constant over time
• Truss mounting — mount the stacking frame securely using truss clamps (not included); the frame’s smaller plate features two holes that accommodate M10 clamp fixing screws (not included) for truss mounting
• Micro adjustment ranges — roll: ±3 degrees; pitch: ±3 degrees; yaw: ±4 degrees
• Versatile design — compared to the ELPMB81 Tilt Adapter, the ELPMB77 can be mounted directly to the projector; it can be placed on the ground with included feet, hung from a ceiling, and has the ability to make more precise adjustments
• Sturdy, convenient design — for outstanding functionality and ease of use; dimensions (W x D x H): 15.4" x 14.3" x 3.9" (390 mm x 362 mm x 100 mm)
• Compatible — attaches to Epson projectors directly or to the Alfa (ELPMB76) and Beta (ELPMB84) projector stacking frames
• Supports Epson projector stacking frames — attaches to the Alfa (ELPMB76) and Beta (ELPMB84) projector stacking frames
• Linear adjustment — for fast and precise installation of ultra short throw (UST) or other projectors without a zoom lens, utilize the ELPMB85 rail adapter for fine forward/backward adjustment
