ELMO PX-10E Full HD Document Camera with 288x Zoom

by ELMO
SKU: ELM1376

MSKU: 1376

Sale Sale
Original price $2,899.00
Original price $2,899.00 - Original price $2,899.00
Original price $2,899.00
Current price $2,319.00
$2,319.00 - $2,319.00
Current price $2,319.00
Call to Order

Free shipping on all orders.

Typically ships in 2-4 days.

Specifications

Use case: Education,healthcare
Request a custom quote >

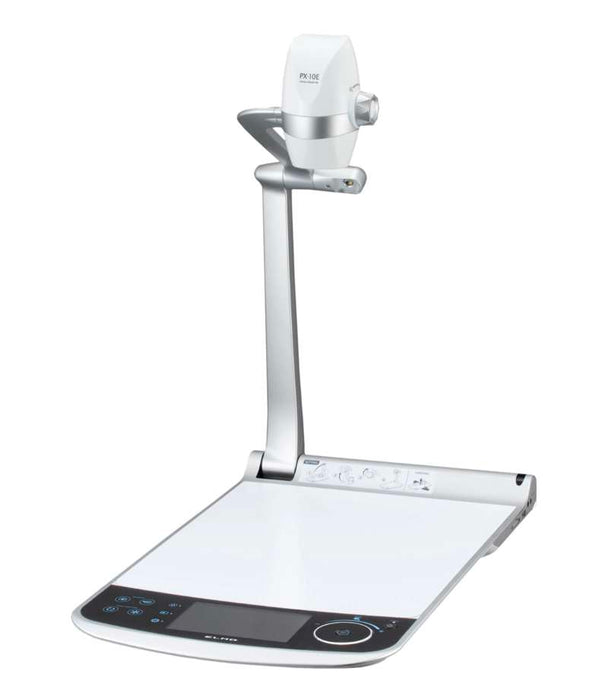

PX-10E Full HD Document Camera with 288x Zoom

The PX-10E delivers stunning 1080p Full HD video at 60fps with an incredible 288x zoom, allowing you to capture every detail. Save recordings directly to SD card, USB flash drive, or internal memory.

Featuring a 5” high-resolution touchscreen, magnetic whiteboard stage, and multiple output options (HDMI, VGA, USB), the PX-10E is designed for seamless classroom and professional use.

Key Features

  • Image Quality: 2K Full HD (comparable to 4K)
  • Zoom: 12x Optical, 12x Digital, 2x Sensor – 288x Total
  • Outputs: HDMI, VGA, USB
  • Display Modes: 4:3 and 16:9, up to A4 portrait & A3 landscape

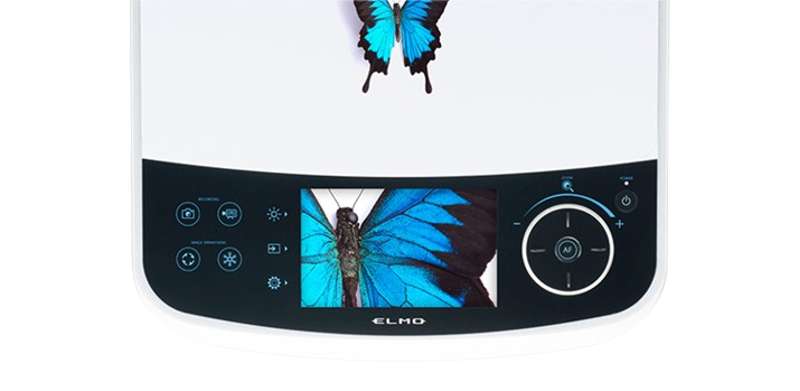

  • Touchscreen: 5” LCD with intuitive controls
  • Stage: Magnetic with dry-erase whiteboard surface
  • Enhancements: Zoom dial, autofocus button, glare-reducing LED, HDMI locks, faster brightness control

Specifications

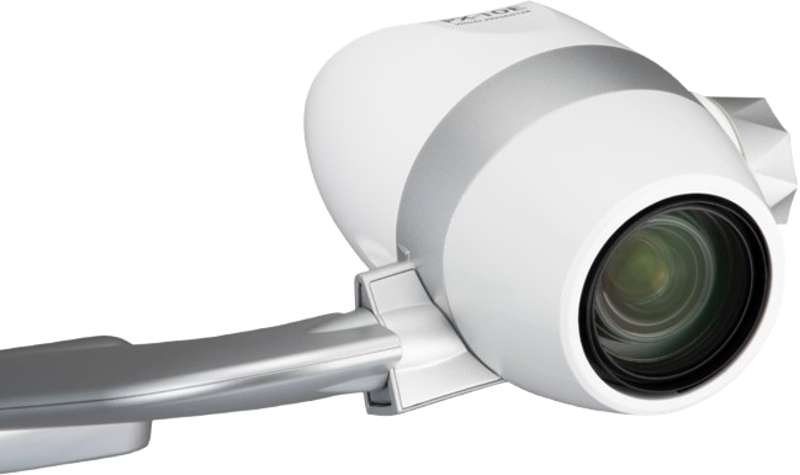

Main Camera

  • Image Sensor: 12 Megapixel CMOS
  • Effective Pixels: 3840 x 2160 (16:9), 3620 x 2640 (4:3)
  • Resolution: 1600 TV lines (center)
  • Zoom: 12x Optical, 12x Digital, 2x Sensor (288x Total)
  • Focus: Zoom Sync AF / One-push AF
  • Focus Range: Wide: 5cm–∞, Tele: 20cm–∞
  • Shooting Area: 17" x 12.6" (up to A4)
  • Illumination: LED Upper Light

Video Output

  • HDMI: 1080p, 720p
  • RGB: 1080p, 720p
  • USB: 1080p, 720p, QUXGA, UXGA, XGA

Image & Display

  • Adjustments: Brightness, White Balance, Contrast, Contour, Image Mask
  • Modes: Normal, Emphasis, Color Emphasis, B/W, DLP Projector
  • LCD Panel: 5" Capacitive Touch (800x480)

Connectivity

  • Inputs: HDMI x2, RGB D-sub15 x1
  • External Control: RS-232C, USB, Remote Control
  • Recording: SD Card, USB Flash (photos only), Internal Memory

Audio

  • Input: External Microphone (via HDMI)
  • Output: Line Out

Dimensions & Weight

  • Setup: 11.7" x 19" x 18.8"

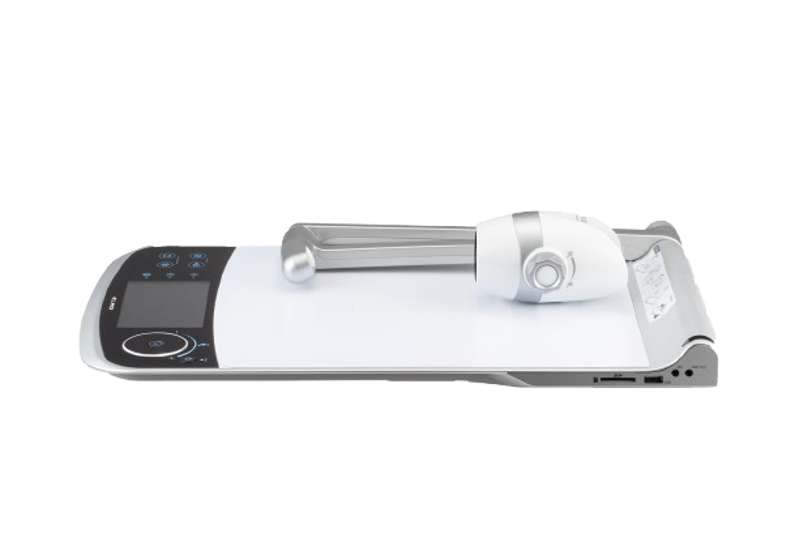

  • Folded: 11.7" x 19" x 3.75"
  • Weight: 9.9 lbs
