Elite VMAX 2 Series, 166-inch Diag., 16:9 Electric Screen, MaxWhite Fiberglass (FG) Material

Elite VMAX 2 Series, 166-inch Diag., 16:9 Electric Screen, MaxWhite Fiberglass (FG) Material

by Elite
SKU ELIVMAX166XWH2

MSKU: VMAX166XWH2

$1,960.00 - $1,960.00
$1,960.00
$1,960.00 - $1,960.00
$1,960.00
Call to Order

Free shipping on all orders.

Specifications
Screen format: 16:9
Screen height: 81.0 in.
Screen type: Electric
Screen width: 144.0 in.
Size diagonal: 166.0 in.
Surface: Maxwhite fiberglass (fg)
Warranty years: 2
Request special pricing on this product

The VMAX 2 Series is an enhanced electric motorized projector screen for commercial and home theater applications. It has a silent and power-saving synchronous motor. With standard features such as the IR & RF remotes, 12v Trigger and Electronic “Eye” Receiver, the VMAX 2 series also includes Elite Screens GREENGUARD Certified MaxWhite and MaxWhite Fiberglass materials that are ideal for large group presentations.

Description:

Available in the following front projection materials

Material Name Gain Viewing Angle Description
MaxWhite
Fiberglass (FG) 		1.1  180° MaxWhite Fiberglass (FG) is fiberglass backed for added stiffness which provides the flattest possible non-tensioned screen surface with universal applications. This material provides wide viewing uniform diffusion while giving precise definition, color reproduction and black & white contrast.
MaxWhite 1.1 180° MaxWhite screen material is the most versatile screen surface for front projection presentations. This material provides the widest possible viewer angles with perfect diffusion uniformity while giving precise definition, image color reproduction and black & white contrast. Recommended for rooms with controlled lighting. Works with Standard, 1080P/4K projectors.



Screen Material

  • MaxWhite 1.1 Gain black backed material
  • MaxWhite FiberGlass backed 1.1 Gain material, models 166″ & below
  • 180° wide viewing angle
  • 4K Ultra HD, Active 3D, and HDR Ready
  • Not compatible with Ultra/Short-throw Projectors

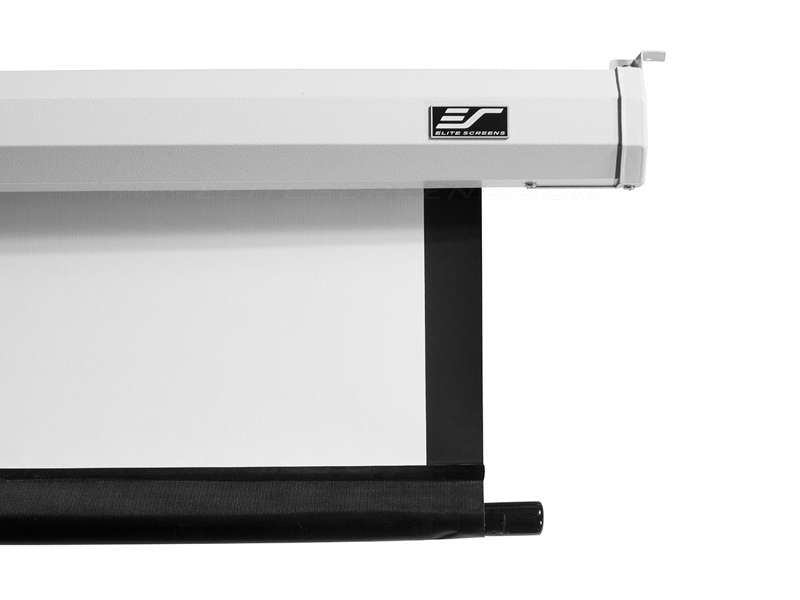

  • Standard 4-side black masking borders
  • Matte White material is durable and easy to clean
  • Available in the following range of diagonal sizes:
    • 170″ in 1:1 format
    • 120″ in 4:3 format

Design and Installation

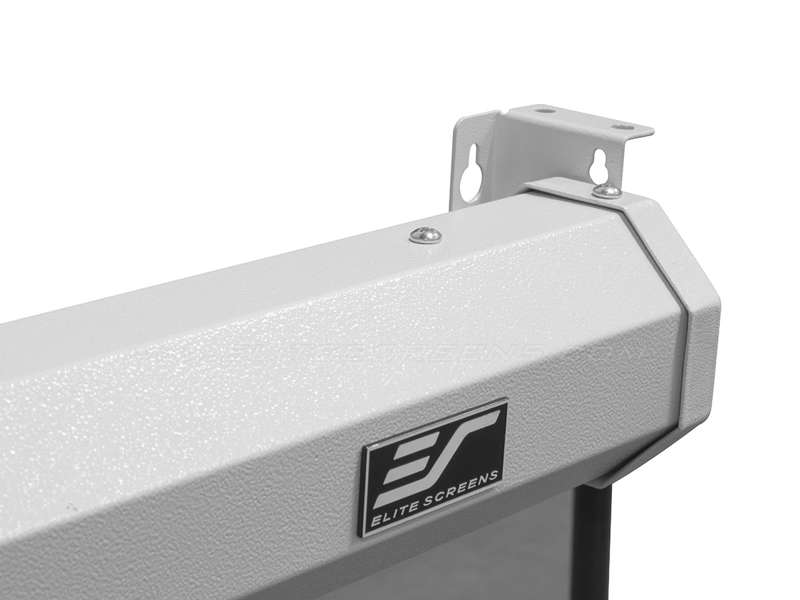

  • Durable metal casing for wall/ceiling installation
  • Includes wood screws and drywall anchors
  • Bubble leveler included
  • Ships fully assembled with 3-prong power connection ready to plug & play
  • Optional 6″ & 12″ L brackets – sold separately

Control System

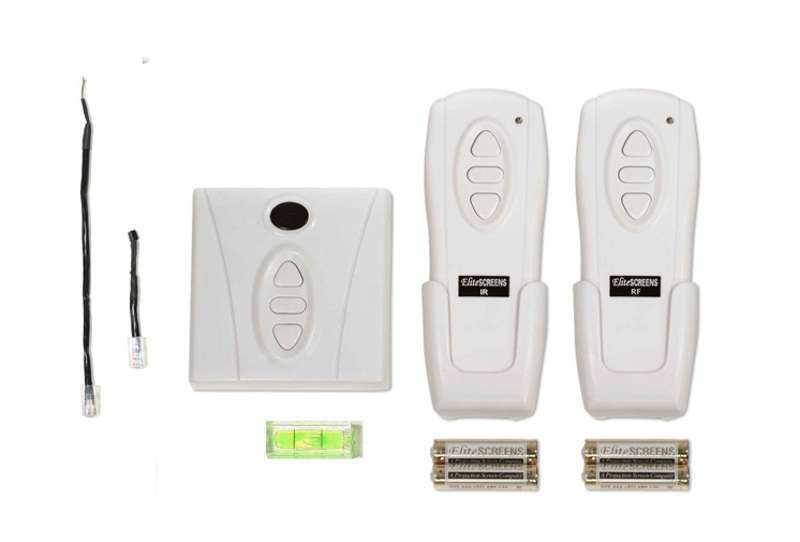

  • Standard Infrared (IR) and Radio Frequency (RF) remote controls
  • Detachable 3-way wall switch
  • Radio Frequency (RF) remote capable of operating from up to 100 feet away without the necessity of line of sight
  • Built-in 5-12 volt trigger input enables Drop/Rise operation to synchronize with the projector’s power cycle
  • Low-voltage internal IR/RF receivers
  • CAT5 cable wit RJ-45 connector for easy extension of the 5-12 volt trigger / IR “eye” receiver / 3-way wall switch
  • Optional wireless 5-12 volt trigger and In-wall switch – sold separately

Quality and Reliability

  • Synchronous motor allows silent operation with extended operational longevity and low power consumption
  • Certified by AMX and CRESTRON
  • MaxWhite FiberGlass: Flame Retardant- Complies with NFPA 701 Standards
  • GREENGUARD and GREENGUARD Gold  Certified
  • Conforms to ANSI/UL STD. 60950-1
  • Certified to CAN/CSA STD. C22.2
  • 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
  • Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
