Elite Screens Spectrum AcousticPro UHD Series is a versatile electric motorized screen that fits perfectly in either residential or commercial wall/ceiling applications. The AcousticPro UHD material is designed to complement in-wall speakers while allowing sound to pass through the material with minimal attenuation. Its tight perforated weave material allows a superior AT performance without sacrificing picture quality. Infrared and *Radio Frequency remote controls are included along with a wall box controller and 12-volt trigger capability. *SWIFT-RC1 Version OnlyDescription:
Available in the following front projection materials
| Material Name |
Gain |
Viewing Angle |
Description |
| AcousticPro UHD |
1.0 |
180° |
AcousticPro UHD is an acoustically transparent front projection screen. It is 4K ultra HD ready and moire-free from visual artifacts. Recommended for rooms with controlled lighting. Works with Standard, 1080P/4K projectors. |
Screen Material
- Active 3D, 4K Ultra HD, and HDR Ready
- Not compatible with Ultra/Short-throw Projectors

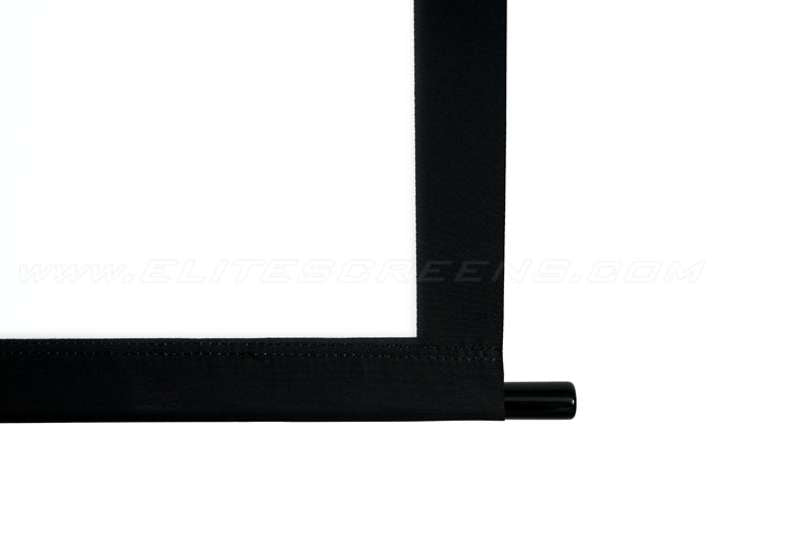

- Standard black masking borders
- Available in the following diagonal sizes:
- 100″, 125″ and 135″ in 16:9 format
Control, Design and Installation

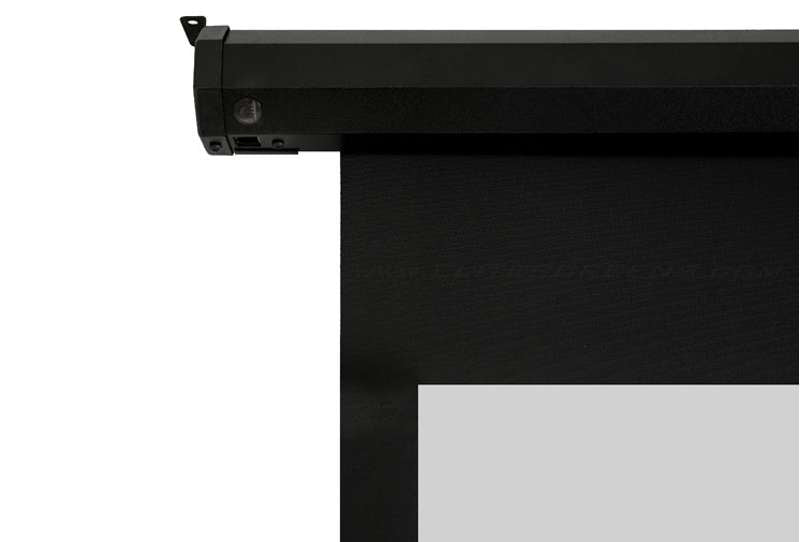

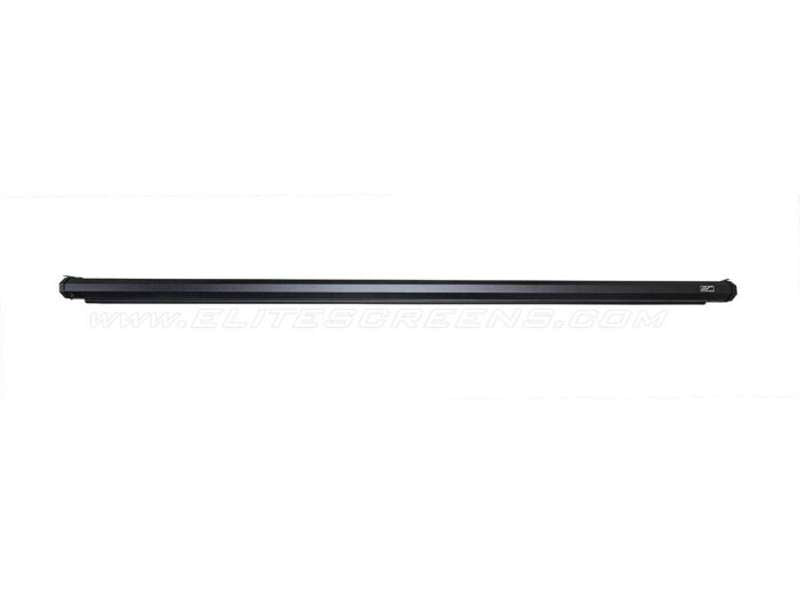

- Durable steel case includes endcaps for wall or ceiling mount options
- Plug & Play design with built-in low voltage control system, no hardwire installation required
- Includes handheld (IR) Infrared and (RF) Radio Frequency (SWIFT-RC1 Version Only) remote controls, and a wall box controller for manual on-wall operation.
- User-friendly programmable vertical drop position for easy installation (SWIFT-RC1 Version Only)
- Wall box controller is detachable for a clean look while maintaining RF & IR functionality
- Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference (SWIFT-RC1 Version Only)
- 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
- Wired 12v trigger capability via wall box controller (SWIFT-RC1 Version Only)
- Wireless 12v trigger capability via Radio Frequency remote control
- 6″ and 12″ L brackets – sold separately
Quality and Reliability
- Tubular motor allows swift operation and speed
- Synchronous motor allows silent operation with extended operational longevity and low power consumption
- Certified by AMX and CRESTRON
- AcousticPro UHD: Flame Retardant: Complies with NFPA 701 Standards
- Conforms to ANSI/UL STD. 60950-1
- Certified to CAN/CSA STD. C22.2
- 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
- Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
