DBX 560A Compressor/Limiter - 500 Series

by DBX
SKU DBX560A

MSKU: 560A

Original price $289.00 - Original price $289.00
Original price
$289.00
$289.00 - $289.00
Current price $289.00
Call to Order

Free shipping on all orders.

Typically ships in 2-4 days. Call or chat for current availability.

Specifications
Taa: 0
Request special pricing on this product

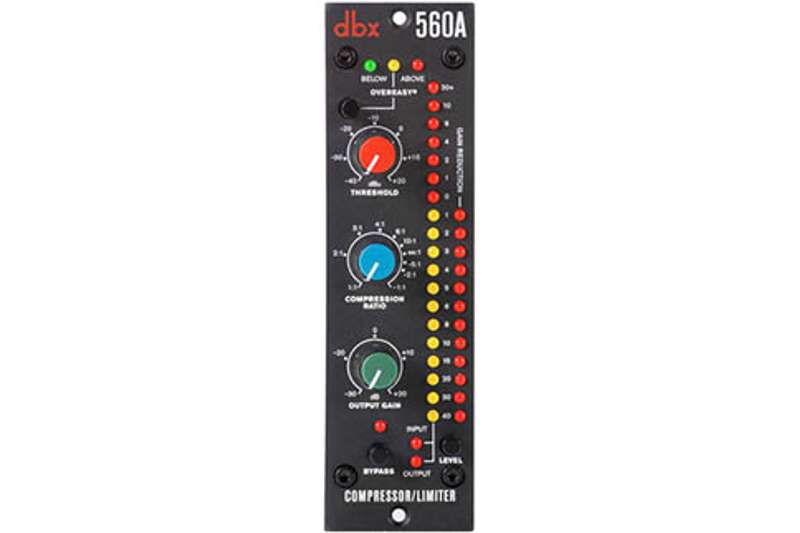

560A Compressor/Limiter - 500 Series

The dbx 560A Compressor/Limiter offers legendary VCA-based compression in the increasingly popular 500 Series format. dbx has a much-heralded history with modular processors dating back to our 900 Series and the 560A continues that tradition.

Featuring the same switch-selectable OverEasy® and Hard Knee compression curves as our industry-standard dbx 160A rackmount processor, the dbx 560A will be your new workhorse compressor! With extremely wide-ranging threshold, ratio and output controls and true RMS level detection providing the most natural-sounding dynamics processing available, the 560A will provide punch to drums, bass, vocals, almost anything! It’s also versatile enough to go from subtle compression to "brick wall" peak limiting.

Choose low ratios and OverEasy compression to expertly smooth out fluctuating vocal and instrumental levels, or use the 560A's Hard Knee compression and high ratios for bombproof protection against overload distortion in digital recording, P.A. systems and broadcast signals.

The 560A's 19-segment, switchable Input/Output LEDs and 12-segment Gain Reduction LEDs provide precise analysis at a glance. And, the dbx 560A's unique "INFINITY +" inverse-compression mode actually decreases the audio output level below unity gain when the input exceeds threshold, a real lifesaver for correcting overbearing vocal choruses and controlling runaway mix levels.

Features

  • OverEasy® or classic hard knee compression with dbx’s ultra-musical program dependent attack and release times
  • Compression ratio variable from 1:1 through infinity:1 to -1:1
  • Precise RMS gain reduction and input/output meter displays with calibration control for different operating levels
  • True RMS level detection
  • Exclusive Infinity+ compression using negative ratios
