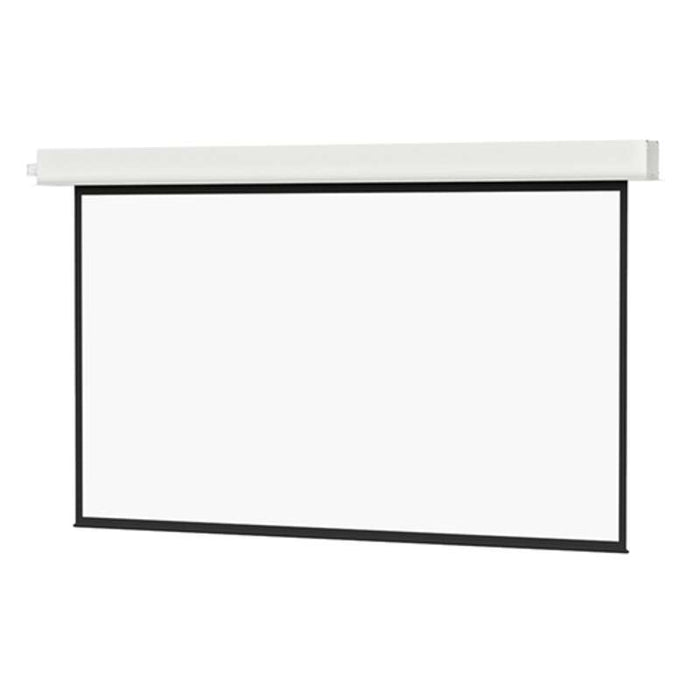

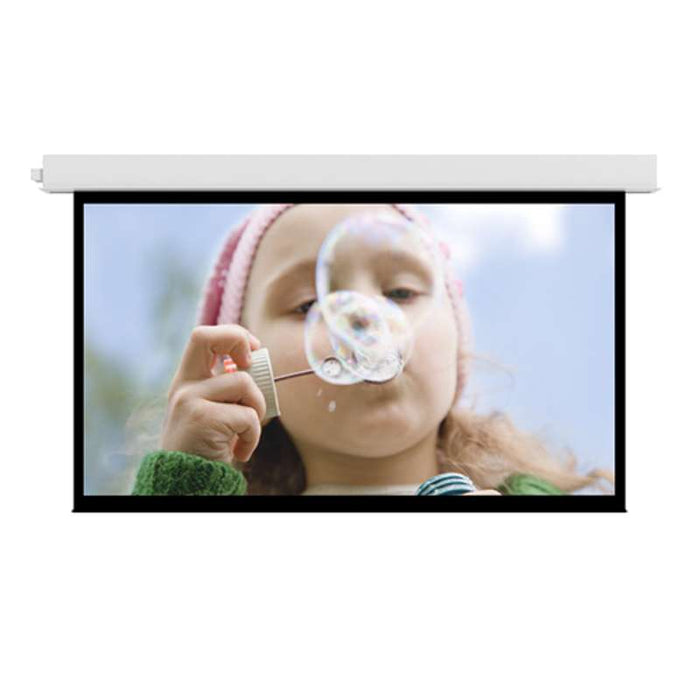

Da-Lite Advantage Series 189 Inch Diagonal Electric Screen

Da-Lite Advantage Series

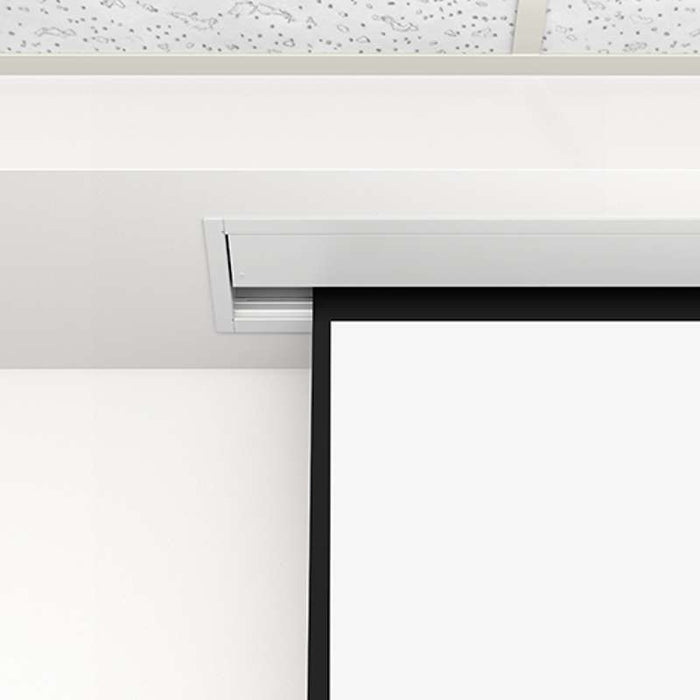

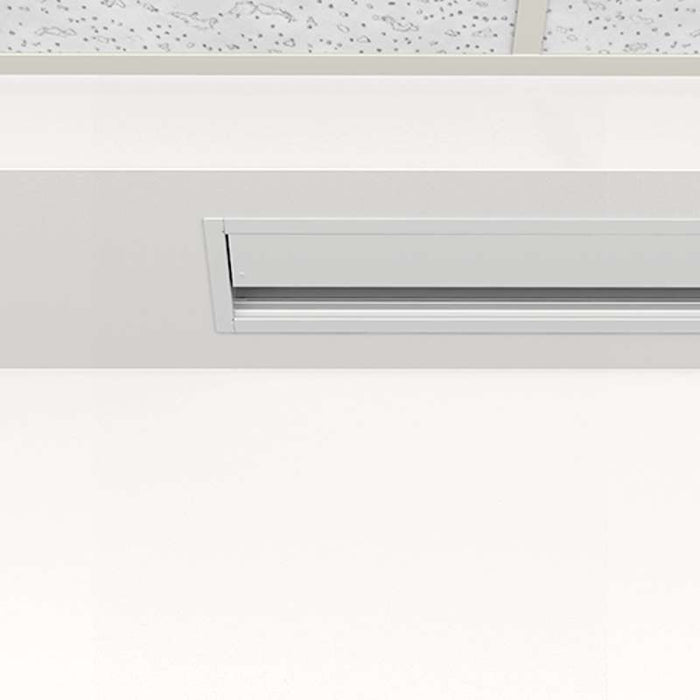

The Advantage® ceiling recessed electric screen series is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the screen is installed. Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage. Sliding installation brackets allow mounting flexibility for easy attachment of the screen housing to the structure above the drop ceiling. Advantage with SightLine™ Da-Lite’s new cable drop feature, SightLine, available with the tried-and-true Advantage (up to 184” Diagonal in 16:9 and up to 189” Diagonal in 16:10) electric screen, gives the impression of a floating screen. A suspension system in its single roller design features 3 or 4 thin cables eliminating the need for black drop – the black border above the projection screen. While the market is accustomed to specifying drop distance upon ordering, now vertical placement of the screen can be variable as the cables accommodate a range of drop distances up to 70" between the ceiling and the top of the screen – making ordering a snap. What’s more, this feature creates usable space above the viewing area to preserve architectural interests and provides the opportunity for camera/speaker placement. Enhanced aesthetics, painless ordering, smooth installation and future proofing for height adjustability – this is the fine line between status quo and jaw drop.

Key Features

• Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexibility
• UL Plenum rated case
• White powder-coated case for a clean aesthetic
• Decora-style, three-button wall switch
• Standard black backing retains projected brightness on front projection surfaces
• Seamless surfaces in all models
