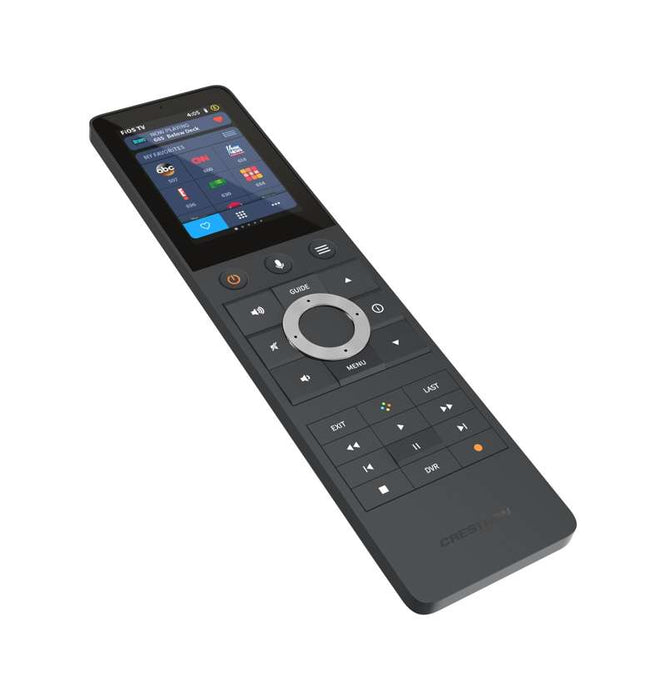

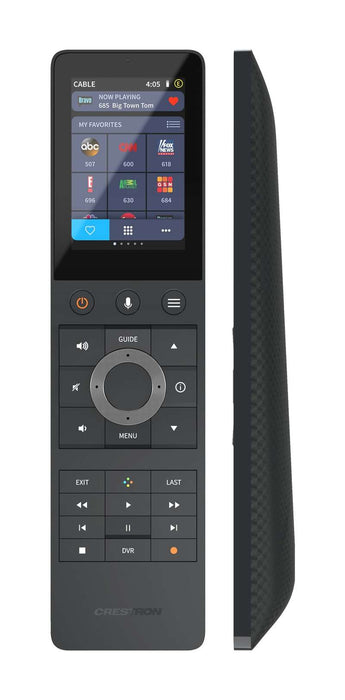

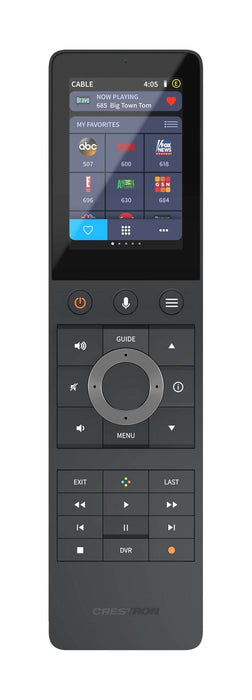

TSR-310-B Handheld Touch Screen Remote Black
The Crestron TSR-310 is a durable handheld remote with a 3 in. (76 mm) color touch screen, backlit buttons, voice control capability, and enhanced Wi-Fi® network wireless communications. Movement sensing wakes the remote when it is handled, ensuring it is always ready to be used. The TSR-310 may also be paired with Crestron Home® OS and other Crestron control solutions for complete control over audio, video, lighting, shades, and other amenities.
The TSR-310 is available in black or white.
Backlit Tactile Buttons
Backlit tactile buttons provide access to everything needed to watch TV, listen to music, navigate on-screen menus, and browse through media titles. Each button is labeled for easy operation. The metal-plated five-way thumbpad enables directional navigation in normal use and changes colors when placed in four-color mode to provide access to the green, blue, red, and yellow option buttons. These colored buttons are used to access special functions.
Each button on the TSR-310 is fully programmable for adjusting audio volume and changing channels, browsing a media library or program guide, controlling a DVR or DVD player, or operating a pan/tilt camera.
Touch Screen with Smart Graphics Technology
The TSR-310 features a high-resolution, high-contrast capacitive touch screen that enables fully customizable control over a wide array of devices. Crestron Smart Graphics® technology delivers an intuitive touch screen experience with fluid gesture-driven controls, kinetic effects, animated feedback, rich metadata, embedded apps and widgets, and personalized themes.
Performance UI for Crestron Home
Performance UI is a built-in software program for the TSR‑310 that provides a preprogrammed graphical interface for controlling a Crestron Home system. With Crestron Home, media, light, shades, and quick actions can be controlled directly from the remote. Scrolling menus of channel presets and media titles appear on the touch screen to access all your favorite TV channels, radio stations, movies, and music. User profiles are also provided to give users custom control over the media system, including the ability to save favorites for easy access.
Real-time lighting levels, shade positions, and thermostat modes are graphically displayed and can be adjusted with a simple finger stroke. Real-time Performance UI also supports voice control commands if Crestron Home is paired with a voice provider service.1,2
Voice Recognition
With built‑in voice recognition, spoken commands to the TSR-310 can quickly turn devices on or off, change the channel, choose a lighting scene, lower the window shades, lock the doors, or arm the security system. Simply press the voice button and say a command to have the TSR-310 execute the action.1,2
Movement Sensor
A built-in accelerometer wakes the TSR-310 instantly whenever it’s picked up or moved, so it’s always ready for use.
Instant-Waking Technology
The TSR-310 wakes instantly at the press of a button and transmits the command within milliseconds using Instant-Waking® Technology. Actions like muting audio, pausing video, or changing channels can be executed, even with the remote left lying on an armrest or placed in its charging dock.
Auto brightness Control
The TSR-310 includes a built-in light sensor, which regulates the brightness of the touch screen display and button backlight according to the light level in the room.
Advanced Wi-Fi Wireless Performance
Crestron enhanced Wi-Fi performance is optimized to deliver fast, dependable wireless communications with 50 ft (15 m) omnidirectional range (conditions permitting). The choice of 802.11 a, b, g, and n protocols offers reliable, high-speed wireless connectivity in any RF environment. For Wi-Fi networks with multiple access points, the TSR-310 supports the ability to hand off communication from one wireless access point (WAP) to another if an active connection is lost.3
NOTE: The TSR-310 has been tested and verified to work with wireless access points from a variety of leading manufacturers. Please view the TSR-310 Wireless Access Point Configuration Guide for recommended WAP manufacturers and configurations.
Extended Battery Life
To conserve power, the TSR-310 goes into a sleep mode when not in use. In sleep mode, the TSR-310 maintains a low level connection to the wireless access point, ensuring instantaneous response upon waking. Maximum battery life and performance are ensured only when using a Crestron verified wireless access point. Under typical use, the TSR-310 can operate continuously for 5.5 hours between charges.
A replacement battery pack (TSR-310-BTP) is also available.
Table Dock Charger
The TSR-310-DS table dock is included and provides for charging the TSR-310 while occupying minimal space on the tabletop or shelf. When placed on the table dock, the remote remains upright and fully operational while charging.
A horizontal version of the dock (TSR-310-DS-H) may be ordered separately.
Third-Party Mounting Solution
The TSR-310 is compatible with Wall-Smart® retrofit mount products via a partnership with Crestron.
Key Features:
Customizable handheld wireless remote
Available in black or white
Ergonomic and rugged design
3 in. (76 mm) HVGA capacitive color touch screen with Smart Graphics® technology
Backlit buttons for AV/DVR control and on-screen menu (OSM) navigation
Five-way navigation pad changes colors when accessing the four-color buttons mode
Preprogrammed graphical interface for controlling Crestron Home® OS
Voice recognition executes functions using spoken commands
Fully programmable functionality via a Crestron control system
High-performance Wi-Fi® wireless communications
Movement sensing wakes the remote when picked up
Instant-Waking® technology executes button presses without picking up the remote
Autobrightness control maintains optimal visibility
Setup and diagnostics via touch screen or web browser
Li-Polymer rechargeable battery
Space-saving table dock charger
