MPC4-302-W – 4-Series® Media Presentation Controller 302, White
- Integrated 4-Series® Control System® processor and wall-mounted control panel
- Ten customizable backlit buttons with replaceable labels
- Rotary volume control with illuminated circular volume gauge
- Dedicated power and mute buttons for streamlined operation
- Built-in .AV Framework™ software for rapid setup and deployment
- PoE+ powered installation with a single network connection
- Onboard Cresnet®, RS-232, IR, relay, and Versiport® control interfaces
- XiO Cloud® provisioning, monitoring, and management support
- Enterprise-grade security with advanced authentication and encryption
- Designed for flush mounting in a standard 3-gang U.S. electrical box or optional tabletop installation
The Crestron® MPC4-302-W combines a powerful 4-Series® Control System processor and an intuitive room control interface in a single wall-mounted device. Finished in a sleek white design, it is ideal for classrooms, conference rooms, training facilities, lecture halls, and collaborative workspaces where centralized control of AV systems and room technologies is essential.
By integrating a fully featured control processor and user interface into one device, the MPC4-302-W reduces installation complexity while providing enterprise-grade control, automation, security, and management capabilities.

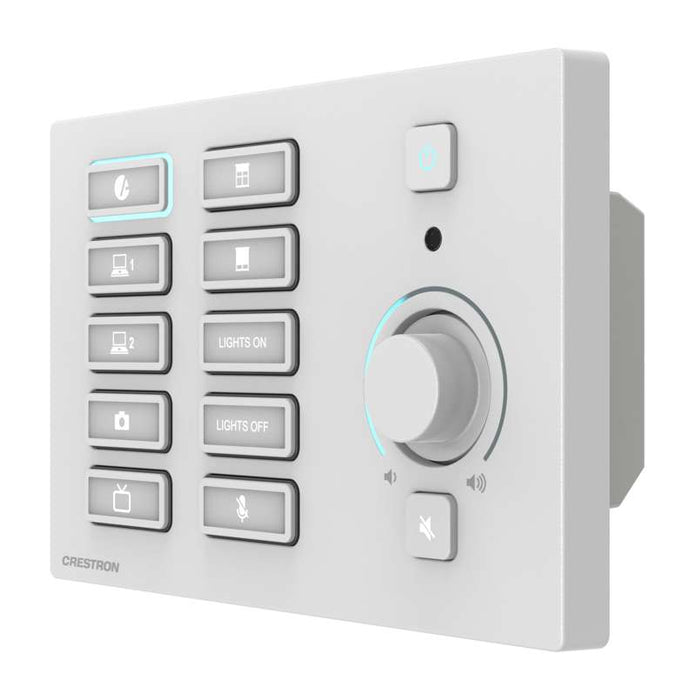

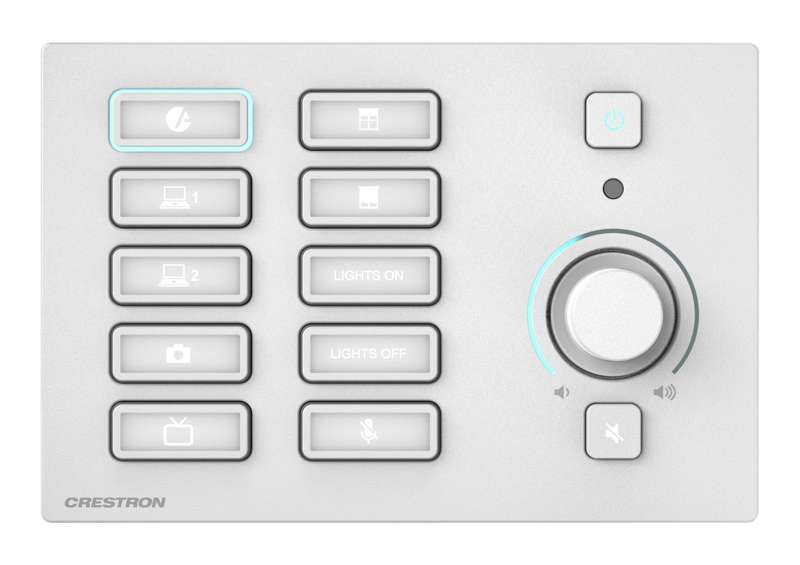

Customizable Backlit Controls
The MPC4-302-W features ten programmable backlit buttons that can be customized using supplied icon chips or optional laser-engraved labels. Each button illuminates blue when active and white when inactive, providing users with clear visual feedback and source selection status.
An integrated rotary volume knob is surrounded by an illuminated circular volume gauge for intuitive audio adjustment. Dedicated power and mute buttons ensure quick access to essential room functions, while automatic brightness control maintains optimal visibility in changing lighting conditions.
Integrated 4-Series® Control Engine
Powered by Crestron's advanced multicore 4-Series® Control System platform, the MPC4-302-W delivers exceptional performance, reliability, and scalability. The enhanced processing architecture supports sophisticated automation workflows and seamless integration with AV equipment, lighting systems, motorized shades, environmental controls, and building technologies.
The controller works seamlessly with Crestron touch screens, wireless remotes, mobile applications, and XPanel® web-based interfaces, creating a consistent user experience throughout an organization.
Rapid Deployment with .AV Framework™
Built-in .AV Framework™ technology simplifies deployment with ready-to-use AV control functionality and easy web-based configuration. Organizations can deploy standardized room control systems quickly while reducing programming time and installation costs.
For more complex applications, the platform also supports drag-and-drop programming, symbol-based programming environments, and C# development with full Unicode multilingual support.
XiO Cloud® Provisioning & Management
Native support for XiO Cloud® enables centralized provisioning, monitoring, configuration, and management of Crestron devices across enterprise deployments. Installers can preload configurations before installation, while administrators can remotely manage devices throughout their lifecycle.
Built on Microsoft Azure®, XiO Cloud provides enterprise-level scalability and simplifies management of large device deployments across multiple facilities and geographic locations.
Enterprise-Grade Security
The MPC4-302-W incorporates robust security technologies to support modern IT requirements, including:
- 802.1X network authentication
- Active Directory® integration
- SSH secure communications
- TLS encryption
- HTTPS secure management
- SNMP V3 support
- Native BACnet™ network/IP support
- IPv6 readiness
These capabilities help organizations securely deploy room control systems while maintaining compliance with enterprise security standards.
PoE+ Powered Installation
Using Power over Ethernet Plus (PoE+), the MPC4-302-W receives both power and network connectivity through a single Ethernet cable. This simplifies wiring requirements, eliminates the need for dedicated local power supplies, and reduces overall installation costs.
Built-In Cresnet® Connectivity
The integrated Cresnet® server port provides connectivity for Crestron keypads, lighting controls, shade motors, occupancy sensors, thermostats, and other building automation devices. The controller can directly support approximately 20 Cresnet devices and can be expanded further using Cresnet hubs or Ethernet-to-Cresnet bridges.

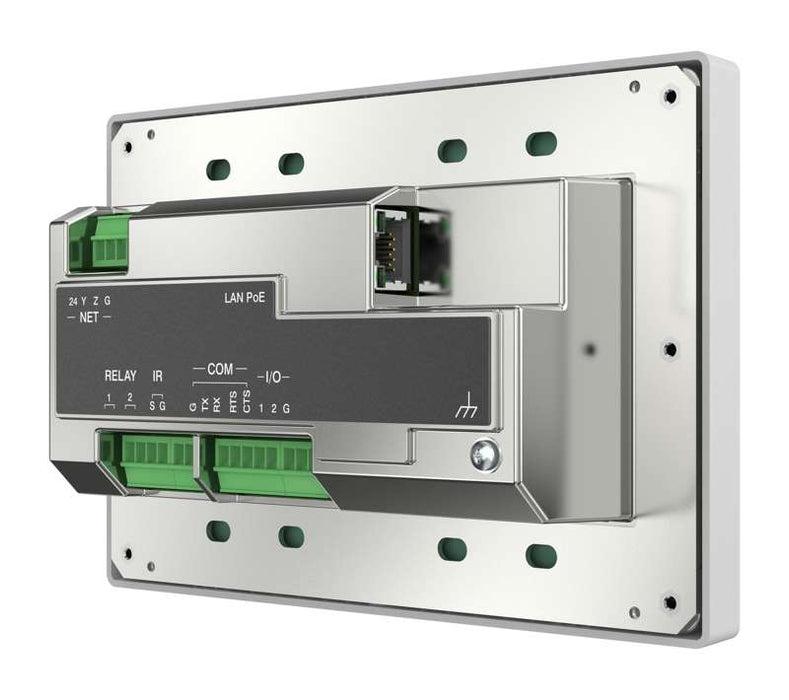

Comprehensive Onboard Control Ports
The MPC4-302-W includes a range of integrated control interfaces for direct connection to third-party equipment:
- High-speed Ethernet LAN port
- Bidirectional RS-232 serial control port
- IR control port
- Two programmable relay outputs
- Two Versiport® I/O ports
- Cresnet® network connection
These built-in interfaces enable control of displays, projectors, document cameras, projection screens, lifts, sensors, and numerous other devices without requiring additional hardware.
Flexible Installation Options
Designed for flush mounting in a standard 3-gang U.S. electrical box, the MPC4-302-W delivers a clean, professional appearance in modern learning and collaboration environments. It can also be installed in lecterns, podiums, and custom furniture applications.
The removable front cover allows button labels to be updated easily as room requirements evolve, while the included security screw helps prevent unauthorized removal.
Optional Tabletop Configuration
When paired with an optional Crestron tabletop kit, the MPC4-302-W can be transformed into an elegant freestanding control station for conference tables, executive boardrooms, desks, training rooms, and reception areas.
Ideal Applications
- Conference and meeting rooms
- Boardrooms and executive briefing centers
- Classrooms and lecture halls
- Training facilities
- Corporate collaboration spaces
- Government and public sector facilities
- Higher education campuses
- Smart building and room automation
