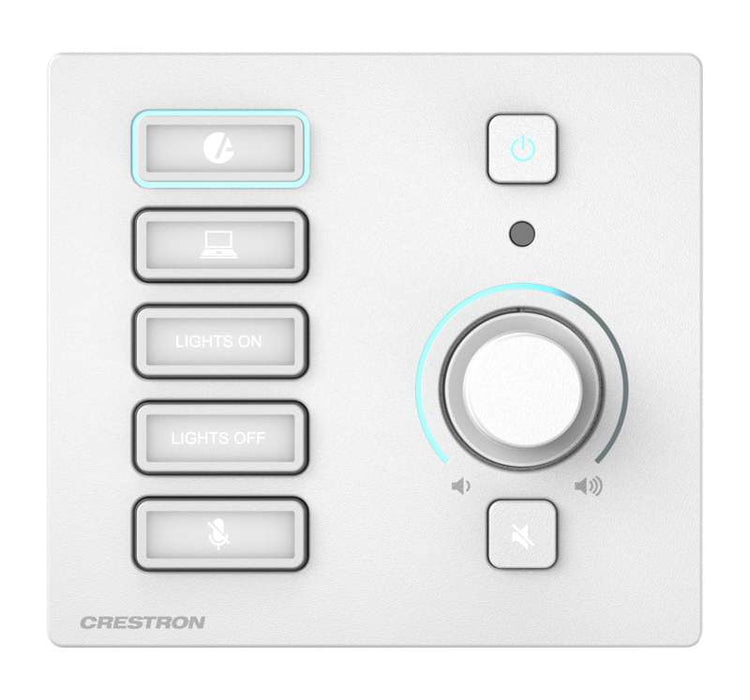

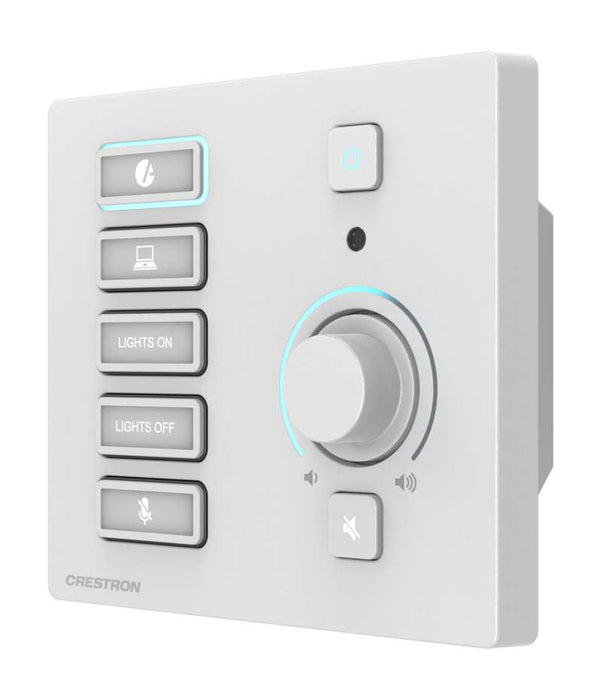

MPC4-301-W – 4-Series® Media Presentation Controller 301, White
- Integrated 4-Series® Control System® processor and wall-mounted control panel
- Five customizable backlit buttons with replaceable labels
- Rotary volume control with illuminated circular volume gauge
- Dedicated power and mute buttons for simplified operation
- Built-in .AV Framework™ software for rapid deployment and configuration
- PoE+ powered installation with a single network connection
- XiO Cloud® provisioning, monitoring, and device management support
- Enterprise-grade security with 802.1X, Active Directory®, SSH, TLS, and HTTPS
- Built-in Cresnet® connectivity for lighting, shading, and building system integration
- Flush-mount design for standard 2-gang U.S. electrical boxes
The Crestron® MPC4-301-W combines a powerful 4-Series® Control System processor with an intuitive wall-mounted control interface in a sleek white finish. Designed for classrooms, meeting rooms, lecture halls, training facilities, and collaborative environments, it provides centralized control of displays, AV systems, lighting, shades, and building automation technologies from a single device.
Powered through Power over Ethernet Plus (PoE+), the MPC4-301-W simplifies installation while delivering the performance, security, and scalability required for modern enterprise control applications.
Customizable Backlit Controls
The MPC4-301-W features five programmable backlit buttons that can be customized using supplied icon inserts or optional laser-engraved labels. Each button illuminates blue when active and white when inactive, providing clear visual indication of selected sources, room modes, or automation functions.
An integrated rotary volume knob is surrounded by an illuminated circular volume gauge, allowing users to easily adjust audio levels. Dedicated power and mute buttons provide fast access to essential room controls, while automatic brightness adjustment ensures optimal visibility in changing ambient light conditions.
Integrated 4-Series® Control Engine
Equipped with Crestron's advanced multicore 4-Series processor, the MPC4-301-W delivers exceptional performance and responsiveness for sophisticated room automation and AV control applications. The powerful processing platform supports secure integration with a wide range of technologies and control devices.
The controller works seamlessly with Crestron touch screens, wireless remotes, mobile applications, and web-based interfaces, enabling a consistent and scalable user experience throughout the organization.
Rapid Deployment with .AV Framework™
Built-in .AV Framework™ software enables fast and efficient deployment without extensive programming. Through a web-based setup interface, installers can quickly configure room control functionality and accelerate project delivery.
For advanced customization, the platform also supports drag-and-drop programming, symbol-based programming, and C# development environments.
XiO Cloud® Provisioning & Management
Native support for XiO Cloud® enables remote provisioning, monitoring, configuration, and lifecycle management of Crestron devices across enterprise deployments. Systems can be configured and managed centrally, reducing installation time and simplifying support operations.
Built on Microsoft Azure®, XiO Cloud provides enterprise-level scalability for managing thousands of connected devices across multiple locations.
Enterprise-Grade Security
The MPC4-301-W incorporates comprehensive security technologies designed for modern IT environments, including:
- 802.1X network authentication
- Active Directory® integration
- SSH secure communications
- TLS encryption
- HTTPS management
- SNMP V3 support
- IPv6 readiness
These enterprise-class capabilities help ensure compliance with organizational security policies while enabling deployment across education, corporate, government, and healthcare environments.
PoE+ Powered Installation
Utilizing Power over Ethernet Plus (PoE+), the MPC4-301-W receives both power and network connectivity through a single Ethernet connection. This eliminates the need for local power supplies and reduces installation costs and complexity.
Compatible Crestron PoE+ switches provide a complete networking and power delivery solution for integrated room control systems.
Cresnet® Integration
Built-in Cresnet® connectivity enables direct integration with Crestron lighting controls, motorized shades, occupancy sensors, thermostats, keypads, and other automation devices.
The integrated Cresnet server supports approximately 20 connected Cresnet devices, providing a reliable control infrastructure for room and building automation applications.

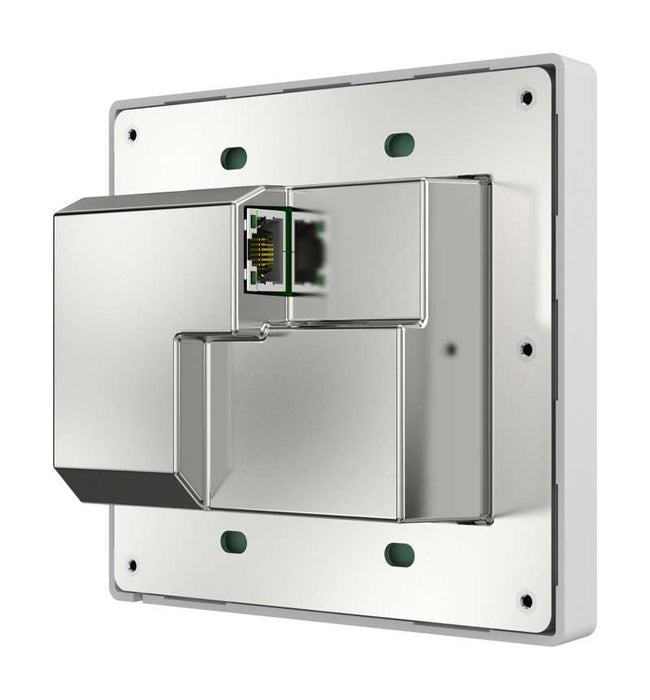

Professional Wall Mount Installation
The MPC4-301-W is designed for flush mounting in a standard 2-gang U.S. electrical box. Its elegant white finish complements contemporary room designs while maintaining a clean, professional appearance.
The removable faceplate allows button labels to be updated as room requirements evolve, ensuring flexibility throughout the life of the installation.
Ideal Applications
- Conference and meeting rooms
- Classrooms and lecture halls
- Training facilities
- Corporate collaboration spaces
- Boardrooms and executive briefing centers
- Government facilities
- Higher education campuses
- Smart building and room automation deployments
