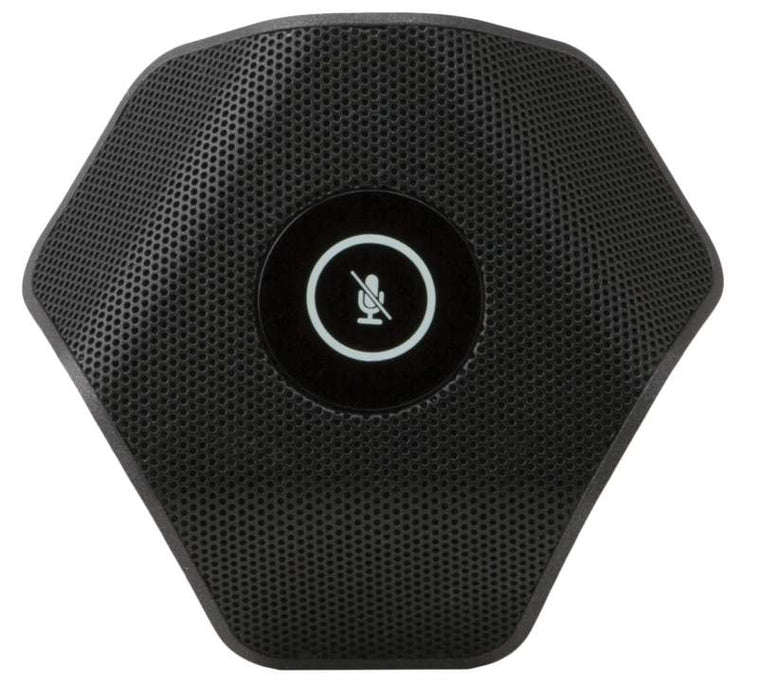

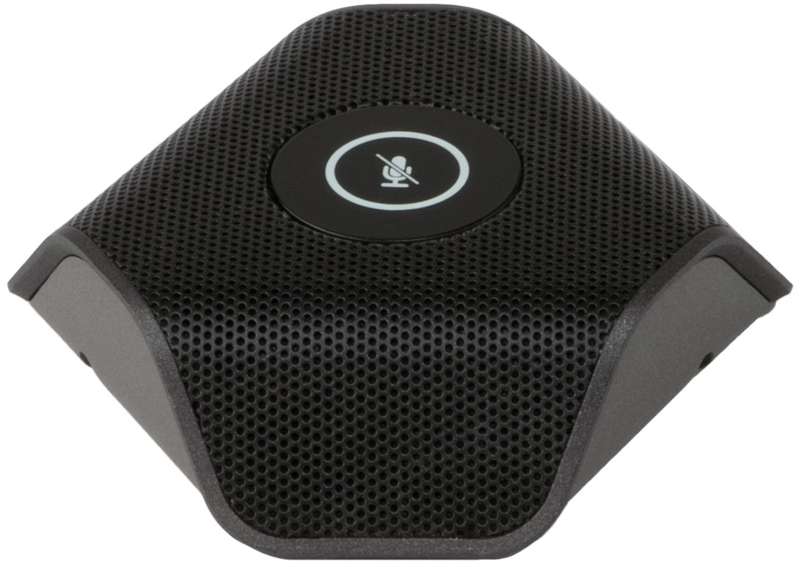

Microphone Pod (CCS-UCA-MIC )
Extension microphone for use with the Crestron Flex Tabletop Conference System.
- Attractive, low-profile design
- 360° pickup with 20 ft (6 m) range
- Microphone mute button and indicator
- Home-run or daisy-chain wiring options
- 12 ft (3.7 m) cable included
- Powered via the tabletop conference device
The CCS-UCA-MIC is a low-profile extension microphone pod designed exclusively for use with a Crestron Flex Tabletop Conference System. Up to two mic pods may be connected to a single conference device to extend its pickup range to cover large tables.
Optionally, two microphone pods may be daisy-chained, or connected to the mic pod ports on the rear of the conference device, using the cables provided with each microphone pod.
Specifications
Audio
- Microphone: Triple mic array with (3) cardioid electret elements
- Pickup Range: 20 ft (6 m) typical, 360°
Buttons & Indicators
- Mic Mute: (1) Capacitive button with bi-color LED, button switches between mute and unmute (affects all system mics), illuminates red when the mic is muted, illuminates green when the mic is unmuted if a USB device is connected to the conference device or a SIP call is active
Connectors
- IN: (1) RJ9 4P4C connector, female; For connection to the conference device or to the first CCS-UCA-MIC in a daisy chain; 12 ft (3.7 m) cable included
- OUT: (1) RJ9 4P4C connector, female; For connection to the second CCS-UCA-MIC in a daisy chain (not included)
Power
Powered via the conference device through the A²B bus. The conference device must be powered using the PW-2420RU power pack provided with all compatible conference devices.
Environmental
- Operational Temperature: 32° to 95° F (0° to 35° C)
- Storage Temperature: -4° to 160° F (-20° to 70° C)
- Humidity: 5% to 95% RH (non-condensing)
Dimensions
- Height: 0.97 in (25 mm)
- Width: 3.81 in (97 mm)
- Depth: 3.42 in (87 mm)
Weight
6 oz (170 g)
