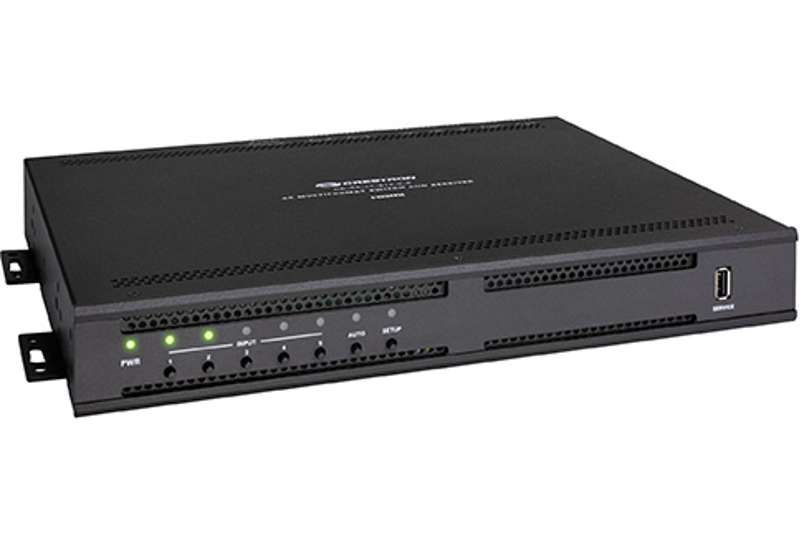

Crestron DMPS Lite 4K 5x1 AV Switch & Receiver

HD-RX-4K-510-C-E DMPS Lite™ 4K Multiformat 5x1 AV Switch and Receiver

Compatible with all DM Lite™ transmitters. Features three DM Lite inputs, two HDMI® inputs, and one scaling HDMI output. Includes amplified audio outputs for speakers, five analog audio inputs, and two analog audio outputs. Also includes IR, RS-232, relay, I/O, and Ethernet control ports. Supports .AV Framework technology.

The Crestron® HD€˜RX€˜4K€˜510€˜C€˜E multiformat AV switch and receiver provides enhanced HDMI® video switching and audio presentation capabilities in areas such as conference rooms and classrooms. Compatible with all DM Lite™ transmitters, the HD€˜RX€˜4K€˜510€˜C€˜E provides three DM Lite inputs for connection to up to three transmitters. A CATx (CAT5e or higher) twisted pair cable connects a transmitter to the HD€˜RX€˜4K€˜510€˜C€˜E for the transmission of HDMI signals. For resolutions up to 2K, the maximum transmission distance is 230 ft (70 m). For higher resolutions up to 4K, the maximum transmission distance is 130 ft (40 m).

Key Features

• 4K/60 4:2:0 capability
• Three DM Lite™ ports for interoperability with up to three DM Lite transmitters
• Two HDMI® inputs
• One HDMI output with 4K scaler
• Gigabit Ethernet port
• Two stereo line level inputs, two mono microphone inputs, and one mono auxiliary audio input
• Built-in amplifier with 25 W per channel for 4- or 8-ohm stereo speakers
• Two stereo auxiliary outputs
• IR, RS-232, relay, and I/O control ports
• CEC (Consumer Electronics Control) capability
• Automatic switching of inputs
• 6x2 audio mixing capability
• EDID management
• HDCP management including HDCP 2.2 support
• Built-in web interface for easy configuration and monitoring
• Compatibility with Crestron® 3-Series® or later control systems
• .AV Framework™ technology support
• Crestron XiO Cloud™ service support
• Compact surface-mount design
