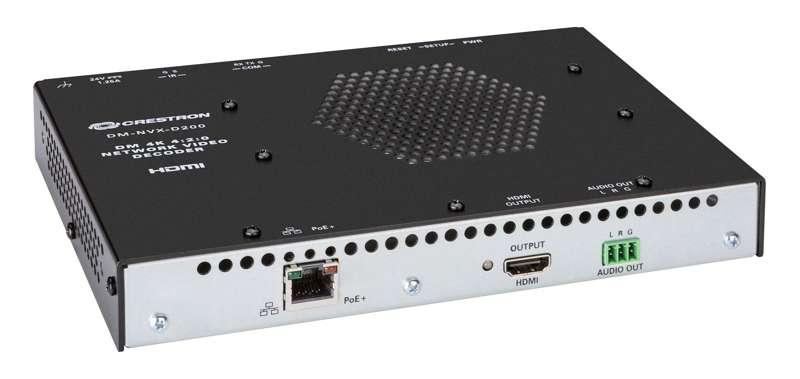

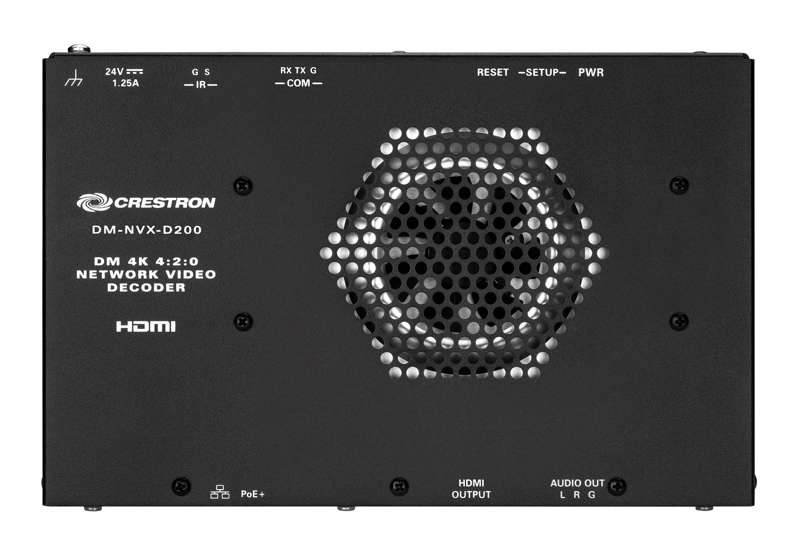

DM NVX 4K60 4:2:0 Network AV Decoder with Scaler
- Supports video resolutions up to 4K60 4:2:0 and 4K30 4:4:4 over standard Gigabit Ethernet
- Dedicated AV-over-IP decoder with integrated 4K scaler
- Real-time video performance with no perceptible latency
- Enterprise-grade security including 802.1X, TLS, Active Directory®, and AES-128 encryption
- HDMI® output with built-in video scaling
- Video wall processing for up to 64 displays
- AES67 audio embedding and de-embedding support
- 7.1 surround sound audio support
- Analog audio de-embedding
- PoE+ powered Gigabit Ethernet connectivity
- RS-232, IR, and CEC device control integration
- Compact, surface-mountable design
The DM-NVX-D200 is a high-performance DM NVX® AV-over-IP decoder designed to deliver visually lossless 4K video and audio distribution across standard Gigabit Ethernet networks. Built for enterprise, education, digital signage, and campus-wide AV deployments, the DM-NVX-D200 provides a cost-effective and reliable solution for decoding network-based AV streams with no perceptible latency.
Featuring secure web-based management, integrated video scaling, HDMI® output, AES67 audio support, and PoE+ connectivity, the DM-NVX-D200 offers exceptional flexibility for modern AV-over-IP environments while maintaining the performance and reliability expected from the DM NVX platform.
Real-Time 4K Video Performance
Engineered for demanding collaboration and presentation environments, the DM-NVX-D200 supports resolutions up to 4K60 4:2:0 and 4K30 4:4:4 over a standard Gigabit Ethernet network. Whether displaying presentations, live camera feeds, videoconferencing content, or digital signage, the decoder provides smooth, real-time playback with fluid interaction and synchronized output across multiple displays.
Line-synchronized outputs ensure content remains perfectly aligned across video walls and multi-display deployments, while Variable Multicast TTL support enables AV streams to traverse multiple network routers for greater deployment flexibility.
Enterprise-Grade Security
Built to meet stringent IT requirements, the DM-NVX-D200 incorporates advanced security technologies including 802.1X authentication, Active Directory® credential management, AES-128 content encryption, PKI authentication, TLS, SSH, and HTTPS. These security features help protect content and ensure secure integration within enterprise networks.
Advanced Decoder Functionality
The DM-NVX-D200 is optimized for use with DM-NVX-E10 and DM-NVX-E20 encoders while remaining interoperable with other compatible DM NVX encoder products. Incoming AV streams are decoded and delivered to connected displays through the HDMI output, while the built-in scaler automatically adjusts the source resolution to match the native resolution of the display for optimal image quality.
Integrated 4K Video Scaling
The integrated video scaler ensures every display receives the best possible image, regardless of source resolution. By scaling content up or down as needed, the DM-NVX-D200 simplifies display integration and enhances visual performance in mixed-resolution environments.
Video Wall Processing
The DM-NVX-D200 supports advanced video wall processing capabilities for deployments requiring large-format display arrays. Multiple DM NVX endpoints can be combined to create video walls of up to 64 displays in an 8-by-8 configuration, with adjustable zoom settings and bezel compensation to accommodate a wide range of display layouts.
Professional Audio Support
DM NVX technology supports the transport of high-quality multichannel audio, including Dolby® TrueHD, Dolby Atmos®, DTS-HD®, DTS:X®, and uncompressed linear PCM formats. Integrated analog audio de-embedding enables audio to be extracted from the AV stream and delivered as a stereo line-level signal for local sound systems, amplifiers, or soundbars.
Native AES67 support enables seamless interoperability with Crestron DSPs and third-party AES67-compatible audio systems. The decoder can receive and transmit AES67 audio streams, allowing audio to be combined with video and output through both HDMI and analog audio connections.
Simple Network Connectivity
A single RJ-45 Gigabit Ethernet port provides network connectivity and supports Power over Ethernet Plus (PoE+), eliminating the need for a separate power supply in many installations. The decoder can be deployed on dedicated AV networks or within existing enterprise infrastructures.
Automatic Point-to-Point Operation
For simple installations, the DM-NVX-D200 can connect directly to a compatible DM-NVX-E10 or DM-NVX-E20 encoder without requiring an Ethernet switch. The system automatically detects point-to-point connections and configures itself for operation, reducing deployment time and complexity.
Integrated Device Control
Built-in RS-232, IR, and HDMI CEC control capabilities allow connected displays and third-party devices to be controlled through the network. Display power and basic control functions can be automated even without a dedicated control processor, simplifying system design and operation.
Web-Based Setup and Management
Configuration and monitoring are performed through an intuitive web-based interface, enabling rapid setup and diagnostics. For larger deployments, centralized management is available through DM NVX Director® virtual switching appliances, providing streamlined configuration, routing, and monitoring of network-wide AV resources.
Compact Installation-Friendly Design

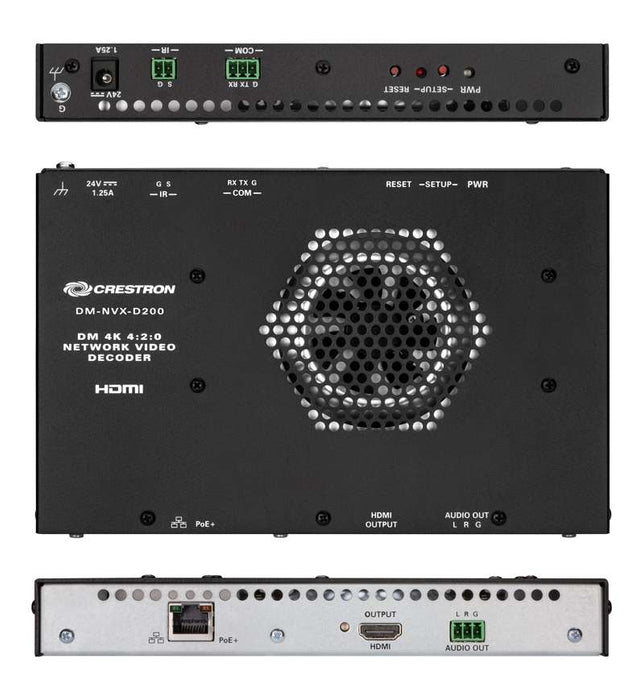

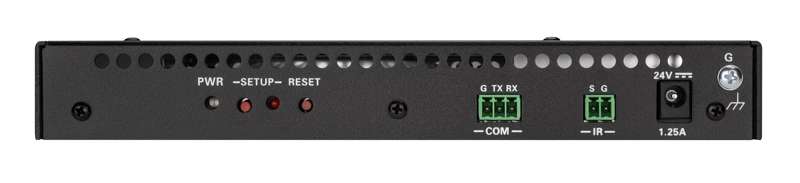

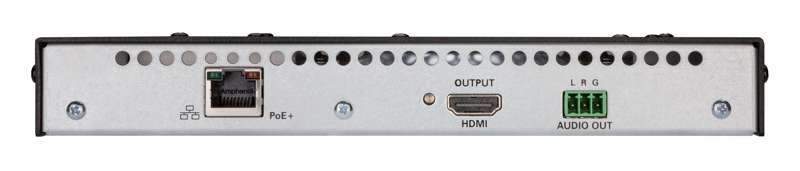

The DM-NVX-D200 features a compact, surface-mountable form factor that can be installed behind displays, above projectors, inside equipment racks, AV carts, or within cabinets. Front and rear connector placement provides convenient access for installation and servicing, while PoE+ support minimizes cabling requirements.
Ideal Applications
The DM-NVX-D200 is ideal for corporate meeting spaces, boardrooms, classrooms, lecture halls, digital signage networks, video walls, command centers, government facilities, and enterprise-wide AV distribution systems that require dependable, secure, and high-quality 4K AV-over-IP decoding.
