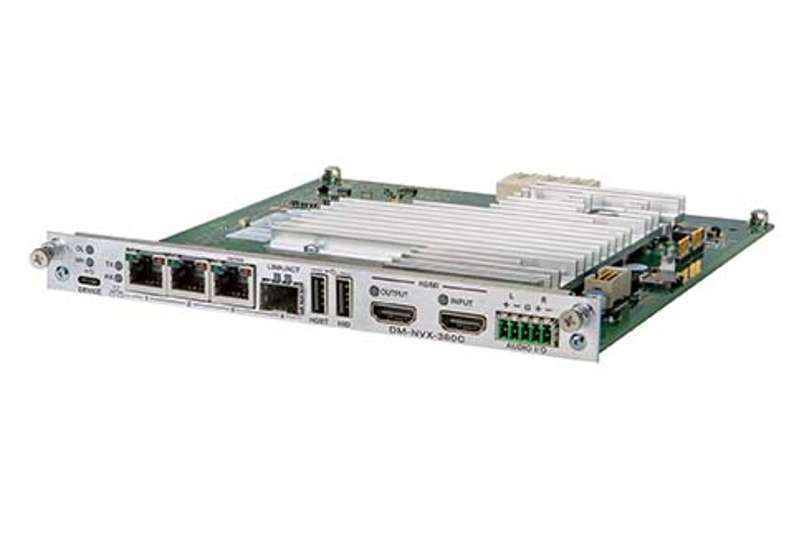

Crestron DM-NVX-360C AV Encoder/Decoder Card
Key Features
- 4K60 4:4:4 HDR video transport over standard Gigabit Ethernet
- Configurable as either encoder or decoder
- Occupies one slot in a DMF-CI-8 card chassis
- Supports HDCP 2.3 and onboard scaling
- Video wall processing for up to 64 displays
- USB 2.0 and KVM integration
- Secure web-based control and management
- Supports copper and fiber Ethernet connectivity
- Dynamic text overlay and image preview
- Background image support for on-screen display
- Built-in test pattern generator
- Fixed, adaptive, or variable bit rate streaming
- Analog audio embedding or de-embedding
- Supports 7.1 surround sound audio formats
- AES67 audio embedding and de-embedding
- Breakaway audio routing
- Enterprise-grade security protocols including 802.1X, AES-128, TLS, SSH, and HTTPS
Description
The DM-NVX-360C is a high-performance AV-over-IP encoder/decoder card designed for enterprise and campus-wide 4K content distribution. It delivers ultra high-definition 4K60 4:4:4 video with imperceptible latency over standard Gigabit Ethernet, making it ideal for demanding applications such as conference rooms, classrooms, and digital signage.
This versatile card can be dynamically configured as either an encoder or decoder, allowing flexible deployment in high-density rack-mount installations. It supports HDMI input and output with built-in scaling, ensuring optimal image quality across various display resolutions. The HDMI output can also serve as a confidence monitor or audio feed.
Advanced features include video wall processing for up to 64 displays, dynamic text overlay for messaging, and image preview capabilities. The card supports background images when no active video is displayed and includes a test pattern generator for setup and calibration.
Streaming options include fixed, adaptive, and variable bit rates, allowing efficient bandwidth usage while maintaining image quality. Audio capabilities include analog stereo input/output, support for 7.1 surround sound formats, and AES67 audio stream integration.
Security is enterprise-grade, with support for 802.1X authentication, Active Directory credential management, AES-128 encryption, and secure protocols like TLS, SSH, and HTTPS. The DM-NVX-360C is a scalable and secure solution for modern AV distribution needs.
