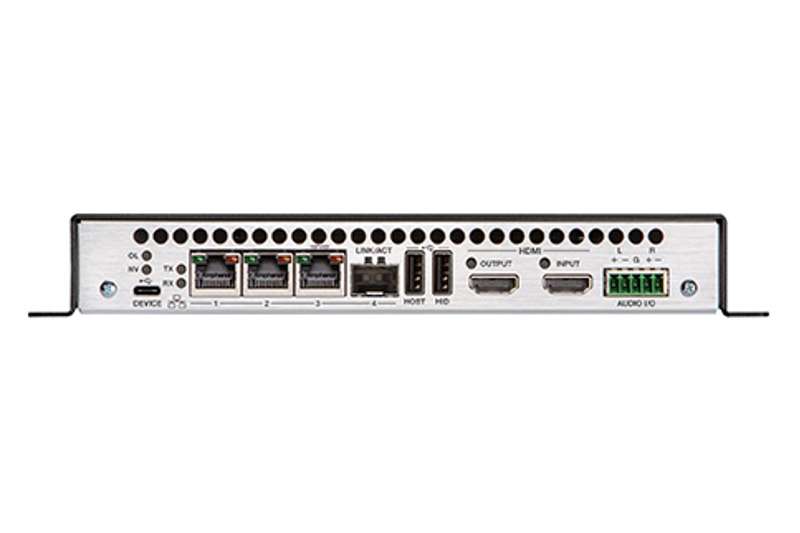

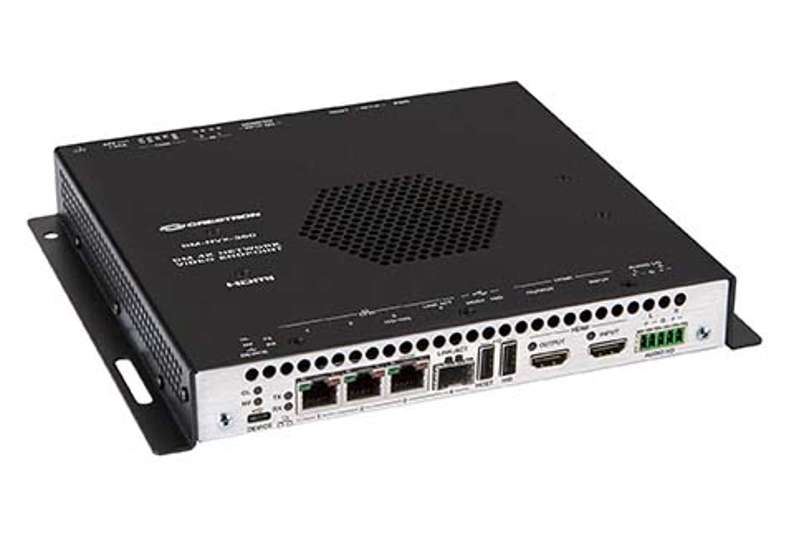

Crestron DM-NVX-360 4K60 4:4:4 HDR Network AV Encoder/Decoder
Key Features
- Functions as an AV over IP encoder or decoder
- Supports 4K60 4:4:4 video over standard Gigabit Ethernet
- HDR10, HDR10+, and Dolby Vision compatibility
- Pixel Perfect Processing technology for flawless video quality
- Real-time video performance with imperceptible latency
- HDCP 2.3 compliant for modern content protection
- One HDMI input and one HDMI output with built-in 4K60 scaler
- Video wall processing for up to 64 displays
- Dynamic text overlay and image preview capabilities
- Background image support for on-screen display
- Built-in test pattern generator
- Fixed, adaptive, or variable bit rate streaming
- Analog audio embedding or de-embedding
- Supports 7.1 surround sound audio formats including Dolby Atmos and DTS:X
- AES67 audio embedding and de-embedding
- Breakaway audio routing
- USB 2.0 and KVM signal extension and routing
- Copper and fiber Ethernet connectivity
- Device control via RS-232, IR, and CEC
- Enterprise-grade security: 802.1X, Active Directory, AES-128, TLS, SSH, HTTPS
- Easy setup via built-in web interface
- Compatible with Crestron XiO Cloud and DM NVX Director
- Compact, surface-mountable design
- Powered via PoE+ or optional power pack
Description
The Crestron DM-NVX-360 is a versatile and high-performance AV-over-IP solution designed to function as either an encoder or decoder. It delivers ultra high-definition 4K60 4:4:4 video with HDR support over standard Gigabit Ethernet, ensuring real-time performance with no perceptible latency or loss of quality. This makes it ideal for enterprise, education, and campus-wide content distribution.
Equipped with Pixel Perfect Processing technology, the DM-NVX-360 maintains flawless image quality across a 1-Gigabit network. It supports HDCP 2.3, onboard scaling, and video wall processing for up to 64 displays. The device includes one HDMI input and one HDMI output, which can be used for local monitoring or audio feed.
Advanced features include dynamic text overlay, image preview, and background image support for idle screens. The built-in test pattern generator aids in setup and calibration. Streaming options include fixed, adaptive, and variable bit rates, optimizing bandwidth usage while maintaining image fidelity.
Audio capabilities are robust, supporting analog stereo input/output, 7.1 surround sound formats, and AES67 audio stream integration. Breakaway audio routing allows separate video and audio sources to be combined for flexible configurations.
Security is enterprise-grade, with support for 802.1X authentication, Active Directory credential management, AES-128 encryption, and secure protocols like TLS, SSH, and HTTPS. The DM-NVX-360 also supports USB and KVM routing, RS-232, IR, and CEC control, and is compatible with Crestron XiO Cloud and DM NVX Director for streamlined management.
Compact and surface-mountable, the DM-NVX-360 is powered via PoE+ or an optional power pack, making it easy to deploy in a variety of environments. Whether used in a conference room, classroom, or digital signage setup, it offers a scalable and secure solution for modern AV distribution.
