HD-TX-201-C-2G-E-B-T DM Lite® Transmitter and 2x1 Auto-Switcher for HDMI®, VGA, and Analog Audio Signal Extension over CATx Cable, Wall Plate, Black Textured
Pairs with a DM Lite® or DMPS Lite™ receiver to provide a signal extender for HDMI® signals up to UHD and 4K. Provides auto-switching HDMI, VGA, and stereo analog audio inputs.

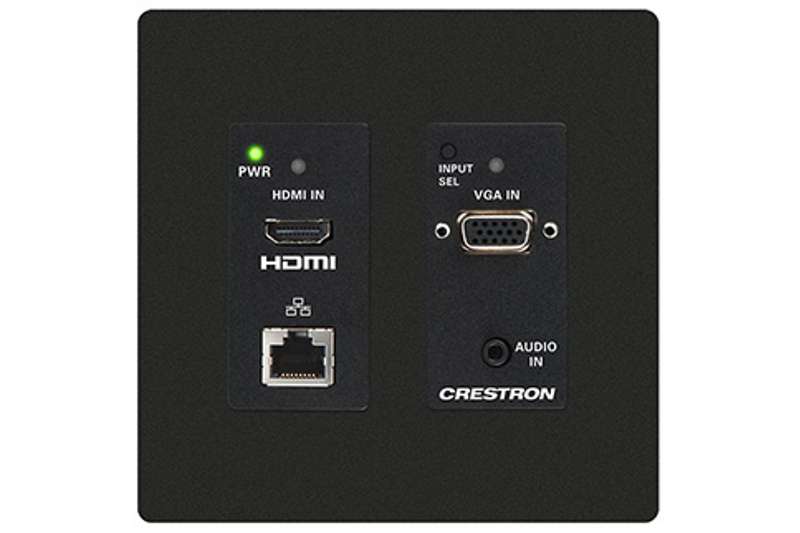

The HD-TX-201-C-2G-E (-B-T or -W-T) is a DM Lite® wall plate transmitter designed to pair with a DM Lite or DMPS Lite™ receiver to form a signal extender for HDMI® signals. The DM Lite family of products offers a versatile solution for extending HD, UHD, 2K, and 4K video signals, with stereo or surround sound audio, over a single CAT5e (or higher) cable. A cable length of up to 230 ft (70 m) is supported for HD 1080p, WUXGA, and 2K signals, or up to 130 ft (40 m) for UHD and 4K.1
In addition to its HDMI input, the HD-TX-201-C-2G-E also includes a VGA input accompanied by a stereo analog audio input. Auto-switching between HDMI and VGA enables plug-and-play simplicity. Manual input selection is also available using the front panel INPUT SEL button. The VGA input can accept RGB and component video signals by using an appropriate breakout cable or adapter (not included). The audio input is selected in tandem with the VGA input, and can be used by itself with no video source connected. However, it cannot be paired with the HDMI video input.
A CAT6a RJ-45 courtesy jack is included to provide a 1000BASE-T network connection for computers and other devices. The front panel jack passes through to a parallel jack on the rear, which connects to an available port on the customer’s LAN. This LAN jack is provided as a convenience to replace the need for a separate RJ-45 wall jack. It does not interface with the DM Lite system and cannot be used to extend Ethernet signals or interface with a control system.
The HD-TX-201-C-2G-E series is available in black or white, and is designed to mount into a 2-gang electrical box or plaster ring (not included). When paired with a surface-mountable receiver, the HD-TX-201-C-2G-E is powered by the receiver over the DM Lite link cable.
Key Features
- Pairs with a DM Lite® or DMPS Lite™ receiver
- Enables extension of HDMI® video and audio signals
- Converts and extends VGA and analog audio signals
- Auto-switches between one HDMI input and one VGA input
- Links to the receiver via a single CAT5e (or higher) twisted pair cable
- Supports 4K and UHD at up to 130 ft (40 m)
- Supports HD 1080p, WUXGA, and 2K at up to 230 ft (70 m)
- Handles 4K video resolutions up to 4K60 4:2:0 and 4K30 4:4:4
- Handles 3D video and Deep Color
- Supports Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed 7.1 linear PCM audio
- Compatible with HDMI, DVI, and Dual-Mode DisplayPort™ sources
- Compatible with VGA, RGBHV, RGBS, RGsB, and YPbPr component sources up to HD 1080p and WUXGA
- HDCP 1.4 compliant
- Passes CEC and EDID signals
- Allows control system integration when paired with an HD-RX-201-C-E or DMPS Lite receiver
- Courtesy LAN jack
- Flush wall mount design
- Installs in a 2-gang U.S. electrical box (2-1/4” deep) or plaster ring (not included)
- Decorator style faceplates sold separately (type FP-G2-DM only)
- Normally powered by the receiver (surface-mountable) over the link cable
