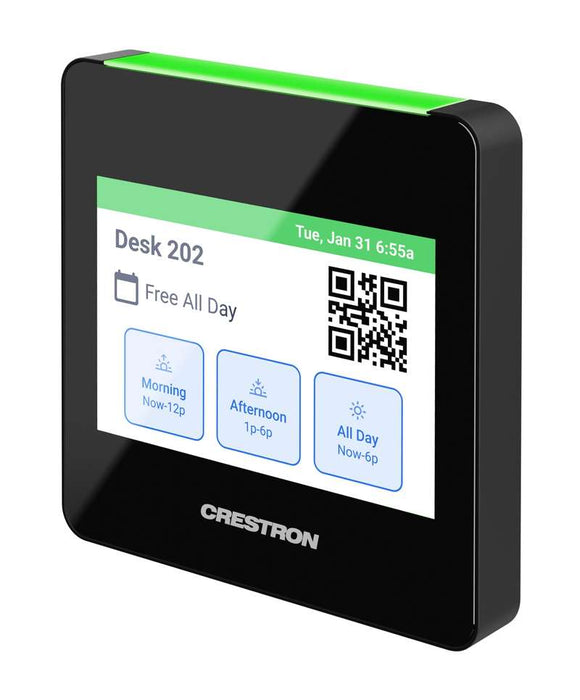

3.5 in. Desk Scheduling Touch Screen, Black Textured, TSS-470E-B-T
A compact touch screen that is designed to enhance and simplify desk scheduling across an enterprise. Can be installed within a hoteling space to provide a clear indication of its availability and schedule. Integrates seamlessly with a variety of popular third‑party scheduling applications.
Key Features
- Touch screen designed specifically for desk scheduling applications
- Room mode provides room scheduling functionality for ancillary spaces
- Integrates directly with various third-party scheduling apps
- 3.5 in. (89 mm) capacitive touch screen display
- Setup and desk scheduling via XiO Cloud® provisioning and management service
- Integrated light bar illuminates green, amber, or red to indicate desk availability with support for custom colors
- Powered via PoE or power pack (sold separately)
- Ethernet and Wi-Fi® network connectivity
- Enterprise-grade security and authentication
- Wall and surface, tabletop, or multisurface mounting options available separately
- Black textured finish
The TSS‑470E‑B‑T is an enterprise-grade device engineered to meet all the demands of a corporate office, conference center, or higher education environment. Its 3.5 in. (89 mm) capacitive display provides an intuitive user interface dedicated for scheduling hoteling spaces and viewing essential reservation details.
Crestron Scheduling App
The native Crestron Scheduling App helps organizations to maximize productivity and manage usage for every hoteling space. Desk usage can be scheduled in advance using a computer that is connected to the scheduling calendar resource, or available desks can be booked on the spot for ad hoc usage. The desk schedule is displayed on the touch screen UI to prevent booking conflicts and to indicate when the desk is available. The Crestron Scheduling App can also be configured with custom settings for no shows, early reservation check‑ins, and more.
Running the Crestron Scheduling App, the TSS‑470E‑B‑T integrates directly with the XiO Cloud® service and Microsoft 365® software.
Room Scheduling Mode
The Crestron Scheduling App provides a room scheduling mode that is optimized for use in ancillary spaces, such as huddle rooms or phone booths, where shorter bookings are more common. Room mode provides similar functionality to desk scheduling mode, including integration with the XiO Cloud service and Microsoft 365 software. A timeline view is provided on the touch screen UI to easily view the room availability for the day. Ad hoc bookings are scheduled to the next top or bottom of the hour, with the ability to extend the reservation in half hour increments.
Third-Party Scheduling Apps
The TSS‑470E‑B‑T includes support for various third-party scheduling applications. New providers are made available via firmware updates. Whatever provider you choose, setup is as simple as connecting the touch screen to the network and choosing an app from XiO Cloud or the device's web configuration interface. The selected app downloads from the cloud and installs on the touch screen without any programming or control system required.
XiO Cloud Service
The TSS‑470E‑B‑T is compatible with the XiO Cloud service, which is an IoT (Internet of Things) based platform for remotely provisioning, monitoring, and managing Crestron devices across an enterprise or an entire client base. XiO Cloud is built on the Microsoft® Azure® software platform and utilizes Microsoft's industry leading Azure IoT Hub technology. XiO Cloud enables installers and IT managers to deploy and manage thousands of devices simultaneously. Unlike other virtual machine based cloud solutions, Azure services provide unlimited scalability to suit the ever growing needs of an enterprise. For more information, visit www.crestron.com/xiocloud.

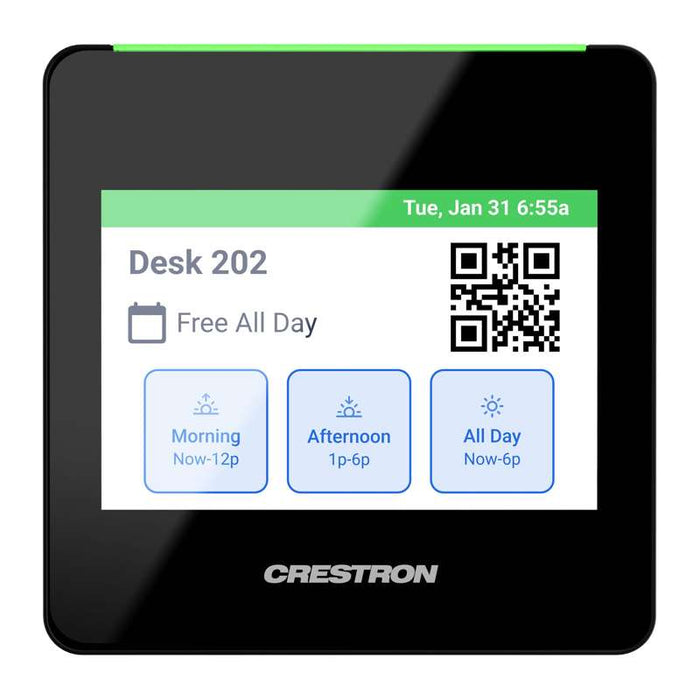

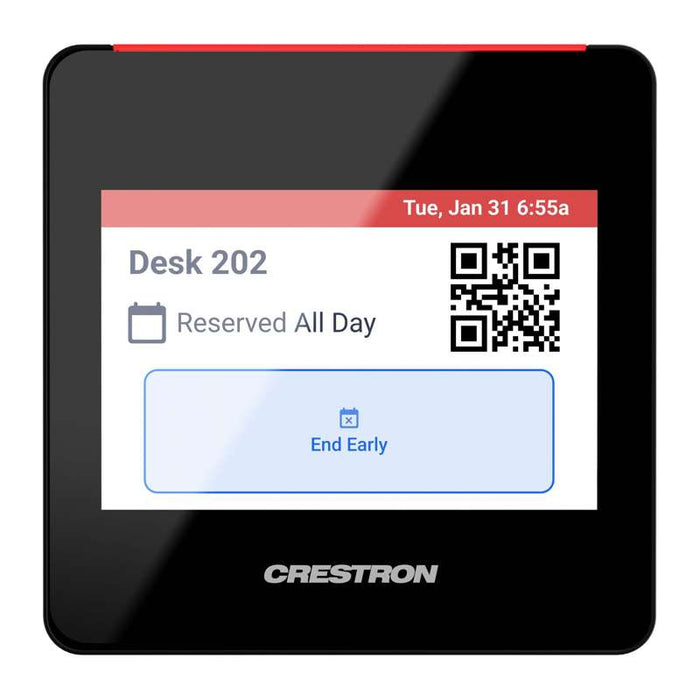

Integrated Light Bar
The TSS‑470E‑B‑T provides an integrated light bar that gives visual indication of a space’s availability as part of a complete enterprise scheduling solution. The light bar illuminates bright green, amber, or red to indicate the space availability. The illumination color is controlled by the scheduling application, which runs on the TSS‑470E‑B‑T and syncs with the scheduling calendar. For custom applications, the light bar can be configured to illuminate in almost any desired color. The light bar features tricolor RGB LEDs that allow for a full spectrum of colors by blending the red, green, and blue elements.

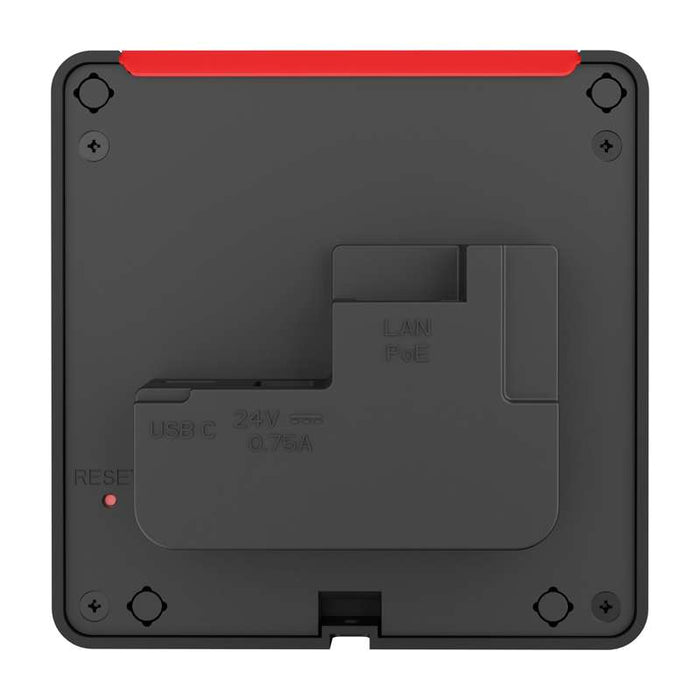

Power over Ethernet
Using PoE technology, the TSS‑470E‑B‑T gets its operating power directly through a network cable. PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power wiring. Crestron PoE switches offer a total networking solution with built‑in PoE for multiple touch screens.
For applications where PoE is not possible or desired, the TSS‑470E‑B‑T can also be powered via a local 24VDC power supply (PW‑2407WU).
Wired and Wi-Fi Connectivity
An Ethernet LAN connection is all that is required to wire the TSS‑470E‑B‑T, containing all control and power signals within a single cable.
For deployments without access to Ethernet, the touch screen can also be connected to the network over Wi-Fi® communications via a local wireless access point (WAP).
Support for 802.11a/b/g/n/ac protocols at 2.4 and 5 Ghz bands affords high-speed wireless performance in many environments. Wi-Fi connectivity supports up to 45 ft (13.7 m) (typical) of omnidirectional coverage indoors. For Wi‑Fi networks with multiple WAPs, the TSS‑470E‑B‑T can hand off communication from one access point to another if the active connection is lost.
Enterprise-Grade Security
The TSS‑470E‑B‑T is an enterprise‑grade touch screen that can be deployed across hundreds of spaces and set up easily using a web browser or XiO Cloud. It employs standard network security protocols, including 802.1X network access control, SSH, TLS, and HTTPS to ensure reliability and compliance with your organization’s IT policies. Additional support for SNMP allows the touch screen to be monitored by your IT administrator.
The TSS‑470E‑B‑T is configured to meet Crestron's enhanced security standards right out of the box. The TSS‑470E‑B‑T ships with authentication enabled and requires that an administrator account be created before access is granted to most device configuration and control interfaces.
