DM-EXT-2022 KIT
4K60 4:4:4 DM® Essentials Receiver and 2x2 Auto-Switcher for, HDMI, USB‑C® DisplayPort™, and USB 2.0 Signal Extension over CATx Cable
Provides a cost-effective, high-definition AV presentation solution for classrooms and meeting spaces. Consists of a transmitter (HD-TXU‑4KZ‑211‑CHGR) and receiver (HD‑RXU‑4KZ‑202) that enable AV switching and signal extension of an HDMI® or USB-C® DisplayPort™ signal and USB 2.0 signals over a CATx cable for up to 230 ft. (70 m). Provides a single HDMI® input on the transmitter and an additional HDMI input on the receiver. A 4K HDMI output ensures a reliable, high-quality video image. Supports 4K60 4:4:4 video.

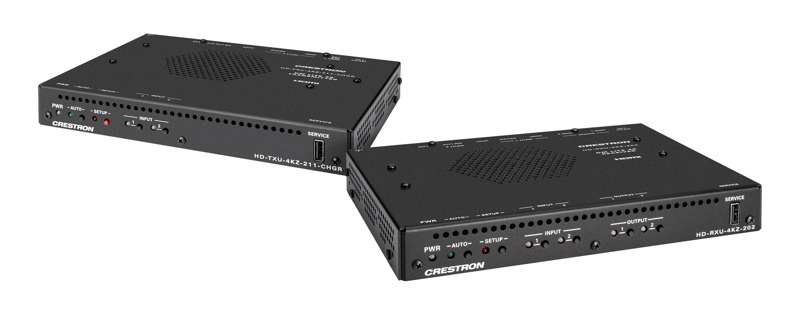

The DM‑EXT‑2022‑KIT consists of a transmitter (HD‑TXU‑4KZ‑211-CHGR) and auto-switching receiver (HD‑RXU‑4KZ‑202), and enables the extension of HDMI® and USB 2.0 signals. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the transmitter and receiver.1
4K60 4:4:4 and HDR Support
The DM‑EXT‑2022‑KIT supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2
Integrated Web Server
The transmitter and auto-switching receiver each provide an integrated web server for device configuration and management. The web servers also provide device, network, and other types of status information.
Automatic Input Switching
Automatic switching between the HDMI and USB-C DisplayPort inputs of the transmitter as well as between the HDMI input and DM input on the receiver occurs based on the last connected input or on the routing priority assigned to each input. Switching behavior is configurable using the web interface or programmable using a Crestron control system. In addition to automatic switching, input selection push buttons on the transmitter and receiver enable the desired input to be selected manually.
USB 2.0 Data Extension
Two USB 2.0 host ports are provided on both the HD‑TXU‑4KZ‑211‑CHGR and HD‑RXU‑4KZ‑202, enabling connection to a wide variety of supported USB 2.0 peripheral devices.4
Low Profile Installation
The transmitter and receiver can be placed on or attached to a flat surface. The transmitter can fit discreetly inside a presentation lectern or be attached to the underside of a table. The receiver can be mounted onto a wall behind a display or onto a ceiling above a projector. The devices are also rack rail mountable.
Key Features
- 4K60 video with 4:4:4 color sampling
- Automatic input switching
- HDR10, HDR10+, and Dolby Vision® video formats
- Signal extension distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- Enterprise-grade security
- EDID and HDCP 2. management
- Consumer Electronics Control (CEC) capability
- Built-in web interface for easy configuration and monitoring
- Compatible with Crestron® 3-Series® control systems or later
- .AV Framework™ technology support
- XiO Cloud® service support
- Low-profile installation
- 100-240VAC power pack included
