Crestron 4K 2x1 DM Essentials Scaling Auto-Switcher and Extender over CATx Cable

DM-EXT-1021 KIT

4K 2x1 DM® Essentials Scaling Auto-Switcher and Extender over CATx Cable

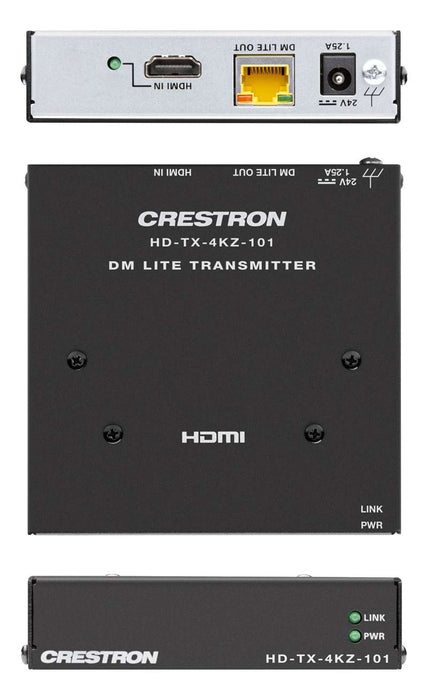

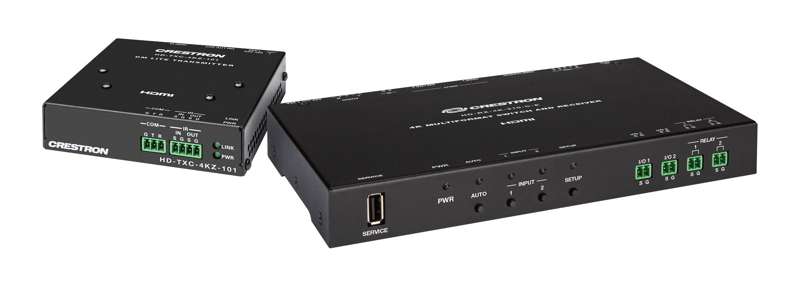

Provides a cost-effective, high-definition AV presentation solution for classrooms and meeting spaces. Consists of a transmitter (HD-TXC-4KZ-101-C-E) and receiver (HD-RX-4K-210-C-E) that enable AV switching, scaling, and signal extension over a single CATx cable for up to 230 ft. (70 m). Provides a single HDMI® input on the transmitter and an additional HDMI input on the receiver. A 4K scaling HDMI output ensures a reliable, high-quality video image. Supports 4K60 4:2:0 video.

Key Features

• 4K60 video with 4:2:0 color sampling
• Transmitter and receiver with 2x1 AV switching, scaling, and signal extension functionality
• One HDMI® input on the transmitter
• One HDMI input and one 4K HDMI scaling output on the receiver
• Automatic input switching
• Video, audio, and power extension over a CATx cable - up to 230 ft (70 m) for resolutions up to 2K or up to 130 ft (40 m) for higher resolutions up to 4K
• EDID and HDCP 2.2 management
• Consumer Electronics Control (CEC) capability
• Stereo audio de-embedding via analog audio output
• IR, RS-232, relay, and I/O control ports
• USB power port
• Built-in web interface for easy configuration and monitoring
• Compatible with Crestron® 3-Series® control systems or later
• .AV Framework™ technology support
• XiO Cloud® service support
• Native integration with Cisco® Webex® and Touch 10 devices
• Low-profile installation
• 100-240VAC power pack included
