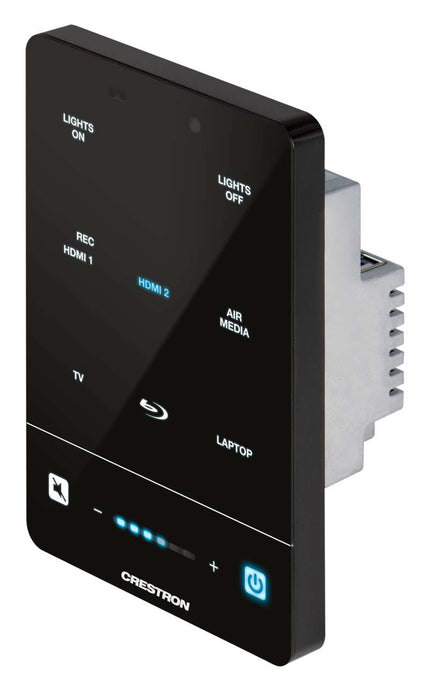

MPC4-102-B – 4-Series® Media Presentation Controller 102
- Integrated 4-Series® Control System® processor and wall-mounted control panel
- Nine customizable backlit capacitive buttons with replaceable labels
- Dedicated power, volume, and mute controls with integrated volume gauge
- Built-in .AV Framework™ software for simplified deployment
- PoE-powered design for streamlined installation and reduced wiring
- Onboard Cresnet®, RS-232, IR, relay, and Versiport® control interfaces
- Crestron Fusion® room monitoring and scheduling support
- XiO Cloud® provisioning, monitoring, and device management
- Enterprise-grade security with 802.1X, Active Directory®, SSH, TLS, and HTTPS
- Flush-mount installation in a 1-gang U.S. electrical box with optional 2-gang retrofit support
The Crestron® MPC4-102-B combines a powerful 4-Series® Control System processor with an intuitive wall-mounted control interface in a single compact device. Designed for classrooms, meeting rooms, lecture halls, training facilities, and collaborative workspaces, it provides centralized control of AV systems, displays, lighting, shades, environmental controls, and other room technologies.
Powered through Power over Ethernet (PoE), the MPC4-102-B simplifies installation by requiring only a single network connection for both power and communication. With extensive connectivity, built-in automation capabilities, and enterprise-class management tools, it serves as a complete room control solution without the need for a separate rack-mounted controller.
Customizable Backlit Capacitive Controls

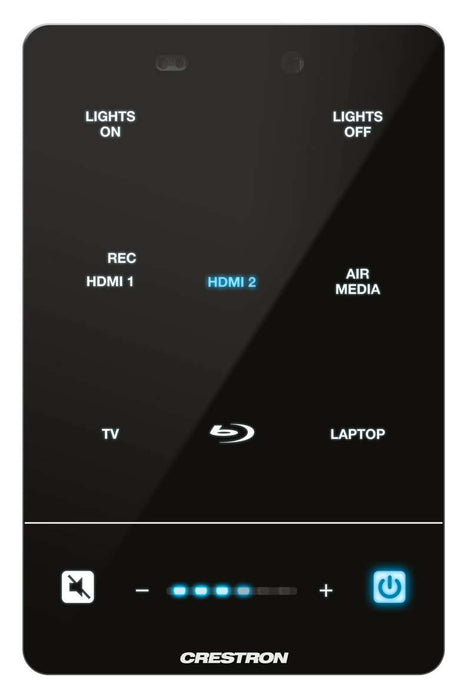

The MPC4-102-B features nine customizable capacitive buttons that can be labeled using included icon chips or optional laser-engraved inserts. Each button provides clear visual status indication with blue illumination when active and white illumination when inactive.
Additional controls include dedicated power, volume, and mute buttons, along with an integrated volume level gauge for intuitive operation. Built-in proximity sensing automatically activates the interface when users approach, while auto-brightness technology adjusts illumination for optimal visibility in any environment.
Integrated 4-Series® Control Engine
Equipped with a high-performance multicore 4-Series processor, the MPC4-102-B delivers significantly enhanced processing power and responsiveness for modern automated environments. It provides a secure and scalable platform capable of managing multiple technologies across a room or facility while supporting future expansion requirements.
The system enables seamless integration with touch screens, mobile apps, wireless remotes, and other Crestron control interfaces, delivering a unified user experience across the enterprise.
No Rack Required
Unlike traditional room control systems that require separate processors and control panels, the MPC4-102-B combines both functions into a single device. Integrated control ports provide direct connectivity to AV equipment and third-party devices, reducing hardware requirements and simplifying deployment.

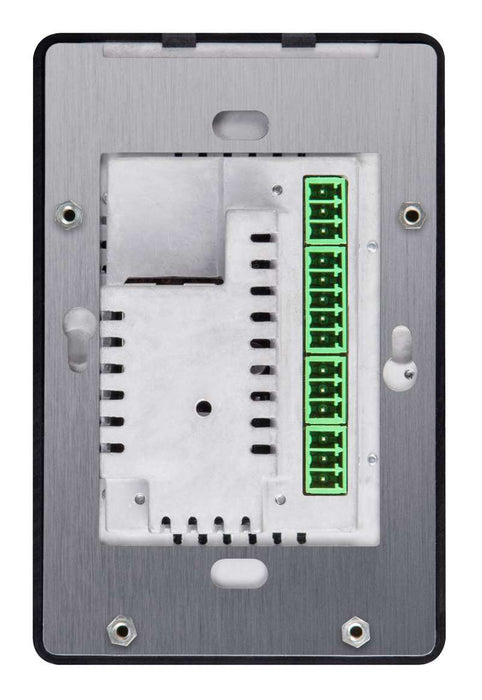

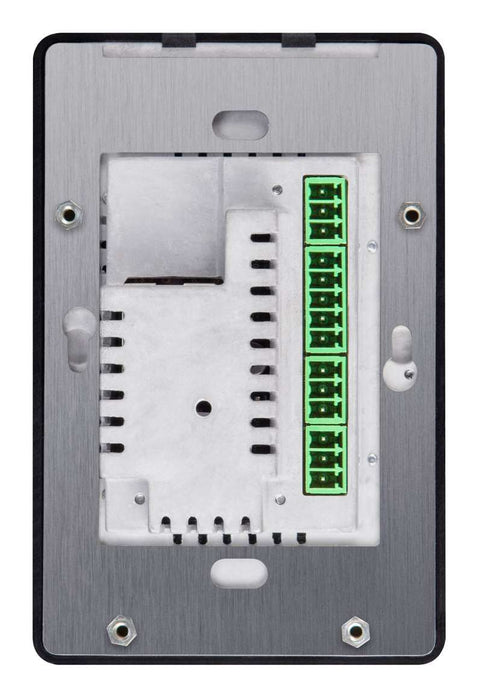

Built-in interfaces include:
- High-speed Ethernet LAN
- Cresnet® network connectivity
- RS-232 serial control
- IR control ports
- Relay outputs
- Versiport® I/O ports
Additional expansion options are available through Crestron wired and wireless control modules, gateways, and Ethernet-to-Cresnet bridges.
Rapid Deployment with .AV Framework™
Built-in .AV Framework™ technology enables fast deployment of fully functional AV presentation systems without requiring custom programming. System setup can be completed through an intuitive web-based interface, reducing installation time and accelerating room commissioning.
For advanced applications, the controller also supports drag-and-drop programming, symbol-based development, and C# programming environments with multilingual Unicode support.
Crestron Fusion® Room Management
The MPC4-102-B integrates with Crestron Fusion® software to provide centralized room scheduling, monitoring, asset management, and reporting. Organizations can track room utilization, automate building systems, monitor equipment health, and reduce energy consumption from a central management platform.
This makes it ideal for enterprise campuses, higher education facilities, government buildings, and large-scale commercial deployments.
XiO Cloud® Device Management
Native support for XiO Cloud® enables remote provisioning, monitoring, and management of Crestron devices across an organization. Administrators can configure systems prior to installation, deploy updates remotely, and manage large deployments from a centralized cloud-based platform.
Built on Microsoft Azure®, XiO Cloud provides enterprise scalability for managing thousands of connected devices across multiple locations.
Enterprise-Class Security
Designed for modern IT environments, the MPC4-102-B incorporates advanced security features including:
- 802.1X network authentication
- Active Directory® integration
- SSH secure communications
- TLS encryption
- HTTPS secure management
- IPv6 readiness
- SNMP V3 support for IT monitoring platforms
These capabilities help ensure compliance with corporate security policies while simplifying deployment across large enterprise networks.
Flexible Installation Options

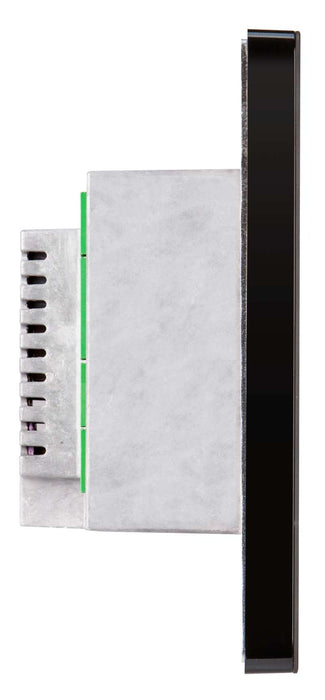

The MPC4-102-B is designed for flush mounting in a standard 1-gang U.S. electrical box and can be installed in walls, lecterns, podiums, and custom furniture applications. An optional retrofit mounting bracket allows installation into a 2-gang electrical box when required.
A removable front cover enables quick label updates, while an included security screw helps prevent unauthorized access or removal.
Ideal Applications
- Conference and meeting rooms
- Classrooms and lecture halls
- Training facilities
- Corporate collaboration spaces
- Government and public sector environments
- Higher education campuses
- Podiums and presentation stations
- Smart building
