MPB4-301-B – 4-Series® Media Presentation Button Panel 301, Black
- Modern wall-mounted media presentation controller with PoE+ connectivity
- Five customizable backlit capacitive buttons with replaceable labels
- Integrated rotary volume control with illuminated volume gauge
- Dedicated power and mute buttons for quick access
- Compatible with Crestron® 3-Series®, 4-Series®, and Virtual Control platforms
- Native support for Crestron XiO Cloud® provisioning and device management
- Installer configuration via software, web browser, or cloud-based tools
- High-speed Ethernet connectivity with IPv6 readiness
- PoE+ powered for simplified installation without local power supplies
- Fits standard 2-gang U.S. electrical boxes and lectern installations
The Crestron® MPB4-301-B is a sleek, wall-mounted media presentation button panel designed to deliver intuitive room and AV control in classrooms, conference rooms, lecture halls, training spaces, and collaborative environments. Powered by Power over Ethernet Plus (PoE+), it works seamlessly with Crestron 3-Series®, 4-Series®, and Virtual Control systems, providing a reliable and scalable control solution for modern AV installations.
Featuring a contemporary design with customizable backlit capacitive buttons and an integrated rotary volume control, the MPB4-301-B offers users a simple and elegant interface for managing displays, audio systems, lighting, shades, and other room technologies. Fully programmable functionality allows each button to be configured for virtually any control task, making it adaptable to a wide range of applications.
Customizable User Interface

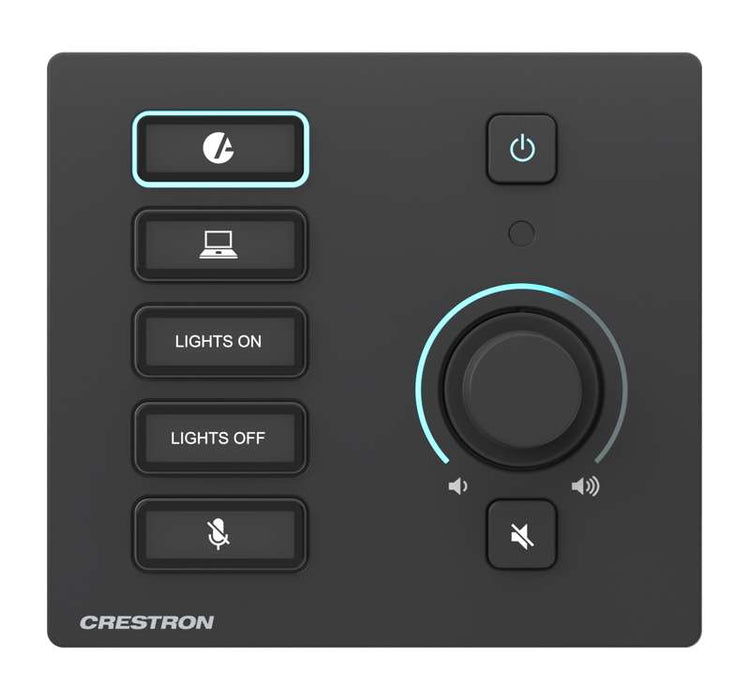

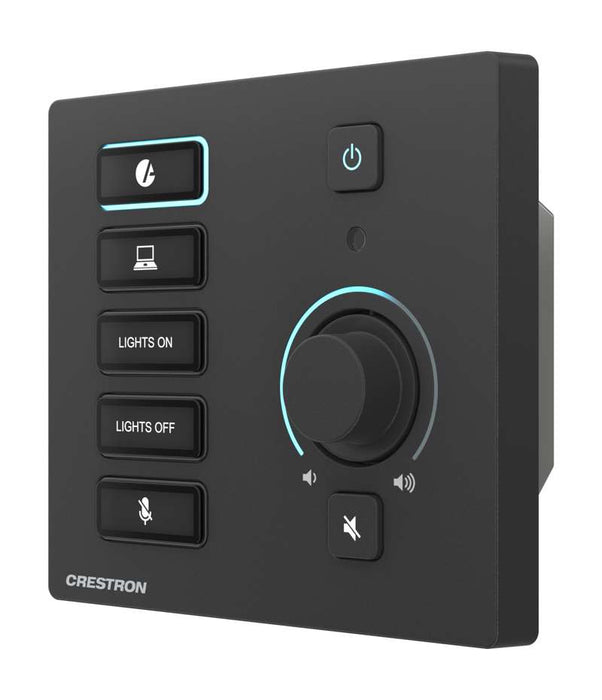

The MPB4-301-B includes five programmable capacitive buttons that can be customized using supplied icon chips or optional laser-engraved labels. Each button provides clear visual feedback with blue illumination when active and white illumination when inactive, allowing users to easily identify selected media sources, lighting scenes, or room functions.
In addition to the programmable buttons, the panel features a rotary volume knob surrounded by an illuminated circular volume gauge, along with dedicated power and mute controls. Built-in auto-brightness technology automatically adjusts button illumination to maintain optimal visibility in varying lighting conditions.
Seamless Integration with Crestron Control Systems
Designed for enterprise-grade control environments, the MPB4-301-B integrates with Crestron 3-Series and 4-Series Control Systems through a secure Ethernet connection. This enables centralized control of AV equipment, displays, lighting, shades, environmental systems, and other network-connected devices from a single interface.
The platform also supports expansion through Crestron touch screens, mobile applications, and wireless remotes, providing a unified room control experience across multiple user interfaces.
XiO Cloud® Device Management
Built-in support for Crestron XiO Cloud® enables remote provisioning, monitoring, and management of devices across a single facility or a global enterprise deployment. IT administrators and integrators can efficiently deploy, configure, and maintain large-scale installations from a centralized cloud-based platform.
PoE+ Powered Installation
The MPB4-301-B utilizes PoE+ technology, receiving both power and network connectivity through a single Ethernet cable. This streamlined deployment approach eliminates the need for local power supplies or dedicated electrical wiring, reducing installation complexity and costs.
Flexible Mounting Options

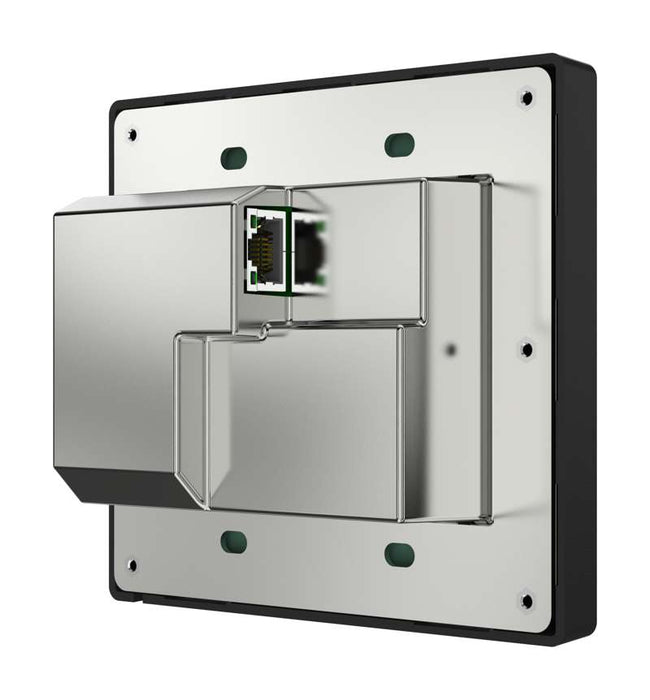

Designed for flush mounting in a standard 2-gang U.S. electrical box (sold separately), the MPB4-301-B can also be installed in lecterns, podiums, and custom furniture applications. The removable front cover allows button labels to be updated as room requirements change, while an included security screw helps prevent unauthorized access.
Applications
The MPB4-301-B is ideal for:
- Conference and meeting rooms
- Classrooms and lecture halls
- Training facilities
- Corporate collaboration spaces
- Presentation environments
- Podiums and lecterns
