ATSC-mini Compact HDTV Tuner
Key Features:
- Tunes ATSC off-air digital channels, NTSC analog channels, and clear QAM cable feeds
- Decodes MPEG-2 and H.264 digital video streams up to 1080p at 60Hz
- HDMI output with selectable video scaling up to 4K UHD or automatic resolution matching
- Consumer Electronics Control (CEC) enabled via HDMI for display power integration

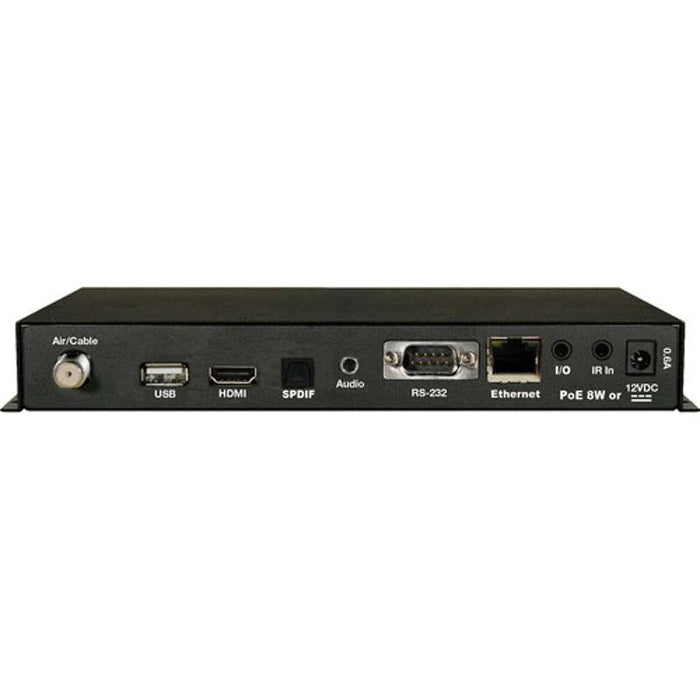

- Simultaneous audio output via HDMI, S/PDIF optical digital, and 3.5mm analog stereo
- Integrator-friendly control options including 2-way RS-232, IP Telnet, UDP, and IR commands
- Low-profile aluminum enclosure with built-in mounting wings for direct attachment behind displays
- Power over Ethernet (PoE) capability alongside 12 VDC external power supply operation

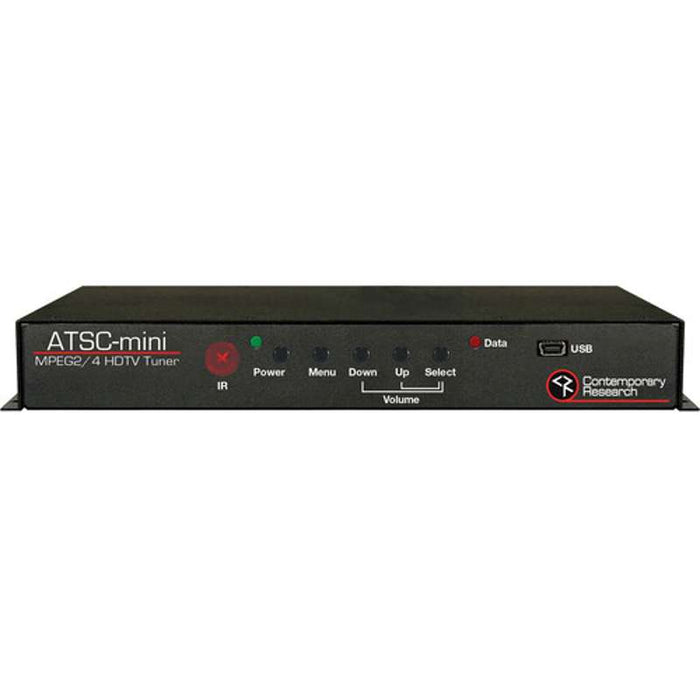

Ultra-Compact Enclosure for Mounting Behind Displays
Designed for space-constrained installations, the ATSC-mini features a low-profile chassis with built-in mounting wings that attach directly to display mounts, flat walls, or projector hardware. Its small footprint eliminates the need for full rack enclosures while keeping cabling concealed behind active screens.
Flexible Audio and Multi-Protocol Control
The tuner provides simultaneous digital and analog audio feeds to feed soundbars or distributed amplifier systems. Built-in CEC control allows simple display power synchronization, while standard 2-way RS-232 and IP commands ensure straightforward commissioning with external AV automation platforms.
