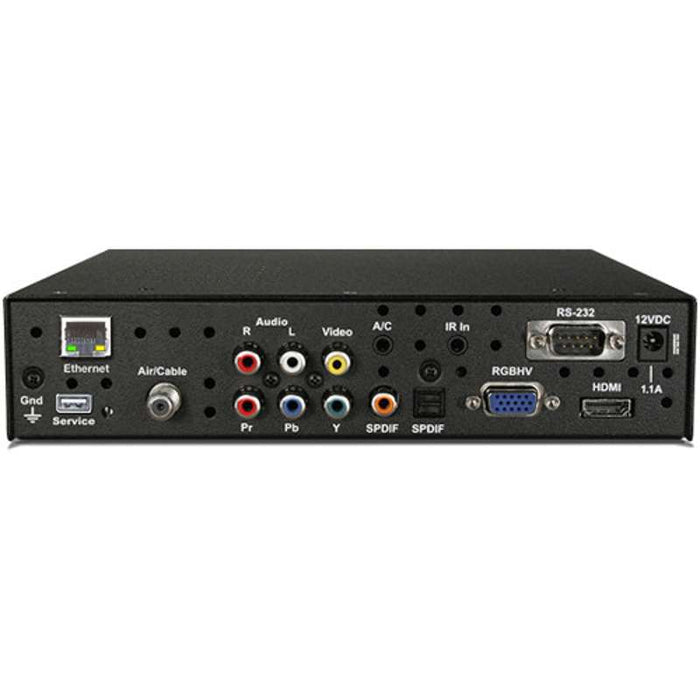

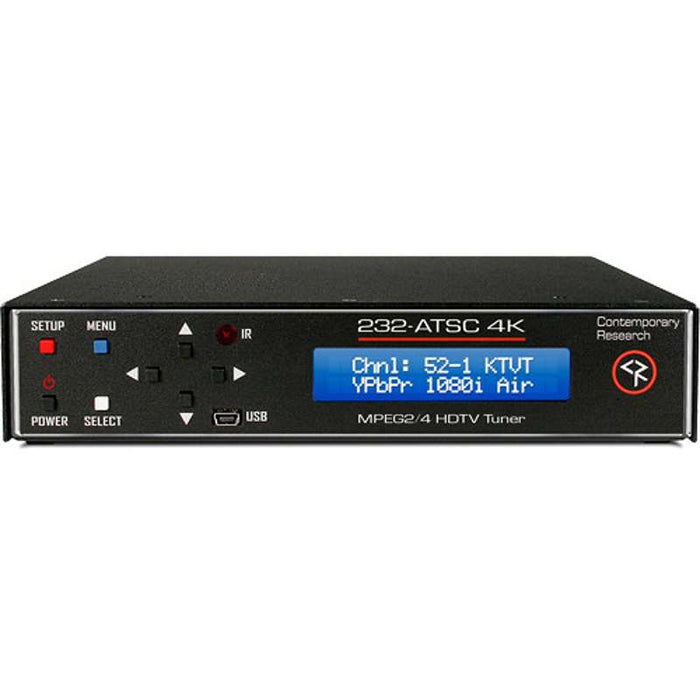

Contemporary Research 232-ATSC 4K HDTV Tuner

232-ATSC 4K HDTV Tuner

Key Features:

• Tunes off-air ATSC, analog NTSC, and clear QAM cable channels
• Decodes MPEG-2 and H.264 video up to 1080p at 60Hz
• Selectable HDMI output video scaling up to 4K UHD (3840 x 2160)
• Outputs IPTV unicast or multicast streams directly via the Ethernet network port
• Simultaneous analog HD (RGBHV/Component) and HDMI video outputs
• Flexible control options including 2-way RS-232, Telnet, UDP, web page control, and IR
• Compact 1RU half-rack enclosure allowing two units to mount side-by-side

Advanced Video Processing and Streaming

The 232-ATSC 4K delivers versatile video scaling capabilities, converting incoming RF digital programs into HDMI output resolutions up to 4K UHD. Additionally, its integrated Ethernet port enables simultaneous IPTV streaming, broadcasting live program streams across local IP networks for digital signage and remote viewing.

Integrator-Friendly Control and Compatibility

Designed for seamless AV control system integration, the tuner supports full 2-way RS-232 serial control, IP Telnet commands, and an embedded web page configuration interface. It maintains full backward command compatibility with previous tuner models and supports daisy-chaining up to nine units on a single serial port.
