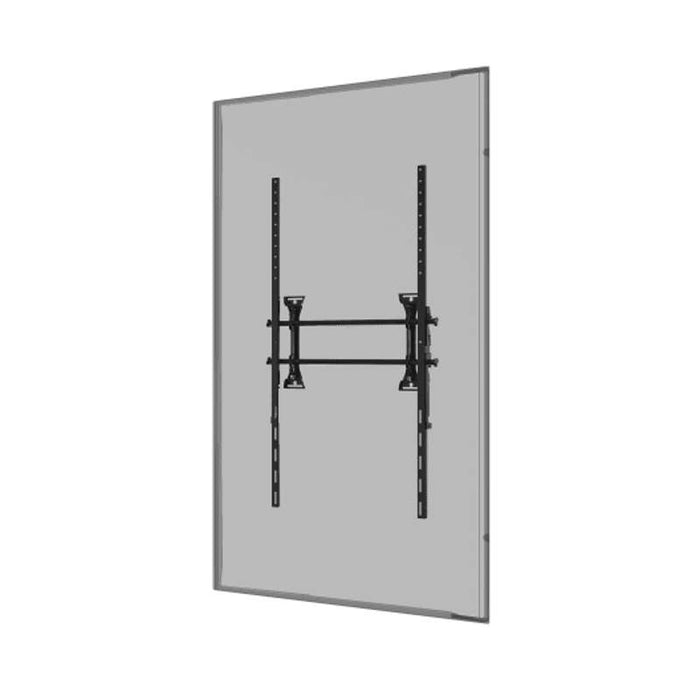

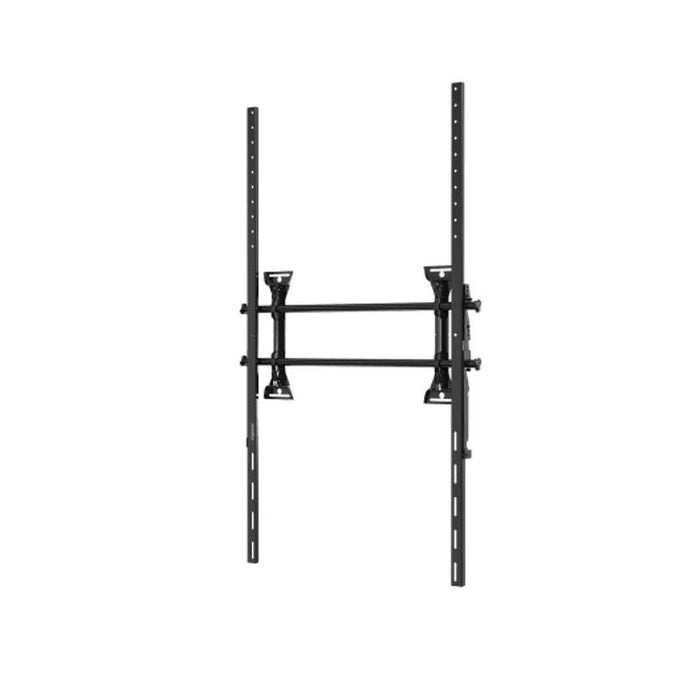

Ultrawide Micro-Adjust Portrait Static Wall Mount, Extra-Large Kit
The Ultrawide Micro-Adjustable Static Wall Mount, Extra-Large Kit leverages Fusion® features to support displays with 21:9 aspect ratio and ultrawide mounting patterns (up to 1954 mm x 600 mm) in a secure, easy-to-install solution.
Key Features
- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- ControlZone Leveling for post-installation fine tuning of height and leveling
- Centerless Shift provides up to 22.6" (575mm) of post-installation lateral shift for limitless centering
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Improved cable management with new end caps
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away
Dimensions & Measurements
- Depth: 2.25 in (5.7 cm)
- Height: 60.5 in (153.7 cm)
- Minimum Depth: 2.25 in (5.7 cm)
- Overall Dimensions: 60.5 x 34.75 x 2.25" (1537 x 883 x 57 mm)
- Shipping Weight: 16.15 lbs (7.3 kg)
- Typical Screen Size: 80" – 120" (2032mm - 3048mm)
- Weight Capacity: 250 lbs (113.4 kg)
- Width: 34.75 in (88.3 cm)
Characteristics & Features
- Adjustability: Fixed, Lateral Shift, Micro-Adjustable
- Application: Wall
- Color: Black
- Orientation: Portrait
- Solution Type: Universal
- Special Features: Kits
- VESA Mounting Pattern: 100x600-891mmx1500mm
