Chief Fusion® 3 x 3 Micro-Adjustable Large Bolt-Down Freestanding Video Wall
Chief's Fusion® Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications.
Screen array configuration: 3 screens wide x 3 screens high.
- 3 x 3 screen arrangement for 42 - 46" screens. Larger displays possible with FCAX brackets, use MountFinder™ to confirm compatibility
- Easily align displays with independent height, plumb and lateral shift adjustment
- Bolt-down solution allows for a permanent solution

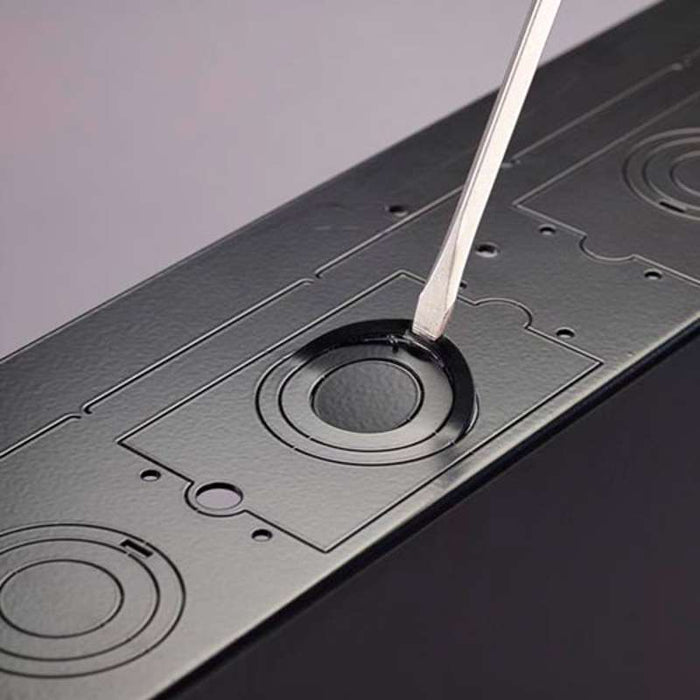

- Integrated cable management for a clean installation
- TAA Compliant
Dimensions & Measurements
- Center of Display To Floor Table Range: 16.38" (416 mm) (minimum bottom row) - 82.38" (2092 mm) (maximum top row)
- Depth: 9.43
- Height: 90.9
- Lateral Shift: Yes
- Manual Height Adjustment: Micro-adjustment up to 0.75" (19 mm) per screen
- Overall Dimensions: 90.9" x 108.9" x 9.43" (2309 x 2766 x 239 mm)
- Plumb Adjustment: Micro-adjustment up to 0.75" (19 mm)
- Shipping Weight: 283 lbs (128.4 kg)
- Weight Capacity: 100 lbs (45.4 kg)
- Width: 108.9
Characteristics & Features
- Adjustability: Micro-Adjustable
- Application: Bolt-Down
- Array Configuration: 3x3
- Color: Black
- Number of Displays: 9
- Orientation: Landscape
- Solution Type: Universal
- Special Features: Multi-Display
Certifications & Warranties
- Certifications: TAA, UL Listed
