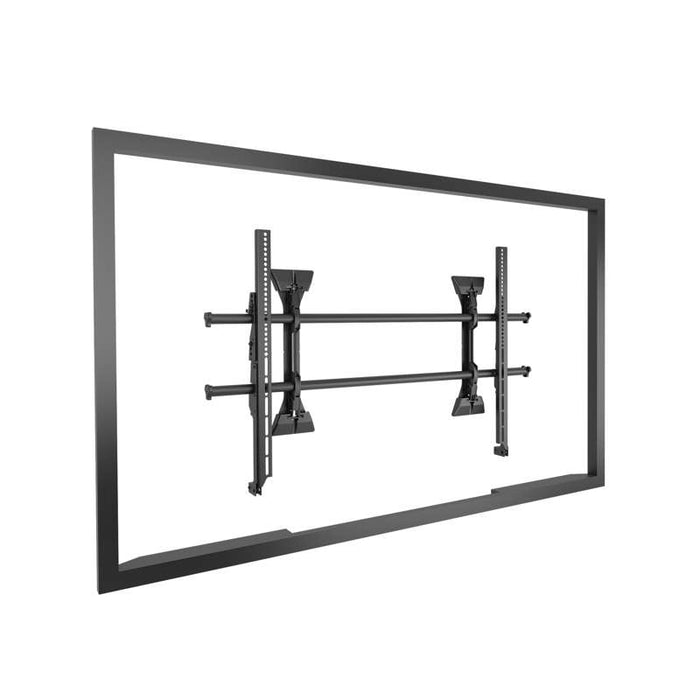

XSM1U Fusion Series Fixed Wall Mount

by Chief
SKU CHIXSM1U

MSKU: XSM1U

Original price $275.20 - Original price $275.20
Original price
$275.20
$275.20 - $275.20
Current price $275.20
Call to Order

Free Shipping on ALL orders!

Typically ships in 3-5 days. Call of chat for current availability.

Specifications
Mount-features: Fixed,height adjustable,micro-adjustable
Mount-install: Wall
Mount-type: Display
Orientation: Landscape
Taa: No
Vesa-compatible: Yes

X-Large Fusion Micro-Adjustable Fixed Wall Display Mount, #

Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching.

New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.

Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.



Key Features

  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
  • ControlZone Leveling for post-installation fine tuning of height and leveling
  • Centerless Shift provides up to 21.4" (543 mm) of post-installation lateral shift for limitless centering
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps
  • Integrated Security
  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
  • Easy Open box with less waste to throw away


Specifiations

  • Certifications: UL Listed, OSHPD Approved, TÜV Certified
  • Color: Black
  • Lateral Shift: 21.4" (543 mm)
  • Manual Height Adjustment:1" (25 mm)
  • Minimum Depth: 2.25" (57 mm)
  • Mounting Pattern Compatibility (Universal Versions): 100 x 100 mm - 1070 x 600 mm
  • Overall Dimensions (H x W x D): 26.25 x 42.75 x 2.25" (667 x 1086 x 57 mm)
  • Shipping Weight: 11 kg
  • Solution Type: Universal
  • Typical Screen Sizes: 55 - 100"
  • Wall Stud Compatibility In: 24" - 42" (610 mm - 1067 mm)
  • Weight Capacity: 250 lbs (113.4 kg)
  • Orientation: Landscape
