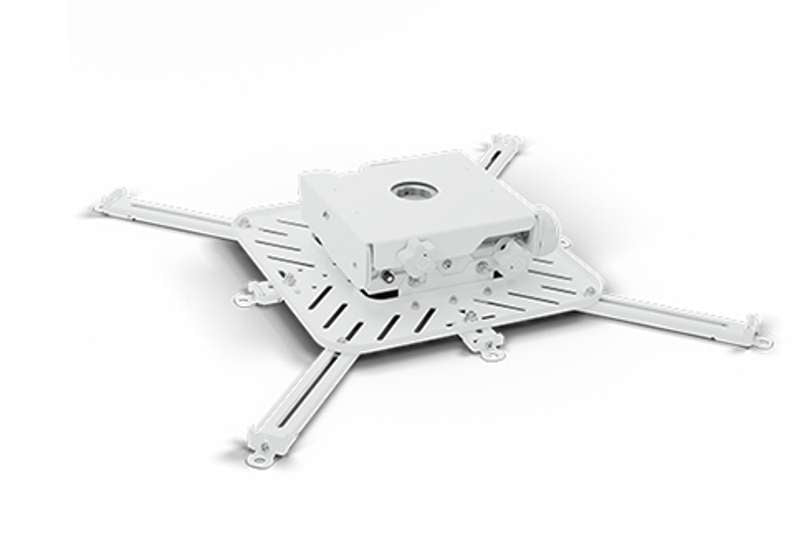

XL Universal Tool-Free Projector Mount, VCTUW
The VCTUW XL Universal Tool-free Projector mount was designed to install quickly while maintaining a sleek aesthetic. Lighter and slimmer than its predecessor, the VCM, the VCT works well with laser projectors between 50-150 lbs (22.7 – 68 kg). Tool-free MicroZone adjustment ensures accurate and reliable image registration.
Key Features
- Low Profile
- The new VCT is 30% slimmer than the VCM mount
- Lightweight
- The new VCT is 25% lighter than the VCM mount
- Sleek Aesthetic
- Matching knobs & hardware
- Available in black and white finish options
- Tool-free MicroZone+ Gearbox Pitch Adjustment
- The fine tune pitch adjustment has a 100:1 gear ratio for precise image alignment
- Can be hand adjusted using the tool-free knob or driven with a 1/2” (13mm) socket
- PrecisionSet™ technology to lock in pitch adjustments
- Tool-free MicroZoneTM Roll & Yaw Adjustments
- Gear driven tool-free knob adjustments
- Lockout nuts enable additional image lock security
- New Universal Interface
- Universal plate is sized to accommodate most patterns within footprint
- Short attachment legs reduce clutter for smaller projector installation patterns
- Long attachment legs extend reach for larger projector installation patterns
- Custom interfaces also available
Specifications
- Adjustments: Micro Roll +/- 5°, Micro Pitch +/- 20°, Micro Yaw +/- 10°, Macro Yaw 360°
- Certifications: TÜV Certified, UL Plenum
- Color: White
- Solution Type: Universal
- Weight Capacity:150 lbs (68 kg)
