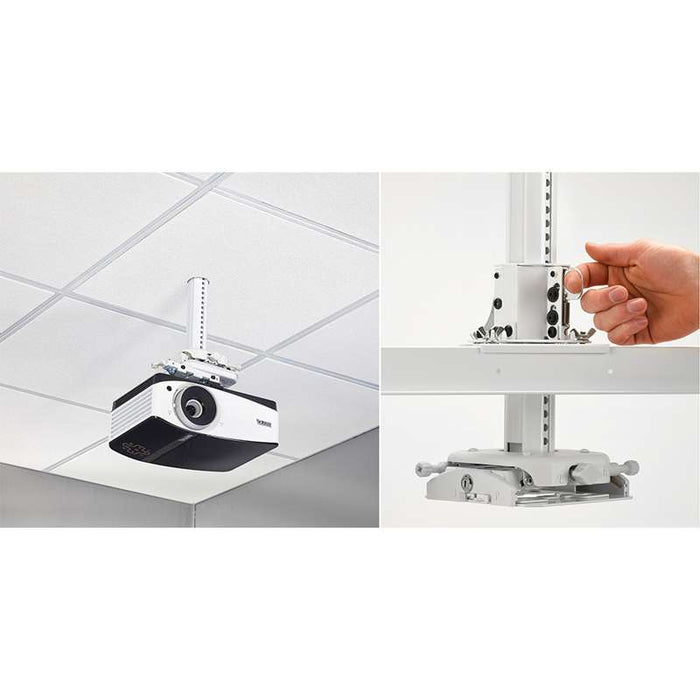

Chief Manufacturing Suspended Ceiling Projector System with Storage, SYS474UW
Designed for speed and flexibility from an ordering and installation standpoint. Chief's SYSAU Suspended Ceiling Projector System cuts installation time by one-third and includes everything needed to complete the majority of installations. This option includes a flexible and scalable air handling space-rated storage box. This mount is reliable, easy to install, and functional, as it accommodates uneven T-grids and can be installed above or below the ceiling tile
Key Features
- System comes out of box in the order needed with mount and column preassembled
- Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids
- Compatible with 2' x 2', 2' x 4', 60 x 60cm, & 62.5 x 62.5cm ceiling grids
- Detachable electric plate for pre-wiring
- Compatible with popular 2 gang adjustable mud rings
- Tool-FreeMicrozone adjustment eliminates the need for set screws
- CentrisTechnology enables effortless fingertip positioning with new tool-free lockdown
- Adjustable 0-12" column with dual inlay channels for high and low voltage cables
- Q-Lock Quick Release Lever provides quick connect/disconnect ofthe projector for service and enhanced security with an integrated key and lock system
- Improved universal interface for easier lock/unlock at projector connection
Storage Features
- Air handling space rated enclosure is scalable to fit AV equipment
- Shift enclosure along tile bridge to avoid interferences above suspended ceiling.
- Removable covers enable side access in shallow spaces and full access from above.
- Six trade size conduit knockouts in 0.5", 1", 1.5" (12, 25, 38 mm)
- Flexible conduit knockouts allow high voltage conduit to pass through storage box when the power is facing into the room below.
Specifications
- Adjustments: Roll, Pitch, Yaw (3°, 10°, 360°)
- Certifications: UL Listed
- Color: White
- Extension: 0 - 12" ( 0 - 304.8 mm)
- Max Equip Size H x W x D: 5 x 17 x 12.5" (127 x 432 x 317 mm)
- Notes: Storage: Collapsed Width 12" (305 mm); Expanded Dimensions 5.38 x 22 x 13" (137 x 559 x 330 mm)
- Overall Dimensions (H x W x D): 19.82" x 7.25" x 24.94" (503.5 x 184.2 x 633.6 mm)
- Shipping Weight: 40.80 lbs (18.51 kg)
- Solution Type: Universal
- Weight Capacity: 35 lbs (15.9 kg)
