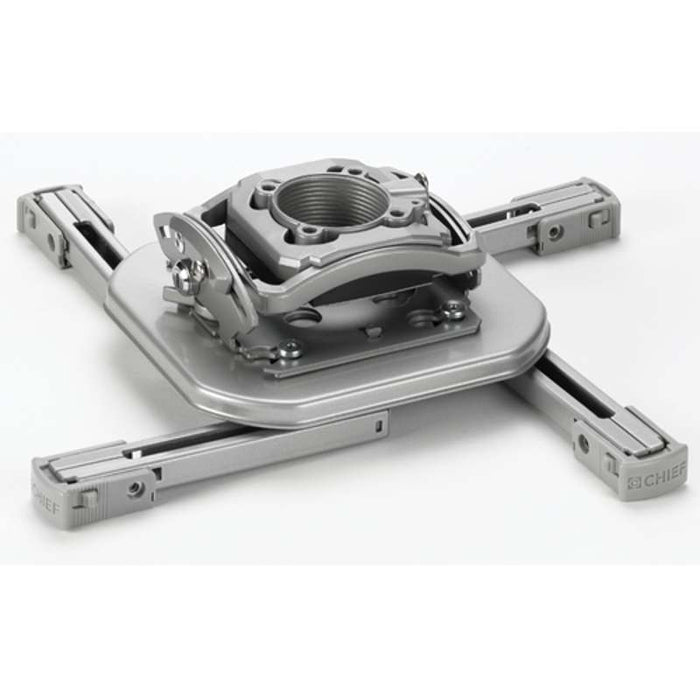

Chief RSMAU Mini Projector Ceiling Mount, Silver

Chief Mini RPM Elite Projector Mount

RSMA (locking) Series

The RSMA offers a compact design for smaller projectors with all the same great features as the RPA Elite Series. View .pdf product info »

Features

• Compact design is smaller than the RPA Elite by 1/3 and includes all the same features
• MicroZone Adjustments make projector registration fast and precise (including flush mount installations)
• Centris Technology enables effortless fingertip positioning and self-adjusts to support different projector weights
• Integrated cable management through top of mount without additional accessories
• Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system (4 key options)
• New universal interface with faster installation and lamp/filter access/li>
• Now includes new universal interface to further reduce installation time

Specifications

• Roll Adjustment: +/-3 degrees adjustment up or down.
• Pitch Adjustment: +/-15 degrees adjustment on each side of the mount.
• Yaw Adjustment: 360 degrees by turning the mount on the threaded column and securing in place with set screw.
• Weight Capacity: 25 lbs (11.3 kg)
• Color: Available in Black, Silver, White
• Dimensions (HxWxD): 1.83" x 4.37" x 5.07" (46 x 111 x 129 mm)
