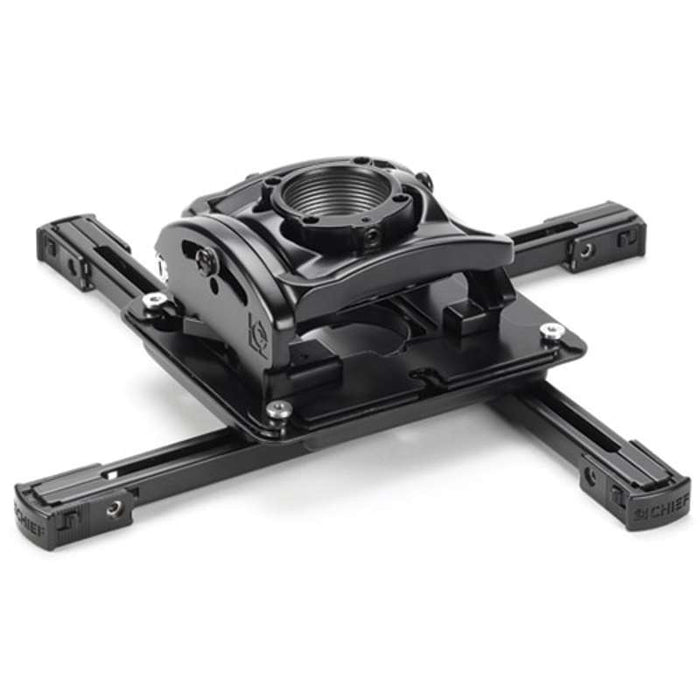

Chief RPA Elite Series Universal Projector Mount

Chief RPM Elite Projector Mount

Focusing on speed of installation, the all-new RPA Elite™ Series of custom and universal projector mounts were designed as a first-class upgrade to the industry-leading RPA Series. The Elite Series is packed with new easy-to-use features that save time and maximize projector security. RPA Elite includes the same great features as the RPA Series, such as independent roll, pitch and yaw, integrated cable management, and All-Points™ Security; packaged in a new, revolutionary design. In addition, unique features have been added to further improve ease of installation for the installer, and simplify service for the end-user. A select line of Speed-Connect™ accessories has been designed also to focus on speed of installation.

Features / Specifications

Features

• MicroZone™ Adjustments for fast and precise projector registration, including flush-mount installations
• Q-Lock™ Integrated Security with Quick Release Lever -
• Provides easy lamp and filter access and maintains registration (included with keyed locking models - RPMA/RPMB/RPMC)
• Aluminum and solid steel construction for optimal strength in a lightweight design
• Exclusive Centris™ Technology - Self-adjusts to support different projector weights; Enables effortless, fingertip positioning
• Independent roll, pitch and yaw adjustments
• Low-profile, aesthetic design
• Quick projector disconnect/reconnect without losing registration
• No assembly required
• All-Points™ Security System - Exclusive locking hardware at all key connection points to protect against theft
• Multiple ceiling mounting options
• Integrated Cable Management - Allows cables to feed out of the top of the mount without additional accessories
• Compatible with many accessories for all your installation needs
• Universal SLB Bracket - For specific projector types, custom-designed models are available

Specifications  [ top ]

• Roll Adjustment: +/- 3° adjustment up or down. Loosen screw, adjust mount and tighten screw to hold adjustment.
• Pitch Adjustment: +/- 20° adjustment on each side of the mount. Loosen screw, adjust mount and tighten screw to hold adjustment. Full range of pitch in a flush mount installation.
• Yaw Adjustment: 360° by turning the mount on the threaded column and securing in place with set screw. 12 degrees yaw possible on flush mount using slots in top of RPA.
• Warranty: 10 year warranty
• Weight Capacity: 50 lbs (23 kg)
• Color: Black

Note: May not be compatible with select Optoma projectors. Special parts may be required. Call a Projector Expert for details. See list below products that require the additional hardware.
