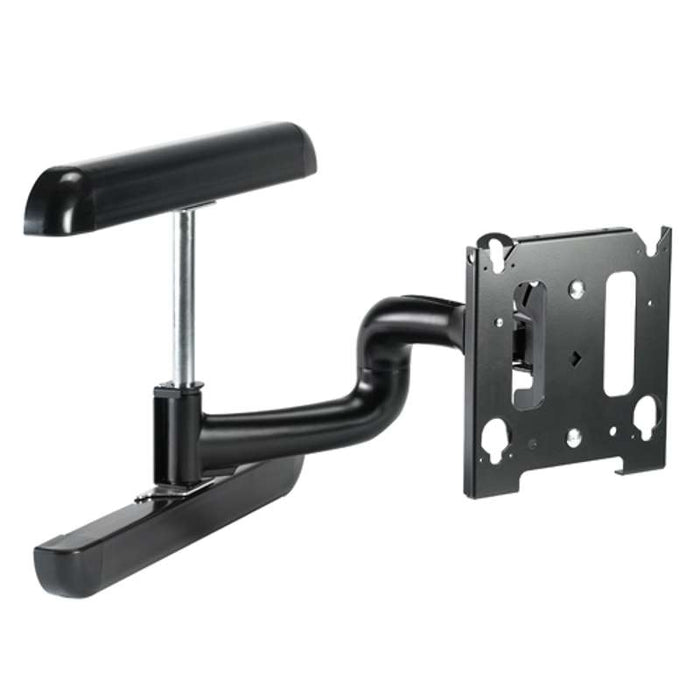

Chief MWR Flat Panel Swing Arm Wall Mount

Features:

• Provides full extension while remaining low profile in the home position
• Centris Technolgoy provides fingertip tilt adjustments
• CableTrac System provides a fast and effective way to route cables
• Swivel up to 90° left or right (depending upon screen size)
• Integrated lateral shift 6" left and right (ships shifted 2.5" to the left)
• Mounting guides provided for a hassle-free installation
• Q-Latch Mounting System secures flat panel to mount with a latching flag
• Screen can be installed in portrait or landscape orientation ( MAC400 accessory can be used to rotate without removing the screen)

Specifications:

• Depth from Wall*: 3.38" (86 mm)
• Extension: 24.88" (632 mm)
• Tilt: +5/-15°
• Roll: +/-2.5°
• Swivel: 90° left/right (depends on screen size)
• Lateral Shift: 6" left/right (152 mm left/right)
• Dimensions (HxWxD): 18" x 23.63" x 3.38" (457 x 600 x 86 mm)
• Weight Capacity: 125 lbs (57 kg)
• Color: Black
• Arm Channel Width: 0.63" (16 mm)
