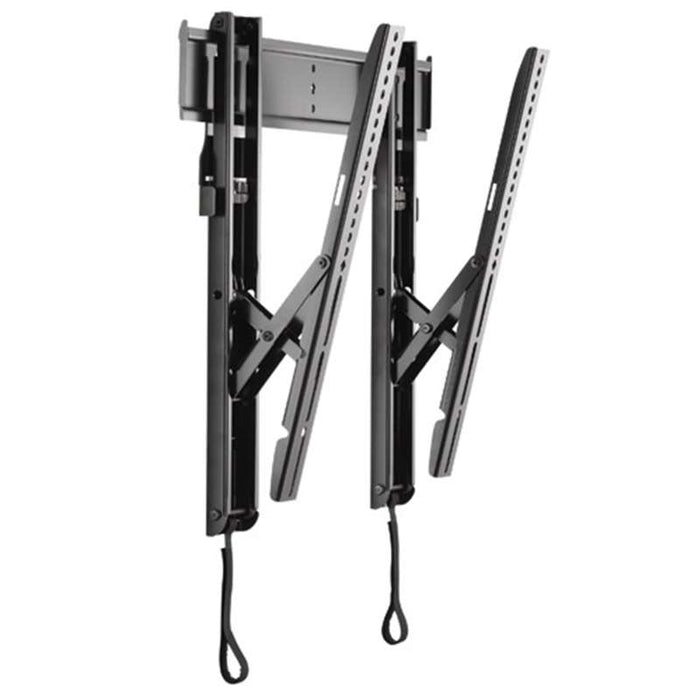

Chief LTTU Overview
The Thinstall Universal Flat Panel Tilt Wall Mount from Chief is designed for ultra-thin monitors, mounting them less than an inch from the wall and eliminating the eyesore of bulky mounting equipment. The mount places the screen nearly flush with the wall, adding to the aesthetics of your lobby, board room, or home.
Key Features
-
Designed specifically for and only compatible with new ultra-thin TVs 2" (51 mm) deep or less
-
Ultra low-profile design compliments ultra-thin flat panel TVs
-
Provides 12° of smooth, fingertip tilt
-
GlideLock provides tool-less latching for faster installation
-
Consists of one-piece steel bracket with two tilting interfaces
-
Each interface includes a sliding flag for increased security
-
Features a cable stand and bottom pullout for cable access
-
Provides lateral shift for increased flexibility
-
Can be installed in landscape mode only
-
Certifications: UL Listed
-
Color: Black
-
Lateral Shift: Depends on mounting pattern of screen
-
Maximum Screen Thickness: 2" (51 mm)
-
Minimum Depth: 0.75" (19.1mm)
-
Mounting Pattern Compatibility (Universal Versions)200 x 200mm - 800 x 500mm
-
Number Of Monitors1
-
Shipping Weight: 14.9 lbs (6.76 kg)
-
Solution Type: Universal
-
Tilt+ 0° , - 12°
-
Typical Screen Sizes: 32 - 65"
-
Wall Stud Compatibility In16, 20, 24
-
Weight Capacity:100 lbs (45.4 kg)
-
Orientation: Landscape
