Chief Large Fusion Fixed Wall Display Mount

Chief Large Fusion Fixed Wall Display Mount

by Chief
SKU: CHILSA1U

MSKU: LSA1U

In Stock: 27 Units Available

Sale Sale
$233.00
$233.00 - $233.00
$233.00
$186.40
$186.40 - $186.40
$186.40
Call to Order

Free shipping on all orders.

Typically ships in 2-4 days.

Specifications

Mount features: Fixed
Mount install: Wall
Mount type: Display
Orientation: Landscape
Taa: No
Use case: Business,education
Vesa compatible: Yes
Request a custom quote >

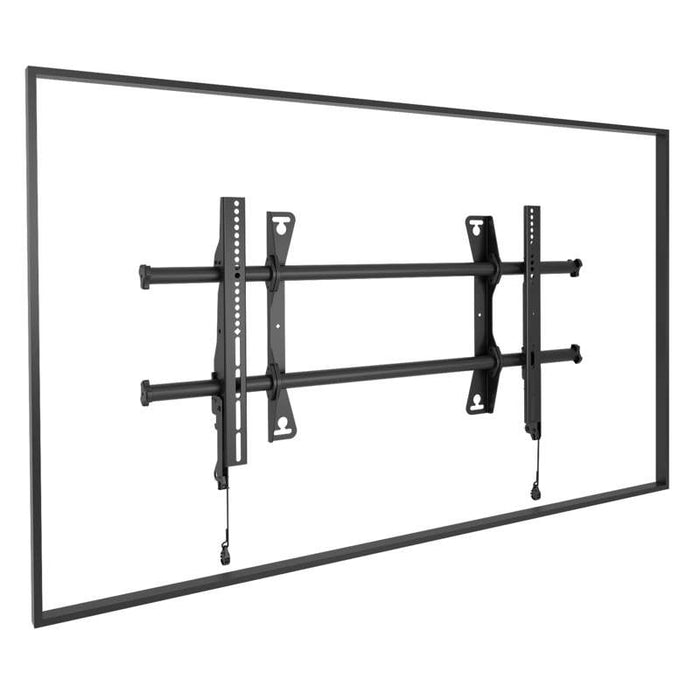

Large Fusion Fixed Wall Display Mount, #LSA1U

Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift and ClickConnect Latching.

New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.

Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

Key Features

  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
  • Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centering
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps
  • Integrated Security
  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
  • Easy Open box with less waste to throw away

Specifications

  • Certifications: UL Listed, OSHPD Approved, TÜV Certified
  • Color: Black
  • Lateral Shift: 17.4" (441 mm)
  • Minimum Depth: 2" (51 mm)
  • Mounting Pattern Compatibility (Universal Versions): 100 x 100 mm - 870 x 500 mm
  • Overall Dimensions (H x W x D): 20.50 x 34.75 x 2" (521 x 883 x 51 mm)
  • Shipping Weight: 7 kg
  • Solution Type: Universal
  • Typical Screen Sizes: 42 - 86"
  • Wall Stud Compatibility In: 16" - 32" (406 mm - 813 mm)
  • Weight Capacity: 200 lbs (90.7 kg)
  • Orientation: Landscape
