Chief 2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge

2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge

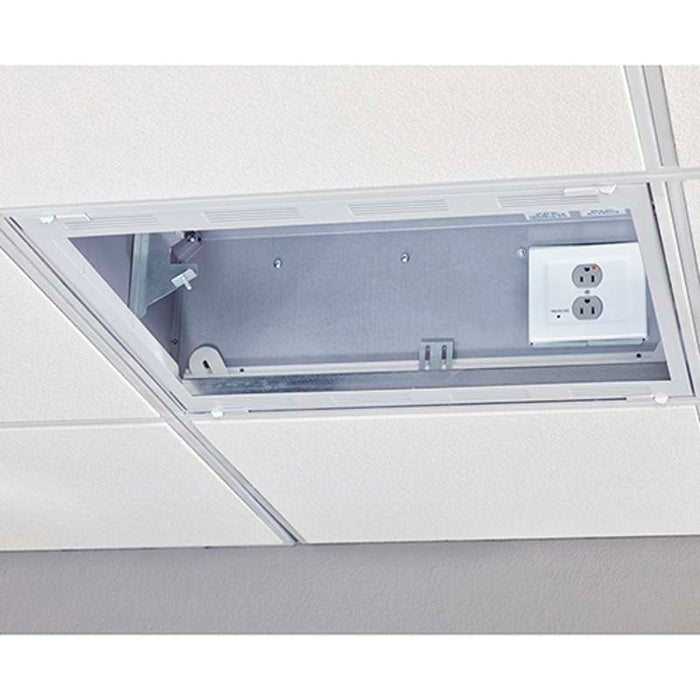

The CMS492P2 conceals AV equipment above a 2' X 2' ceiling tile to provide a clean professional look for classrooms and conference rooms.

Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

• Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
• Inside the box or facing the room
  • Up to 2 single gang or 1 dual gang outlet
  • 4 nested knockouts for 1-1/4"", 1"", & ½"" diameter conduit
• Built in ventilation
• AV tray supports a variety of AV components
  • Ships with 1 shelf, 2^nd shelf sold separately see CMSUNV2
  • 1 RU rack rail brackets sold separately, see CMS1RU
• Overall weight capacity 100 lbs (45 kg)
  • 50 lbs (22 kg) for projector ceiling plate
  • 25 lbs (11 kg) per shelf location
• Ships with speed connect installation hardware
• Lightweight construction, one man installation
• UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC
• Non-volatile spike protection with LED power indicator
• Non-sacrificial multi-stage technology
• Non-current limiting design passes full power on a regular circuit; reduntant protection circuits
• Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightening strikes and electronic noise events that can cause gear degradation and downtime
• TAA Compliant

Surge and Filter Module

• Non-volatile spike protection with LED power indicator
• Non-sacrificial multi-stage technology
• Non-current limiting design passes full power on a regular circuit; redundant protection circuits
• Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
• Line filter reduces common and differential mode noise by up to 40 dB
• Rated for 125V~, 60Hz, 15 A
• 1875 watt maximum
• Ferrite toroid based EMI Filter
• Withstand rating of 240 VAC continuous without damage or loss of protection

Specifications

Ceiling Tile Size : 2' x 2' (0.61 x 0.61m)
Depth : 23.7 in (60.1 cm)
Height : 8 in (20.3 cm)
Max Equipment Size : 7.61" x 19.25" x 20" (193 x 489 x 508 mm)
Overall Dimensions : 8" x 24.97" x 23.67" (203 x 634 x 601 mm)
Shipping Weight : 4.1 lbs (1.9 kg)
Weight Capacity : 100 lbs (45.4 kg)
Width : 25 in (63.4 cm)
Accessory Type : Component Storage
Accommodate Column Drop : No
Application : Ceiling
Color : White
Includes Power Outlet : Yes
Notes : Output: 15A, 1875 W continuous
Power Requirements : Power Consumption: >0.5 watt Type 3 Surge Protective Device (SPD) Voltage Protection Rating (VPR): 600V L-N
Receptacle Type : Two Surge and Filter
Special Features : Surge and Filtering
TAA Compliant : No
Certifications : TUV, UL Listed
