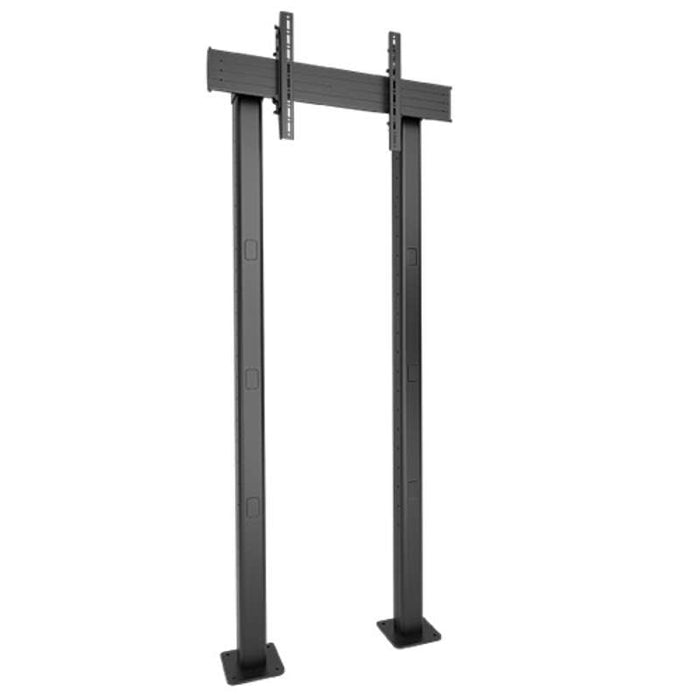

Fusion® Extra-Large Single Bolt-Down, Landscape
Chief's Fusion® Bolt-Down freestanding solution makes it possible to install extra large displays in prominent locations.
Screen array configuration: 1 screen.
Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion® Universal Back Covers.
- Works with displays up to 250 lbs (113.4 kg)
- Bolt-down solution allows for a permanent install
- Easily align displays with independent height, plumb and lateral shift adjustment
- Integrated cable management for a clean installation
- TAA Compliant
Dimensions & Measurements
- Center of Display To Floor Table Range: 82.38" (2092 mm) (maximum top) - 16.38" (416 mm) (minimum bottom)
- Depth: 7.5
- Height: 84.38
- Lateral Shift: Yes
- Manual Height Adjustment: Micro-adjustment up to 0.75" (19 mm) per screen
- Overall Dimensions: 84.38" x 36" x 7.5" (2143 x 914 x 191 mm)
- Plumb Adjustment: Micro-adjustment up to 0.75" (19 mm)
- Shipping Weight: 180 lbs (81.7 kg)
- Typical Screen Size: 55" - 100" (1397mm - 2540mm)
- Weight Capacity: 250 lbs (113.4 kg)
- Width: 36
Characteristics & Features
- Adjustability: Micro-Adjustable
- Application: Bolt-Down
- Array Configuration: 1
- Color: Black
- Number of Displays: 1
- Orientation: Landscape
- Solution Type: Universal
- Special Features: Multi-Display
- VESA Mounting Pattern: 100 mm x 100 mm – 900 mm x 400 mm
Certifications & Warranties
- Certifications: TAA, UL Listed
