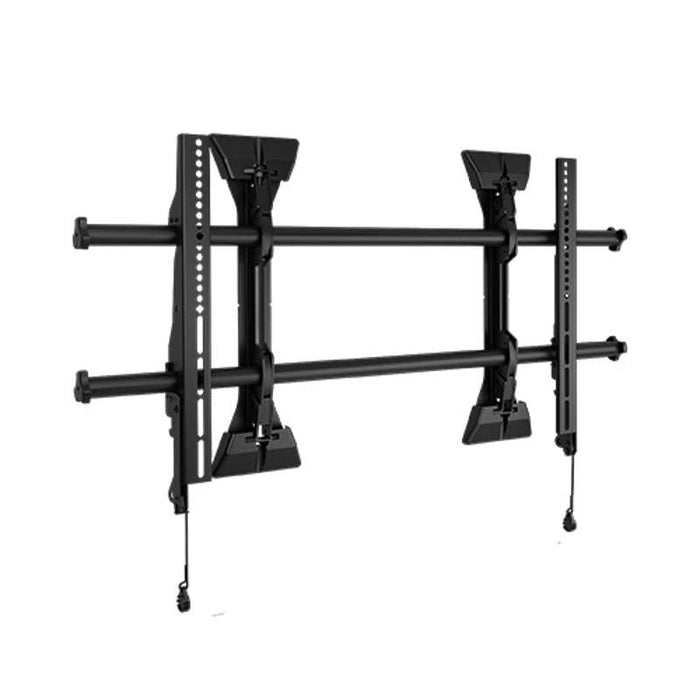

Large Fusion® Micro-Adjustable Fixed Wall Display Mount, TAA Compliant
Chief's upgraded fixed wall mounts are based on installer feedback and direct observations of installers in the field. Many new features join Fusion® favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching.
New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.
Installer-inspired, Fusion® fixed mounts solve top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
Centerless Shift provides post-installation lateral shift for limitless centering
Set screws keep the mount rigid, stable and secure throughout the life of the installation
ClickConnect offers an audible click when the screen safely engages with the mount
Built-in cable stand provides easy access under the screen
A full line of accessories can be installed with the mount and the entire unit can be adjusted together
Multiple installation options for various stud distances
Exclusive nesting spacers can be stacked to achieve any depth
Quick-Store Cords use magnets to easily store and access pull cords
Improved cable management with new end caps
Integrated Security
Ships with a custom hardware kit that can be hung from mount rails if installing in stages
Easy Open box with less waste to throw away
Dimensions & Measurements
- Depth: 2 in (5.1 cm)
- Height: 18.25 in (46.4 cm)
- Manual Height Adjustment: 1 in (25.4 mm)
- Minimum Depth: 2 in (5.1 cm)
- Overall Dimensions: 18.25" x 34.75" x 2" (464 x 883 x 51 mm)
- Shipping Weight: 22 lbs (10 kg)
- Typical Screen Size: 42"- 86" (1067mm - 2184mm)
- Weight Capacity: 200 lbs (90.7 kg)
- Width: 34.75 in (88.3 cm)
Characteristics & Features
- Adjustability: Fixed
- Height Adjustable
- Lateral Shift: Micro-Adjustable
- Application: Wall
- Color: Black
- Orientation: Landscape
- Solution Type: Universal
- VESA Mounting Pattern: 100 x
