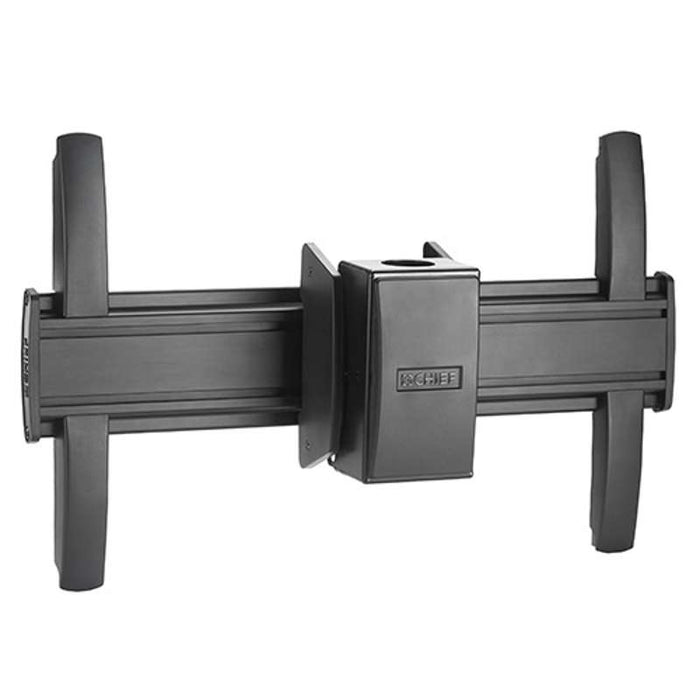

Fusion® Large Flat Panel Ceiling Mounts - LCM1U-G
Chief's Fusion® Flat Panel Ceiling Mounts are installer inspired and offer perfect display positioning and flexible adjustments for large flat panel screens. Great for digital signage installations.
Ceiling Plate and Extension Column are required and must be ordered separately
Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column system
See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
See CPA ceiling plates and CPA columns for pin connection compatibility
Stackable on a single pole when used with CPA columns
REPEATABILITY
Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
ACCESSIBILITY
Simple on/off connection for ease of installation and service.
CENTRIS® FINGERTIP TILT
Effortlessly adjust display using Centris fingertip tilt technology.
SIMPLE & SECURE
Tool free screen engagement with optional padlock security.
FLEXIBILITY
Mount swivels to any preferred viewing angle. Set screws lock in desired angle.
Stackable on a single pole when used with CPA columns
LCM1U-G is TAA-Compliant, to meet the needs of U.S. Government projects
Dimensions & Measurements
- Overall Dimensions: 30" x 10.5" x 6.75" (762 x 266.7 x 171.5 mm)
- Shipping Weight: 18 lbs (8.2 kg)
- Weight Capacity: 125 lbs (56.7 kg)
Characteristics & Features
- Adjustability: Tilt
- Adjustments: Roll: 3°
- Application: Ceiling
- Color: Black
- Number of Displays: 1
- Orientation: Landscape
- Tilt: +5° and -20°
- VESA Mounting Pattern: 200 x 200mm - 616 x 400mm
Certifications & Warranties
- Certifications: TAA, UL Listed
